Napoleon Vector Series Installation Manual

W415-2034 / A / 10.18.19
EN
18

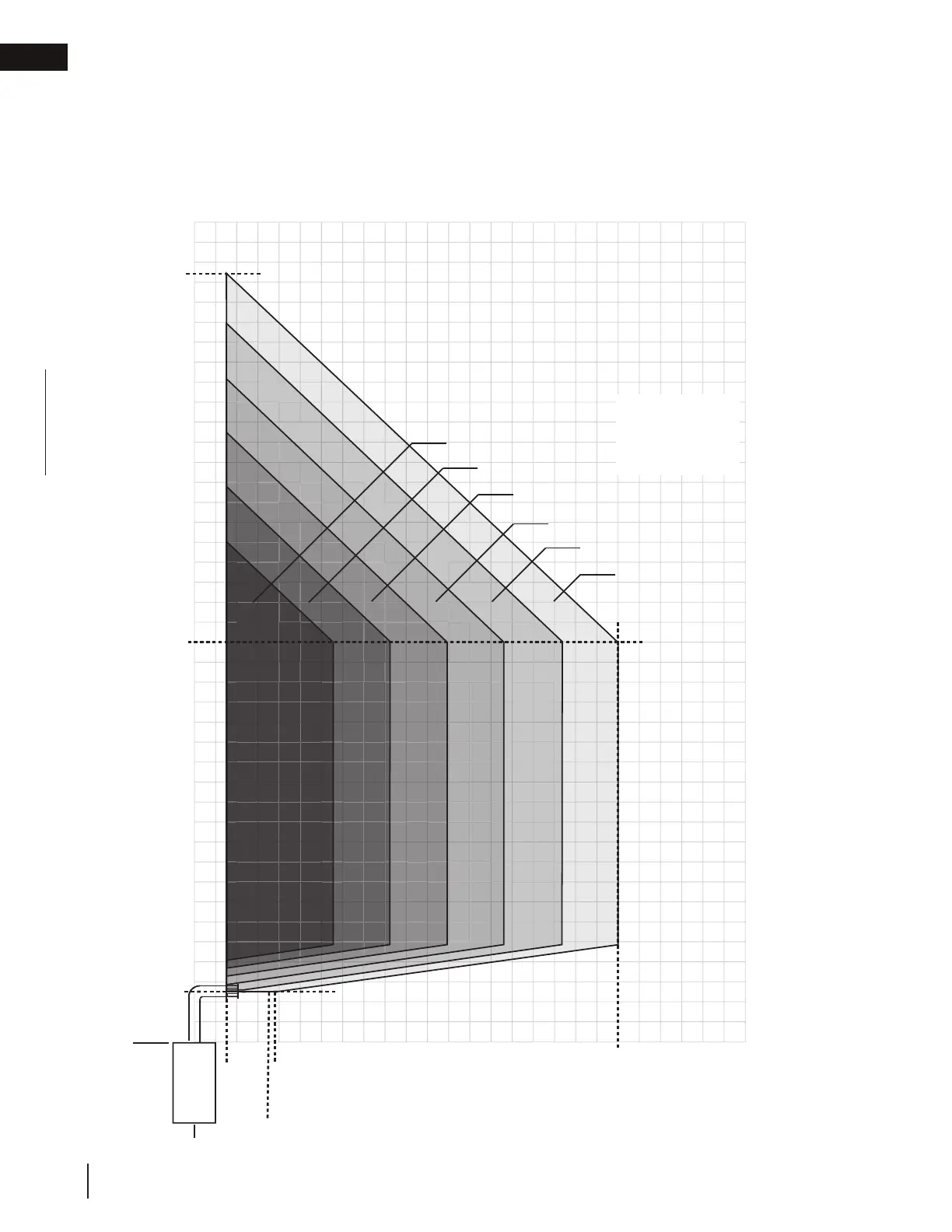

minimum venting requirements - natural gas
3.3 horizontal termination (natural gas)
0’
0’
Base of
air collar
10’
10’
15’
15’
20’
25’
20’
30’
40’
5’
3 7/8’ (46 1/2”) max.
(LV50-2 see-thru)
1 1/2’
(18”)
max.*
2 1/2’
(30”) min.*
38 1/2’
(462”)
5’
1 elbow zone
1-2 elbow zone
1-3 elbow zone
1-4 elbow zone
1-5 elbow zone
1-6 elbow zone
H
V
V+H ≤ 40 ft. (For longer vent runs, a power
vent is required).
H ≤ 20 ft.
V + H are measured from the centre of vent
elbows. Elbows are considered as 90º.
Two 45º elbows = One 90º elbow.
3 3/8’ (40”) max.
(LV38-1 see-thru)
LV38-1 / LV50-2 / LV62 / LV74 SINGLE-SIDED
&
LV38-1 / LV50-2 SEE-THRU (NATURAL GAS ONLY)
*single-sided models
Refer to appliance
specific GPV/
PVA instructions
for other venting
configurations.

Napoleon Vector Series Specifications

General

Vent Type	Direct Vent
Burner Material	Stainless Steel
Weight	Varies by model
Model	Vector Series
Fuel Type	Natural Gas or Propane
Viewing Area	Varies by model
Glass Type	Ceramic
Ignition System	Electronic Ignition
Dimensions	Varies by model
Warranty	Limited Lifetime Warranty
Remote Control	Standard (eFIRE remote)
