Napoleon Vector Series Installation Manual

W415-2034 / A / 10.18.19
90
FR

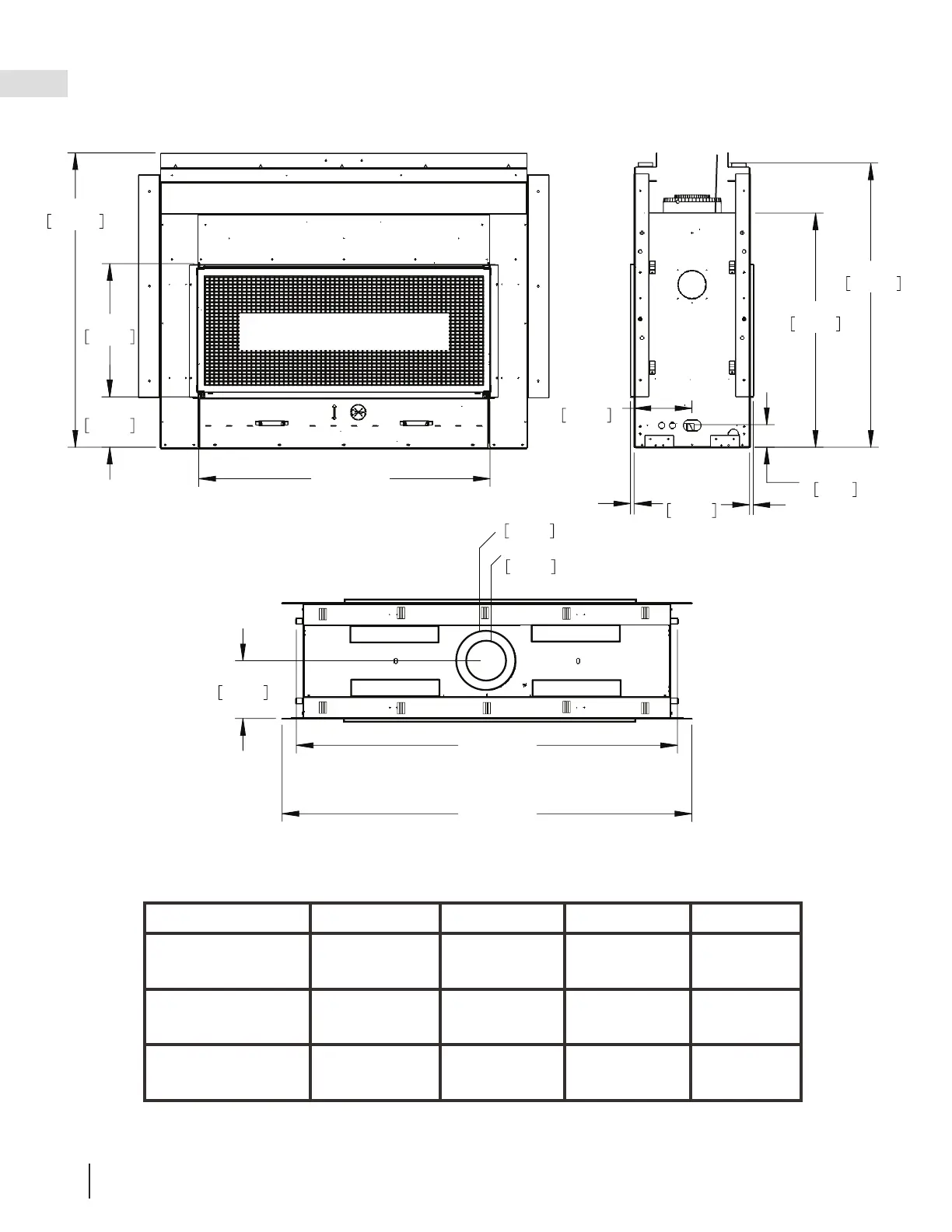

dimensions
LV38-1 LV50-2 LV62 LV74
A
(Bride de finition)
40 3/4”
(1035mm)
52 3/4”
(1340mm)
64 3/4”
(1645mm)
76 3/4”
(1949mm)
B
53 5/16”
(1354mm)
65 5/16”
(1659mm)
77 5/16”
(1964mm)
89 5/16”
(2269mm)
C
57 5/16”
(1456mm)
69 5/16”
(1761mm)
81 5/16”
(2065mm)
93 5/16”
(2370mm)
2.2 voir à travers
41 3/16"
1046mm
7 1/16"
179mm
18 5/8"
473mm
3 1/8"
80mm
32 3/4"
832mm
39 11/16"
1008mm
16 3/16"
411mm
8 1/16"
205mm
8 1/16"
205mm
Ø 8"
203mm
Ø 5"
127mm
1/2"
[12.7mm]
1/2"
[12.7mm]
A
B
C
ECRAN DE PROTECTION
Base du collier d'air
* La profondeur de la bride de finition (la bride de finition définit le périmètre de l’ouverture de la cheminée. Les
matériaux de charpente ou de finition NE JAMAIS empiété à l’intérieur de la bride de finition).

Napoleon Vector Series Specifications

General

Vent Type	Direct Vent
Burner Material	Stainless Steel
Weight	Varies by model
Model	Vector Series
Fuel Type	Natural Gas or Propane
Viewing Area	Varies by model
Glass Type	Ceramic
Ignition System	Electronic Ignition
Dimensions	Varies by model
Warranty	Limited Lifetime Warranty
Remote Control	Standard (eFIRE remote)
