fi nishing
1 1/2”
8”
2”
Gas Valve
11.0 fi nishing

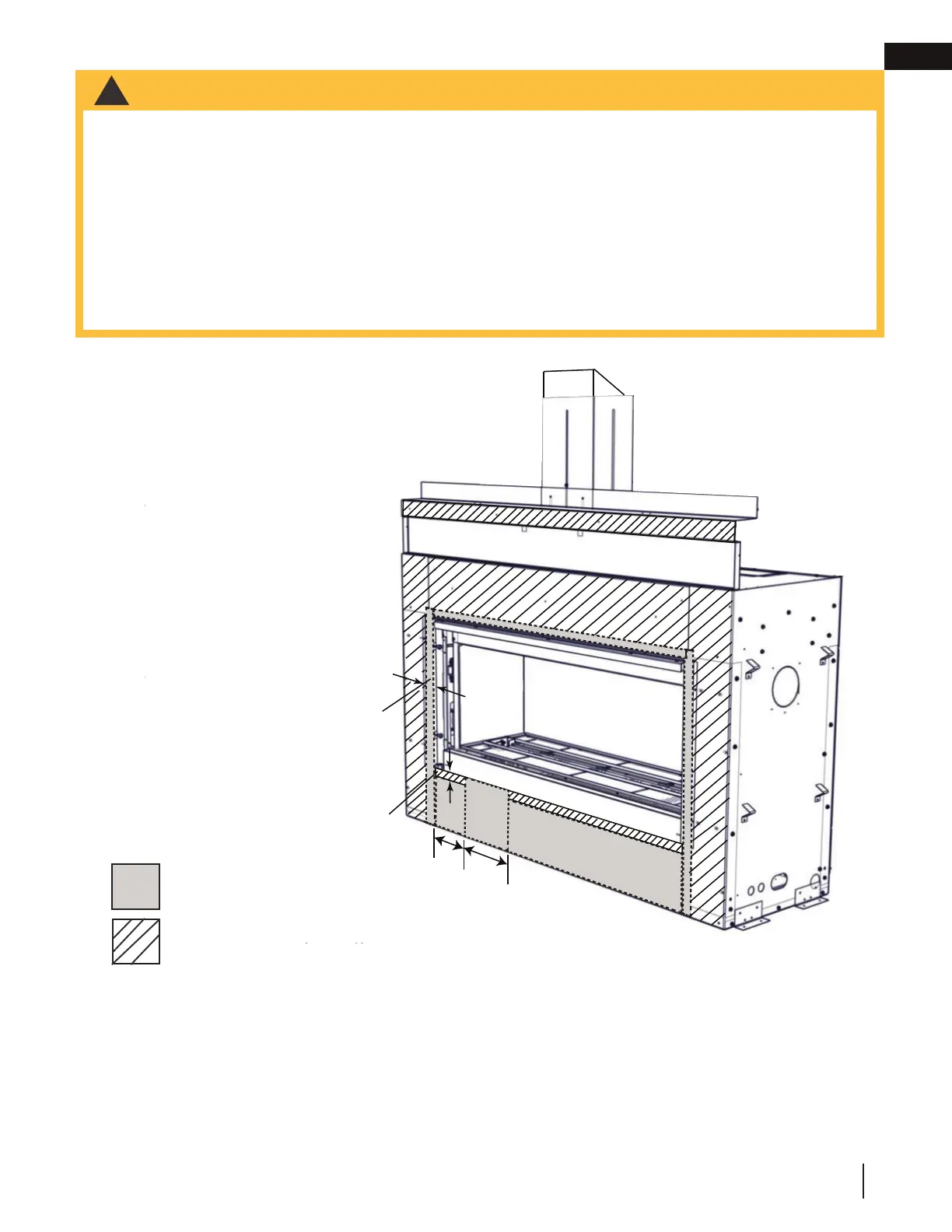

11.1 fastener placement restriction
No fasteners permitted with greater than 3/4”
penetration into appliance.
No fasteners permitted.
When securing non-combustibles, we suggest using high temperature construction adhesive within 2” (5.08cm)
above and to the sides from the appliance opening and 8” (20.3cm) below the appliance opening. DO NOT
SCREW IN THE RESTRICTED AREA AS THIS COULD DAMAGE THE INTERNAL COMPONENTS OF THE
APPLIANCE THAT CAN CAUSE INJURY OR DEATH.
This applies to both single-sided and see-thru appliances.
Maximum screw length to be used outside the restricted screw area is 3/4” greater than fi nishing material
thickness.(i.e. no fastener permitted that penetrates the appliance more than 3/4”
6”
!
WARNING
• Risk of fi re!
• Never obstruct the front opening of the appliance.
• The front of the appliance must be fi nished with any non-combustible materials such as brick, marble, granite,
etc., provided that these materials do not go below the specifi ed dimension, as illustrated.
• Do not strike, slam, or scratch. Do not operate appliance with glass removed, cracked, or scratched.
• Facing and/or fi nishing material must never overhang into the appliance opening.
• The glass door assembly is a safety device designed to pivot forward when relieving excess pressure that
might occur. Finishing or other materials must not be located in the opening surrounding the door as this will
interfere with the doors ability to relieve pressure.
• If applicable, drywall dust will penetrate into the blower bearings, causing irreparable damage. Care must
be taken to prevent drywall dust from coming into contact with the blower or its compartment. Any damage
resulting from this condition is not covered by the warranty policy.
