Native Instruments Maschine Reference Manual

MASCHINE 1.5 Reference Manual – 55
• If it is a Pattern, it will be loaded into the Pattern Slot currently in focus.
• If it is a FX Preset, it will be loaded into the FX Slot currently in focus.
• If it is a Sample, it will be loaded into the selected Zone of the Sound in focus replacing
the current one.
!
Since the FX Slots are not necessarily always in focus, you will have to make sure to
select one before being able to load a FX Preset.Alternatively, you can load Groups,
Sounds, Patterns, FX Presets and Samples into specic Slots or Tabs by dragging them from the
Browser and dropping them on the desired location.
3.1.6 Locating missing Samples
If you are loading a MASCHINE Project and the referenced samples cannot be found for any
reason, a dialog in which you can locate the missing samples will open.

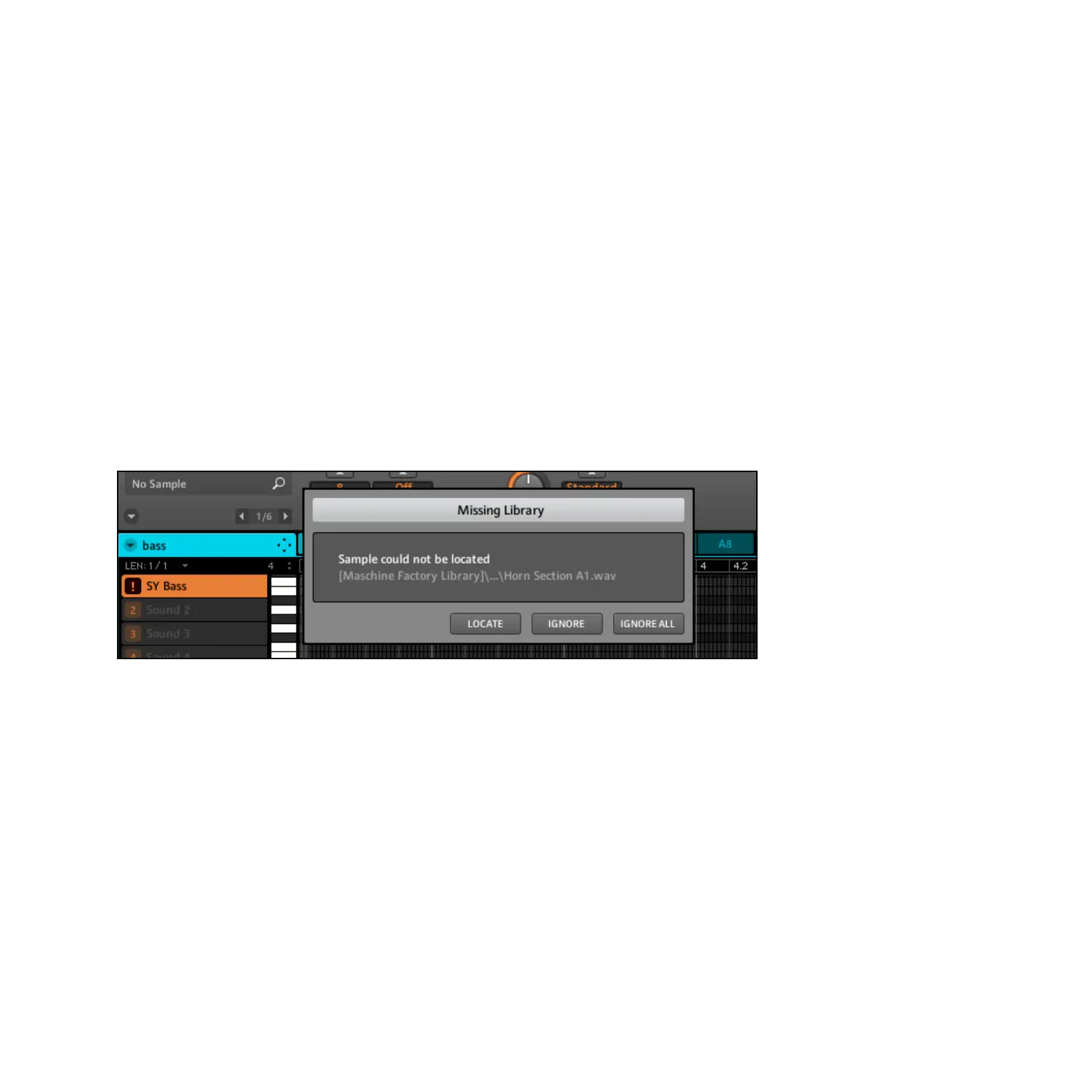

The Missing Library Dialog allows you to locate missing samples
Sounds and Groups referencing missing samples are marked with an exclamation mark.
%
You can open the Missing Library dialog manually from the MASCHINE plug-in Menu.
The Purge Missing Samples and the Find Missing Samples menu entries only show up
in the File Menu when sample references cannot be resolved.

Native Instruments Maschine Specifications

General

Weight	4.85 lbs (2.2 kg)
Pads	16 velocity-sensitive pads with aftertouch
Connectivity	USB, MIDI In/Out
Software	Maschine Software
Compatibility	Mac and PC
Power Supply	USB powered
Audio Interface	No built-in audio interface
Sequencer	Yes, pattern-based sequencer
Sampling	Yes, integrated sampler
Effects	Yes, includes a variety of effects
Encoders	8 knobs with LED ring indicators
DAW Integration	Yes, works as a plugin within most major DAWs
