MASCHINE 1.5 Reference Manual – 95
As soon as you select MIDI Learn, a white dot starts to ash until the software receives an
incoming MIDI CC:

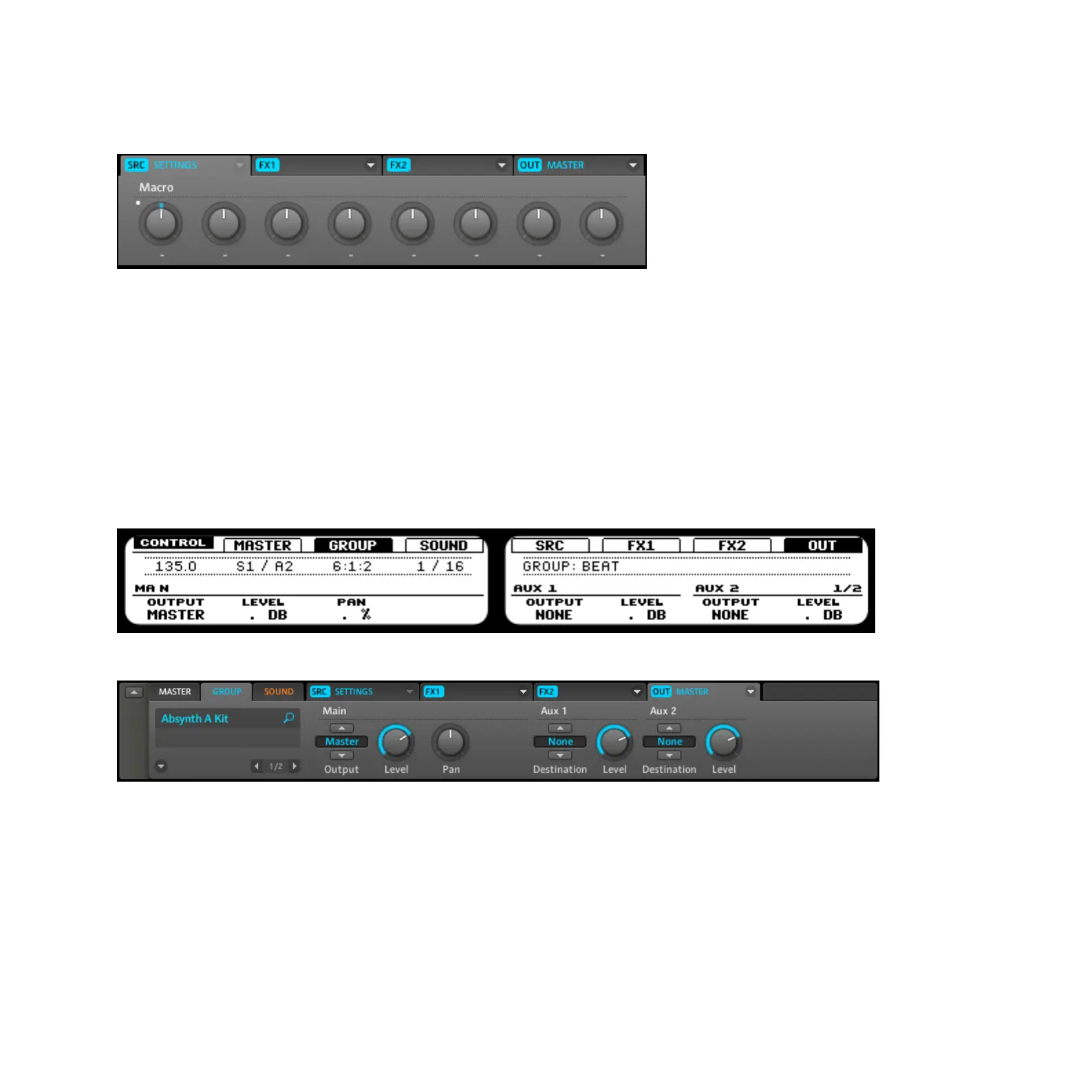

The white dot next to the Macro Control
→ When the MIDI CC has been received, the white dot will stop ashing.
5.2 The Group Out Tab Parameters
5.2.1 Page 1: Routing, Volume and Pan
Page 1 of 2 from the Group Out Tab Parameters on the hardware
Page 1 of 2 from the Group Out Tab Parameters on the software

Native Instruments Maschine Specifications

General

Weight	4.85 lbs (2.2 kg)
Pads	16 velocity-sensitive pads with aftertouch
Connectivity	USB, MIDI In/Out
Software	Maschine Software
Compatibility	Mac and PC
Power Supply	USB powered
Audio Interface	No built-in audio interface
Sequencer	Yes, pattern-based sequencer
Sampling	Yes, integrated sampler
Effects	Yes, includes a variety of effects
Encoders	8 knobs with LED ring indicators
DAW Integration	Yes, works as a plugin within most major DAWs
