NetApp E5700 - Page 10

1
Controller canister
2
Cam handle

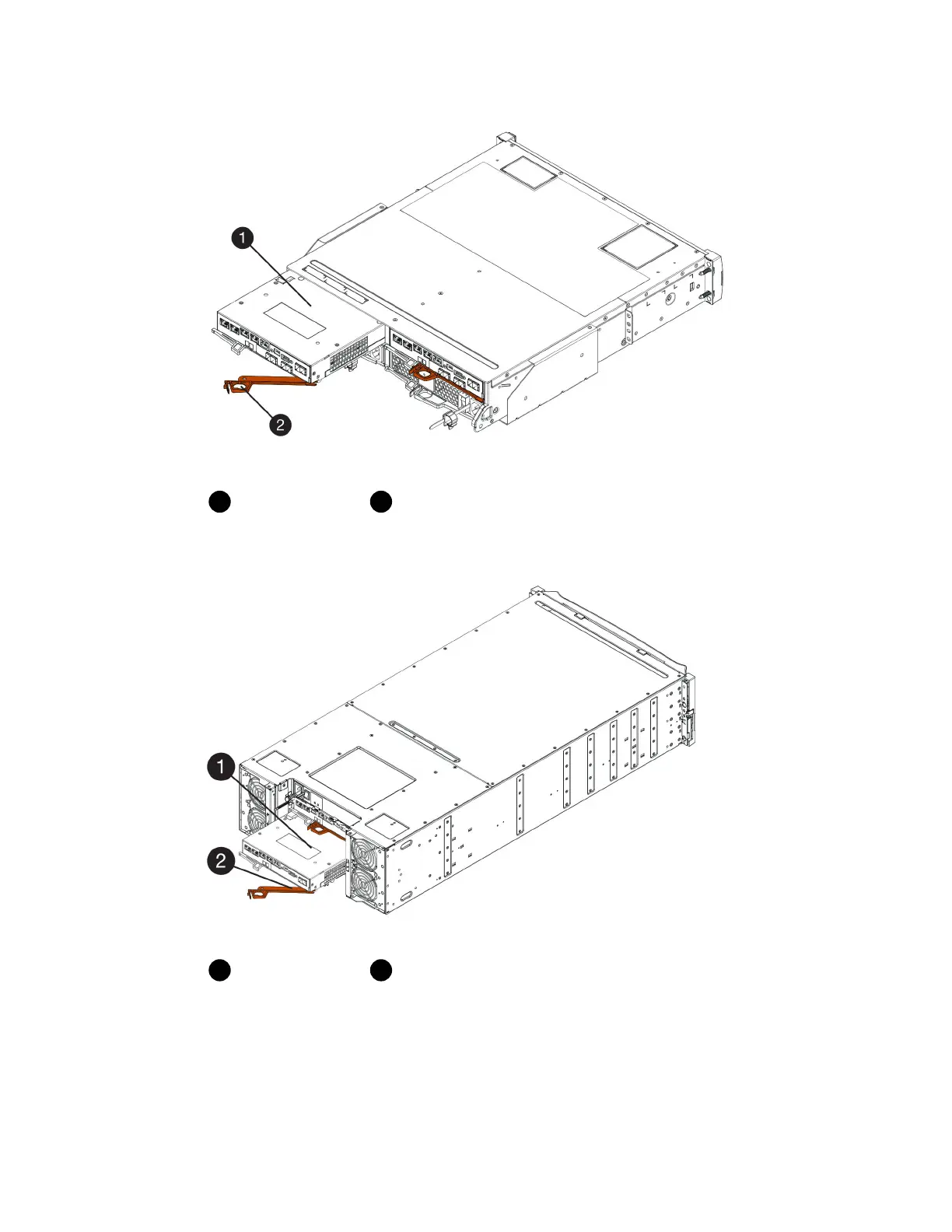

The following figure is an example of an E5760 controller shelf:
1
Controller canister
2
Cam handle
7. Using two hands and the cam handle, slide the controller canister out of the shelf.
Attention: Always use two hands to support the weight of a controller canister.
If you are removing the controller canister from an E5724 controller shelf, a flap swings into
place to block the empty bay, helping to maintain air flow and cooling.
8. Turn the controller canister over, so that the removable cover faces up.
9. Place the controller canister on a flat, static-free surface.
