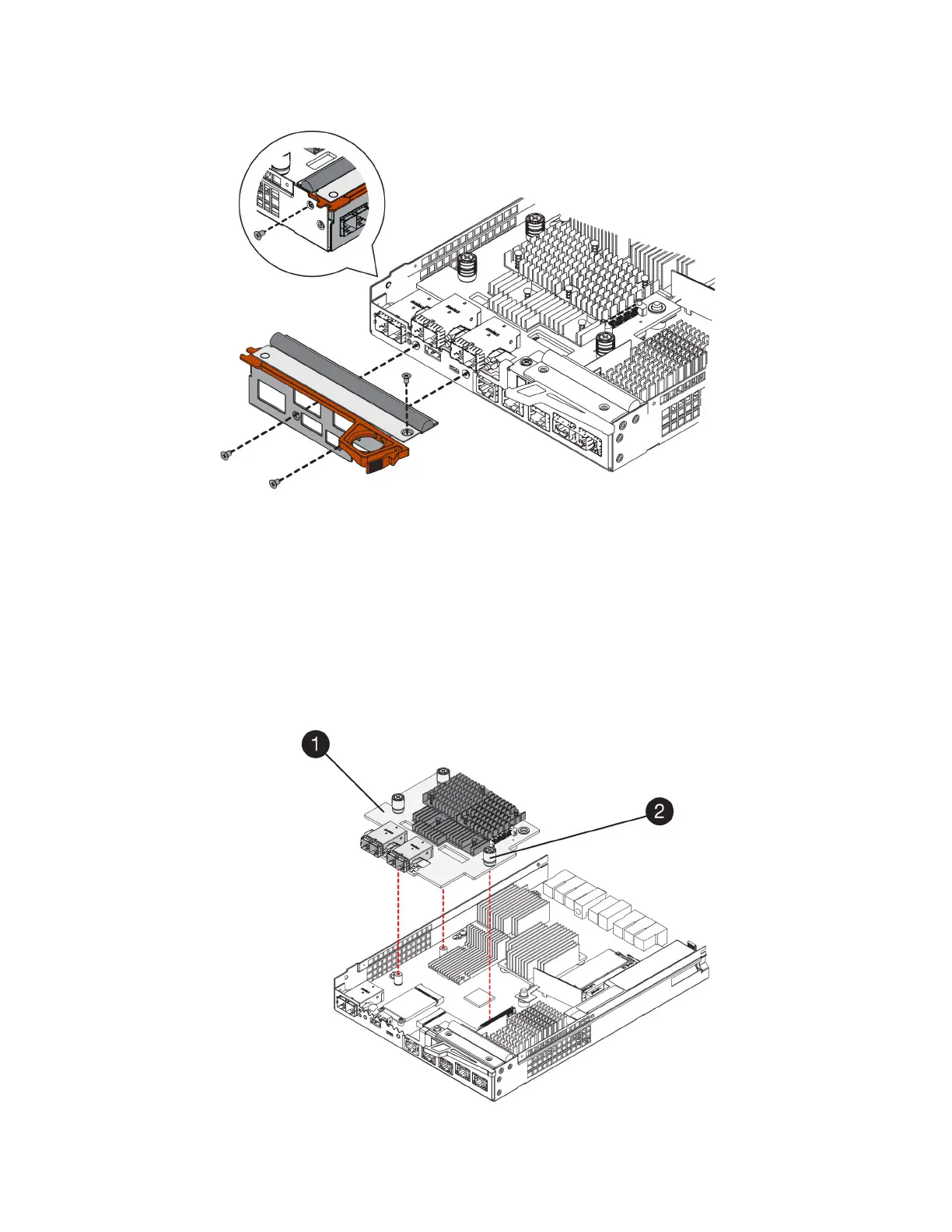

4. Remove the HIC faceplate.
5. Using your fingers or a Phillips screwdriver, loosen the three thumbscrews that secure the HIC to
the controller card.
6. Carefully detach the HIC from the controller card by lifting the card up and sliding it back.
Attention: Be careful not to scratch or bump the components on the bottom of the HIC or on
the top of the controller card.
100
| Maintaining E5700 Hardware
