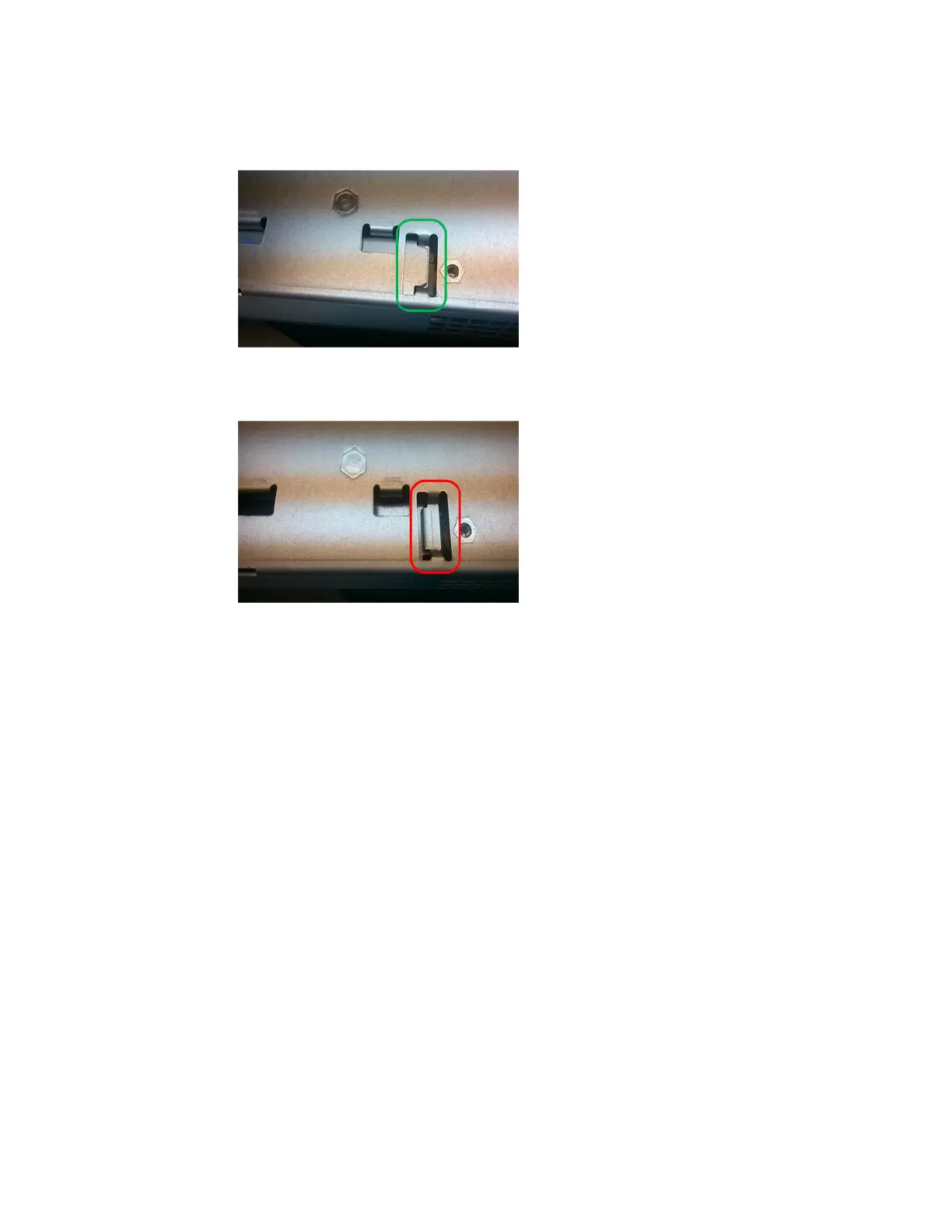

• Correct – The battery's metal flange is completely inserted in the slot on the
controller:
•
Incorrect – The battery's metal flange is not inserted into the slot on the controller:
After you finish
Go to
Step 2: Re-install controller canister
on page 14.
Step 2: Re-install controller canister
Reinstall the controller canister into the controller shelf after installing the new battery.
Steps
1. You reinstall the cover on the controller canister by sliding the cover from back to front until the
button clicks.
2. Turn the controller canister over, so that the removable cover faces down.
3. With the cam handle in the open position, slide the controller canister all the way into the
controller shelf.
14 | Maintaining E5700 Hardware
