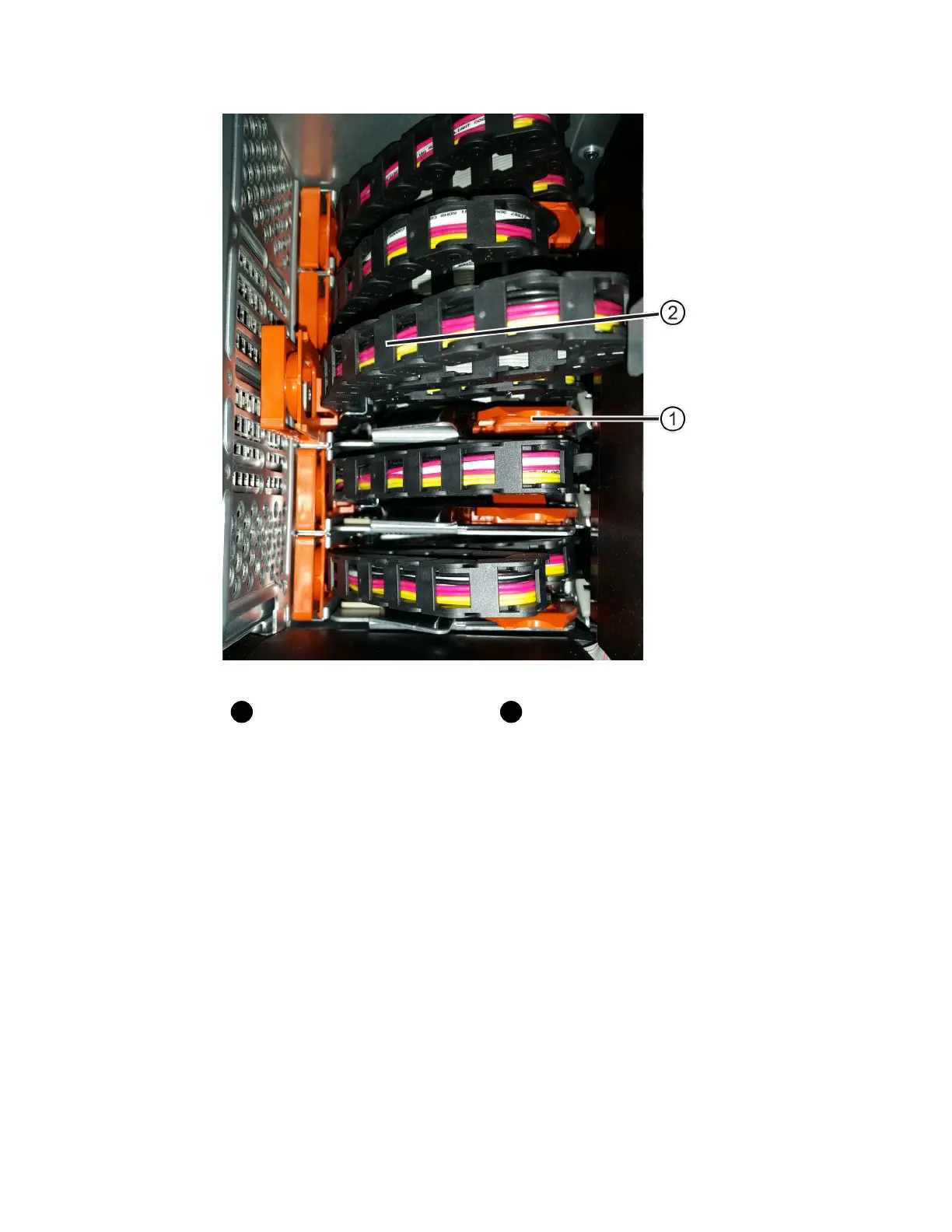

Orange ring on horizontal guide rail
Cable chain, partially removed
b. To unlatch the cable chain, gently insert your finger into the orange ring and push down.
The figure shows the orange ring on the horizontal guide rail (see item 1 in the figure above),
as it is pushed down so that the rest of the cable chain can be pulled out of the enclosure.
c. Pull your finger toward you to unplug the cable chain.
6. Carefully pull the entire cable chain out of the drive shelf.
7. Replace the right fan canister:
a. Slide the fan canister all the way into the shelf.
b. Move the fan canister handle until it latches with the orange tab.
c. If the drive shelf is receiving power, confirm that the amber Attention LED on the back of the
fan is not illuminated and that air is coming out the back of the fan.
The LED could remain on for as long as a minute after you reinstall the fan while both fans
settle into the correct speed.
If the power is off, the fans do not run and the LED is not on.
8. From the back of the drive shelf, remove the left fan canister.
9. If the drive shelf is receiving power, ensure that the right fan goes to its maximum speed.
