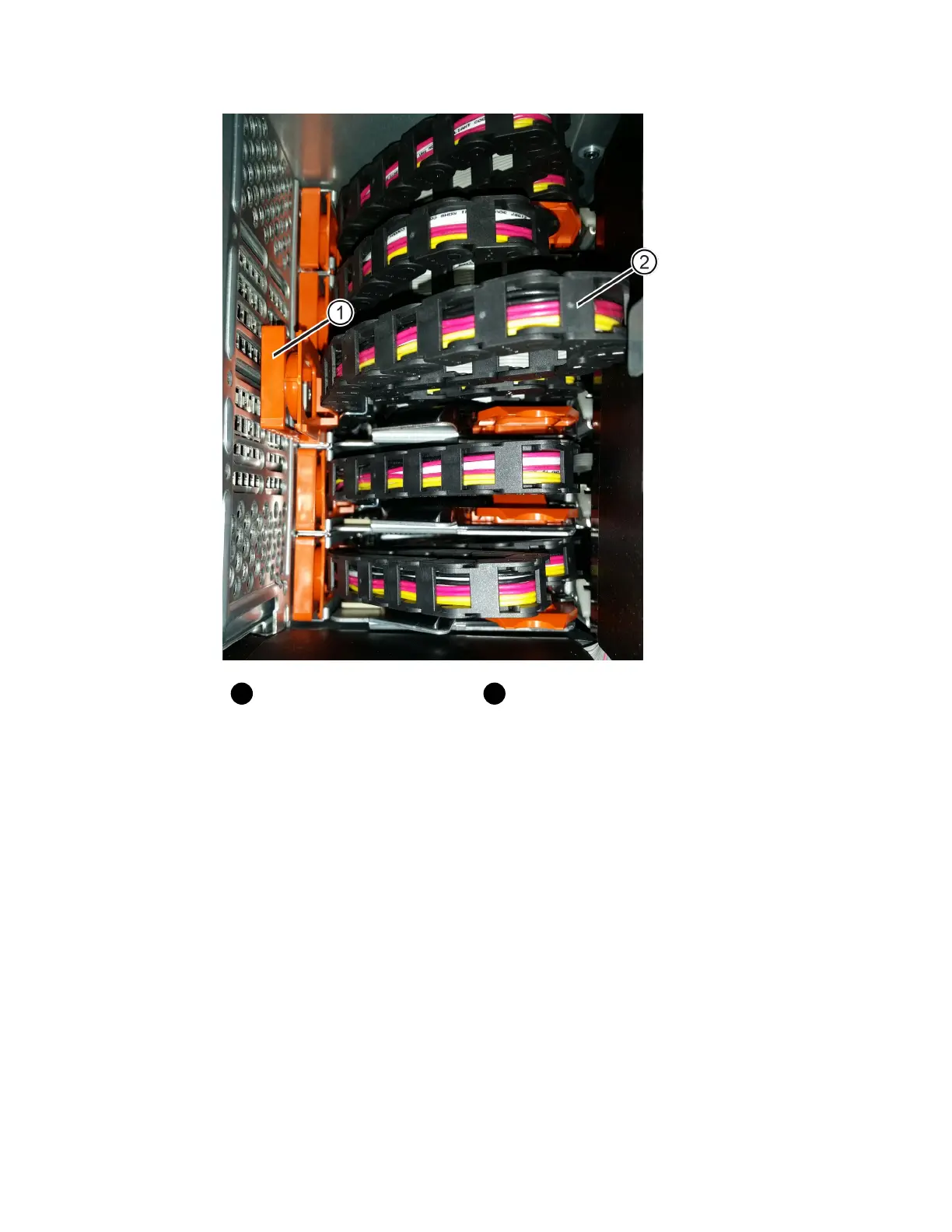

Orange ring on vertical guide rail
Cable chain, partially removed
b. To unlatch the cable chain, insert your finger into the orange ring and press towards the
middle of the system.
c. To unplug the cable chain, carefully pull your finger toward you approximately 1 inch (2.5
cm). Leave the cable chain connector within the vertical guide rail. (If the drive tray is
powered on, do not allow the cable chain connector to touch the metal chassis.)
5. Disconnect the other end of the cable chain:
a. Using a flashlight, locate the orange ring on the end of the cable chain that is attached to the
horizontal guide rail in the enclosure.
The figure shows the horizontal connector on the right and the cable chain disconnected and
partially pulled out on the left side.
Drives |
69
