NETGEAR GS308T User Manual

Configure Switching
167
S350 Series 8-Port Gigabit Ethernet Smart Managed Pro Switch Models GS308T and GS310TP

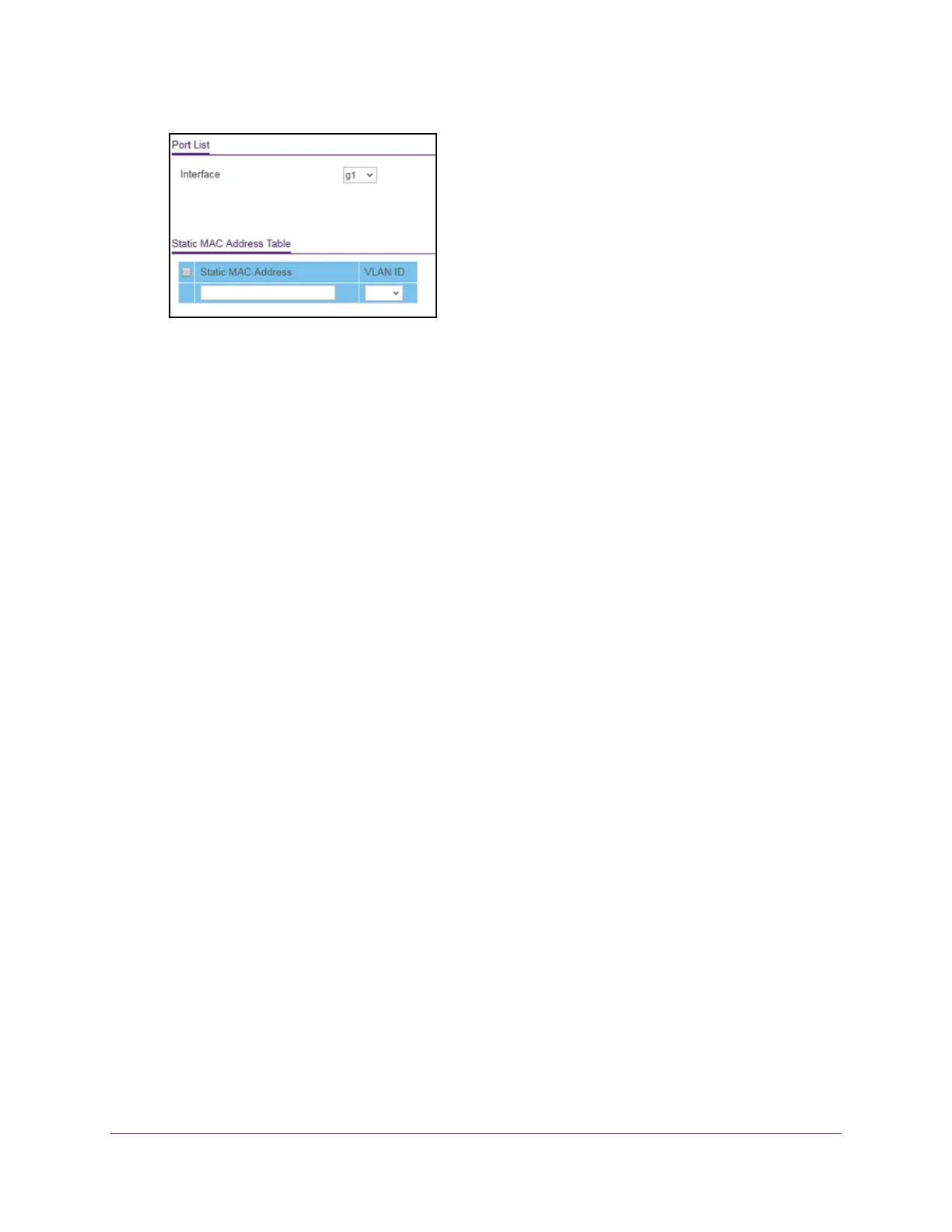

6. From the Interface menu, select the interface.
7. In the Static MAC
Address field, enter the static MAC address that you want to add.
8. From the VLAN ID menu, select the VLAN ID that must be associated with the MAC
address.
9. Click the Add button.
The static MAC address is added to the switch.
Configure Layer 2 Loop Protection
Loops inside a network are costly because they consume resources and reduce the
performance of the network. Detecting loops manually can be cumbersome.
The switch can automatically identify loops in the network. You can enable loop protection
per port or globally.
If loop protection is enabled, the switch sends predefined PDU packets to a Layer 2
broadcast destination address (FF:FF:FF:FF:FF:FF) on all ports for which the feature is
enabled. You can selectively disable PDU packet transmission for loop protection on specific
ports even while port loop protection is enabled. If the switch receives a packet with the
previously mentioned broadcast destination address, the source MAC address in the packet
is compared with the MAC address of the switch. If the MAC address does not match, the
packet is forwarded to all ports that are members of the same VLAN, just like any other
broadcast packet. The packet is not forwarded to the port from which it was received.
If the source MAC address matches the MAC address of the switch, the switch can perform
one of the following actions, depending on how you configure the action:
• The port is shut down.
• A log message is generated. (If a syslog server is configured, the log message can be
sent to the syslog server
.)
• The port is shut down and a log message is generated.
Loop protection is not intended for ports that serve as uplinks between spanning tree–aware
switches. It is intended for unmanaged switches that drop spanning tree BPDUs. Loop
protection detects physical and logical loops between Ethernet ports on a device.
You must
enable loop protection globally before you can enable and configure it at the interface level.

NETGEAR GS308T Specifications

General

Switch type	Managed
Switch layer	L2
Quality of Service (QoS) support	Yes
Master (outer) case width	214 mm
Master (outer) case height	312 mm
Master (outer) case length	474 mm
Master (outer) case weight	6110 g
Harmonized System (HS) code	85176990
Quantity per master (outer) case	6 pc(s)
Package type	Box
Package depth	270 mm
Package width	226 mm
Package height	64 mm
Package weight	750 g
Cables included	AC
Power connector	DC-in jack
Installed SFP modules quantity	0
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity	8
Stackable	No
Product color	Black
LED indicators	Activity, Link, Power
Country of origin	China
10G support	-
Multicast protocols	IGMP
Input current	1 A
DC input voltage	12 V
MAC address table	- entries
