NETGEAR GS308T User Manual

Configure System Information
69
S350 Series 8-Port Gigabit Ethernet Smart Managed Pro Switch Models GS308T and GS310TP
Configure SNMP
You can configure SNMP settings for SNMPv1/v2 and SNMPv3. The switch software
supports the configuration of SNMP groups and users that can manage traps that the SNMP
agent generates.
The switch uses both standard public MIBs for standard functionality and private MIBs that
support additional switch functionality
. All private MIBs begin with a hyphen (-) prefix. The
main object for interface configuration is in -SWITCHING-MIB, which is a private MIB. Some
interface configurations also involve objects in the public MIB, IF-MIB.
Configure the SNMPv1/v2 Community
Only the communities that you define can access to the switch using the SNMP V1 and
SNMP V2 protocols. Only those communities with read/write level access can be used to
change the configuration using SNMP.
Add an SNMP Community:
 To add an SNMP community:
1. Connect your computer to the same network as the switch.
You can use a WiFi or wired connection to connect your computer to the network, or
connect directly to a switch that is of
f-network using an Ethernet cable.
2. Launch a web browser.
3. In the address field of your web browser
, enter the IP address of the switch.
If you do not know the IP address of the switch, see Change the Default IP Address of the
Switch on page 11.
Your web browser might display a security message, which you can ignore. For more
information, see Access the Local Browser Interface on page 19.
The login window opens.
4. Enter the switch’
s password in the Password field.
The default password is password.
The System Information page displays.

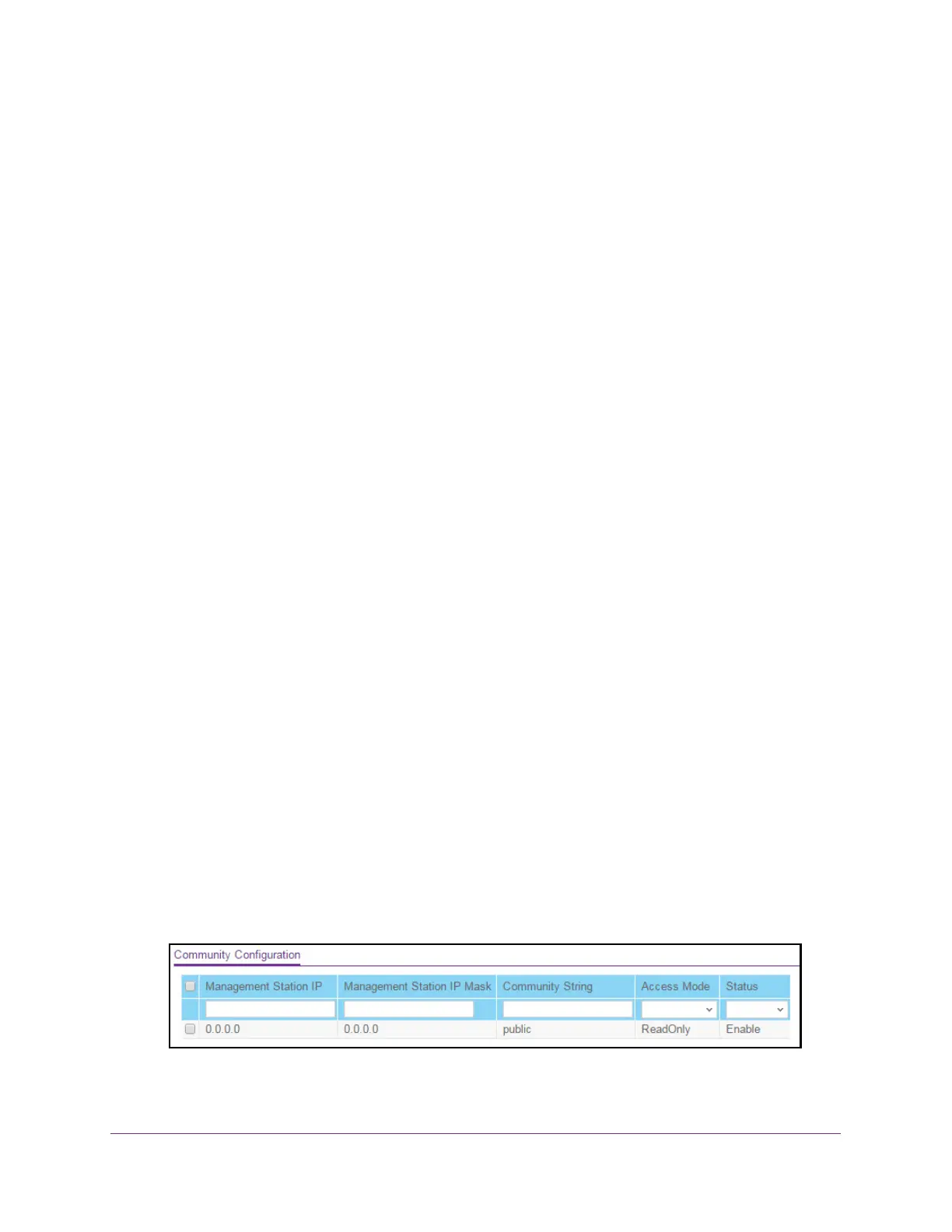

5. Select System > SNMP > SNMP V1/V2 > Community Configuration.
6. In the Management Station IP field, specify the IP address of the management station.

NETGEAR GS308T Specifications

General

Switch type	Managed
Switch layer	L2
Quality of Service (QoS) support	Yes
Master (outer) case width	214 mm
Master (outer) case height	312 mm
Master (outer) case length	474 mm
Master (outer) case weight	6110 g
Harmonized System (HS) code	85176990
Quantity per master (outer) case	6 pc(s)
Package type	Box
Package depth	270 mm
Package width	226 mm
Package height	64 mm
Package weight	750 g
Cables included	AC
Power connector	DC-in jack
Installed SFP modules quantity	0
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity	8
Stackable	No
Product color	Black
LED indicators	Activity, Link, Power
Country of origin	China
10G support	-
Multicast protocols	IGMP
Input current	1 A
DC input voltage	12 V
MAC address table	- entries
