NETGEAR GS308T User Manual

Manage Device Security
250
S350 Series 8-Port Gigabit Ethernet Smart Managed Pro Switch Models GS308T and GS310TP
ACL Wizard Example

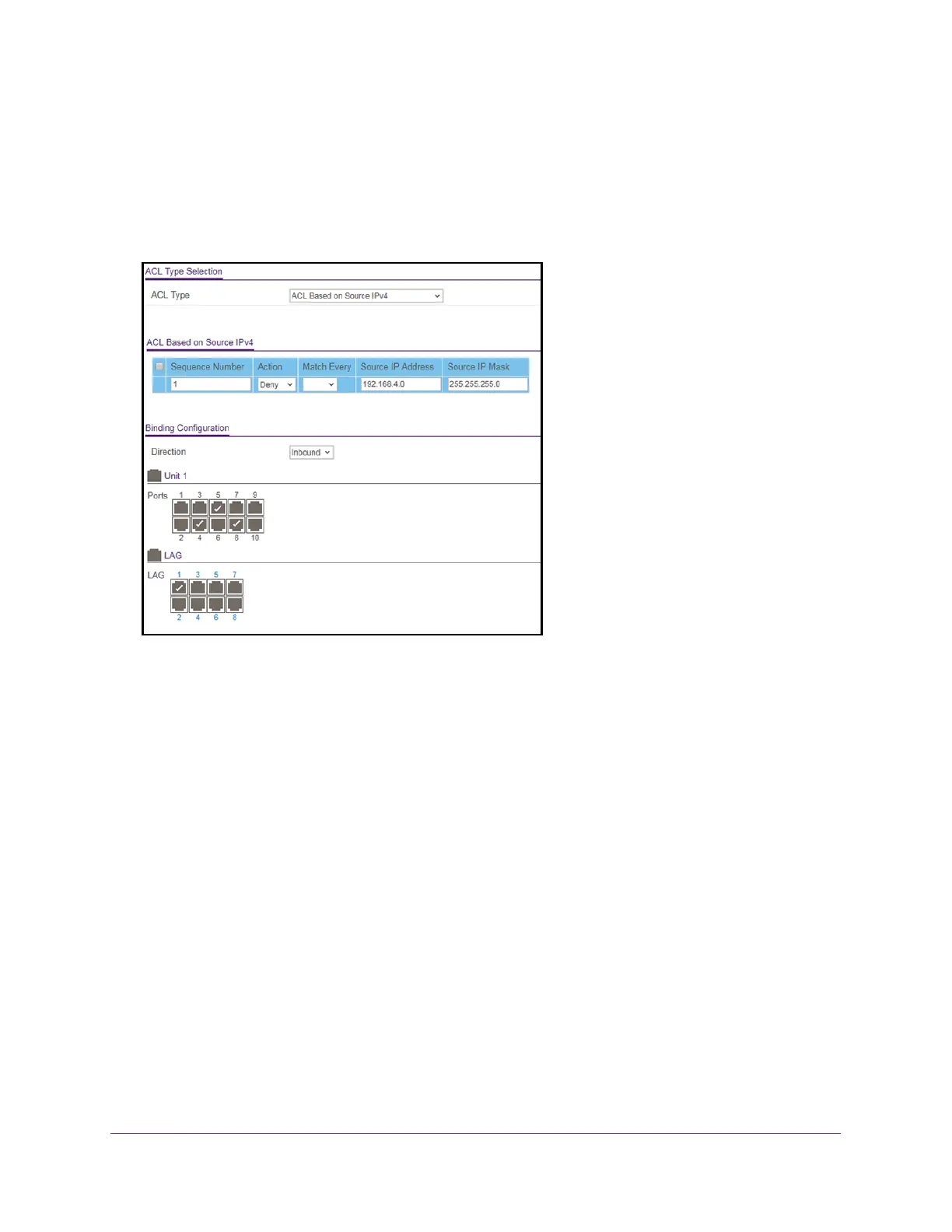

In the following figure, the ACL rule is configured to check for packet matches on ports 4, 5,
and 9 and on LAG 1. Only the Inbound option is valid. Packets that include a source address
in the 192.168.4.0/16 network are permitted to be forwarded by the interfaces. All other
packets are dropped because every ACL includes an implicit deny all rule as the last rule.
The previous figure shows a sample for model GS310TP.
For information about the ACL Wizard, see Use the ACL Wizard to Create a Simple ACL on
page 245.
Configure a Basic MAC ACL
A MAC ACL consists of a set of rules that are matched sequentially against a packet. When a
packet meets the match criteria of a rule, the specified rule action (Permit or Deny) is taken,
and the additional rules are not checked for a match.
Multiple steps are involved in defining a MAC ACL and applying it to the switch:
1. Create a MAC ACL ID (see Add a MAC ACL on page 251).
2. Create a MAC rule (see Configure MAC ACL Rules on page 253).
3. Associate the MAC
ACL with one or more interfaces (see Configure MAC Bindings on
page 257).
You can view or delete MAC ACL configurations in the MAC Binding table (see View or
Delete MAC ACL Bindings in the MAC Binding Table on page 258.

NETGEAR GS308T Specifications

General

Switch type	Managed
Switch layer	L2
Quality of Service (QoS) support	Yes
Master (outer) case width	214 mm
Master (outer) case height	312 mm
Master (outer) case length	474 mm
Master (outer) case weight	6110 g
Harmonized System (HS) code	85176990
Quantity per master (outer) case	6 pc(s)
Package type	Box
Package depth	270 mm
Package width	226 mm
Package height	64 mm
Package weight	750 g
Cables included	AC
Power connector	DC-in jack
Installed SFP modules quantity	0
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity	8
Stackable	No
Product color	Black
LED indicators	Activity, Link, Power
Country of origin	China
10G support	-
Multicast protocols	IGMP
Input current	1 A
DC input voltage	12 V
MAC address table	- entries
