NETGEAR GS308T User Manual

Configure Switching
103
S350 Series 8-Port Gigabit Ethernet Smart Managed Pro Switch Models GS308T and GS310TP
Configure the Port Settings and Maximum Frame Size
You can view, configure, and monitor the physical port information for the ports (that is, the
physical interfaces) on the switch.
 To configure the port settings and maximum frame size:
1. Connect your computer to the same network as the switch.
You can use a WiFi or wired connection to connect your computer to the network, or
connect directly to a switch that is of
f-network using an Ethernet cable.
2. Launch a web browser.
3. In the address field of your web browser
, enter the IP address of the switch.
If you do not know the IP address of the switch, see Change the Default IP Address of the
Switch on page 11.
Your web browser might display a security message, which you can ignore. For more
information, see Access the Local Browser Interface on page 19.
The login window opens.
4. Enter the switch’
s password in the Password field.
The default password is password.
The System Information page displays.

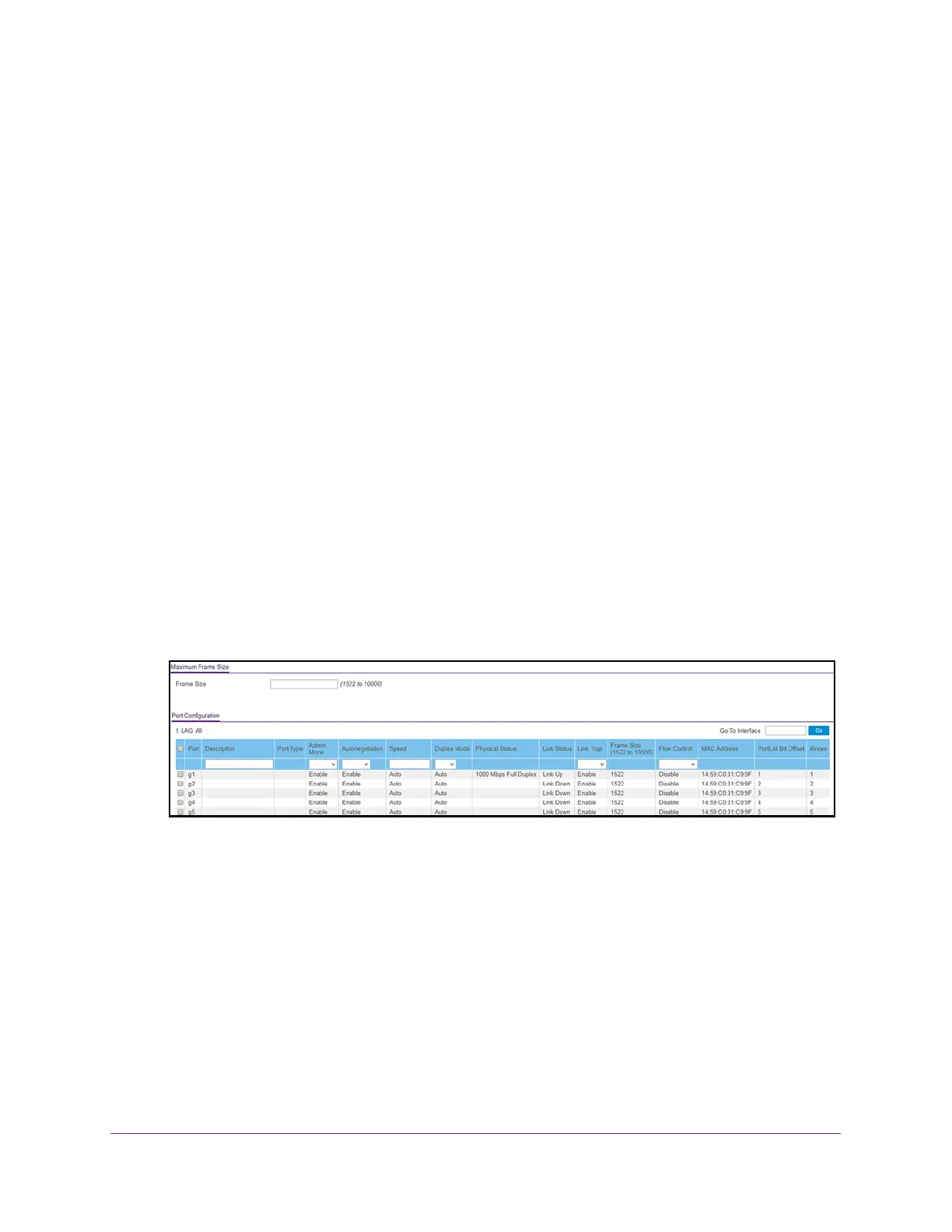

5. Select Switching > Ports > Port Configuration.
6. In the Frame Size field, specify the maximum Ethernet frame size that each interface can
support.
The frame size includes the Ethernet header, CRC, and payload. The range is 1522 to
10000.
The default maximum frame size is 1522.
7. Select the check box to the left of the Port column to specify the interface for which data is
to be displayed or configured.
To select an interface, you can also enter the interface number in the Go T
o Interface
field and click the Go button.
8. In the Description field, enter the description string to be attached to a port.
The string can be up to 64 characters in length.

NETGEAR GS308T Specifications

General

Switch type	Managed
Switch layer	L2
Quality of Service (QoS) support	Yes
Master (outer) case width	214 mm
Master (outer) case height	312 mm
Master (outer) case length	474 mm
Master (outer) case weight	6110 g
Harmonized System (HS) code	85176990
Quantity per master (outer) case	6 pc(s)
Package type	Box
Package depth	270 mm
Package width	226 mm
Package height	64 mm
Package weight	750 g
Cables included	AC
Power connector	DC-in jack
Installed SFP modules quantity	0
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity	8
Stackable	No
Product color	Black
LED indicators	Activity, Link, Power
Country of origin	China
10G support	-
Multicast protocols	IGMP
Input current	1 A
DC input voltage	12 V
MAC address table	- entries
