Manage Device Security
264
S350 Series 8-Port Gigabit Ethernet Smart Managed Pro Switch Models GS308T and GS310TP

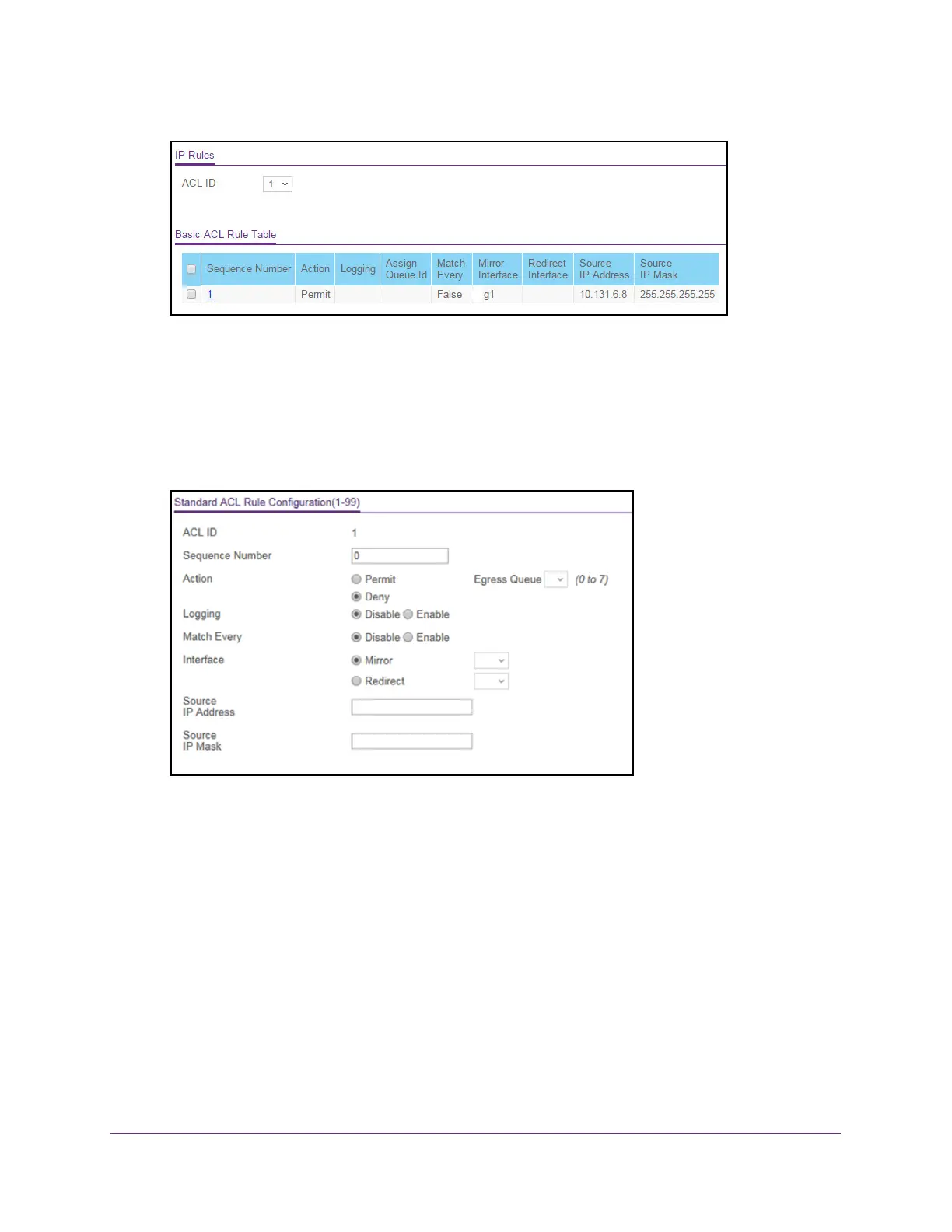

If no rules exist, the Basic ACL Rule Table shows the message No rules have been
configured for this ACL. If one or more rules exist for the ACL, the rules display in the
Basic ACL Rule Table.
6. From the ACL ID menu, select the IP
ACL for which you want to add a rule.
For basic IP ACLs, this must be an ID in the range from 1 to 99.
7. Click the Add button.
8. Specify the following match criteria for the rule:
• Sequence Number. Enter an
ACL sequence number in the range from 1 to
2147483647 that is used to identify the rule. An IP ACL can contain up to 50 rules.
• Action. Select the
ACL forwarding action, which is one of the following:
- Permit. Forward packets that meet the
ACL criteria.
Egress Queue. If the selection form the Action menu is Permit, you can specify
the hardware egress queue identifier that is used to handle all packets matching
this IP
ACL rule. The range of queue IDs is from 0 to 7.
- Deny. Drop packets that meet the
ACL criteria.
Logging. If the selection from the Action menu is Deny, you can enable logging
for the
ACL by selecting the Enable radio button. (Logging is subject to resource
availability on the switch.)
