NETGEAR GS308T User Manual

Maintenance
320
S350 Series 8-Port Gigabit Ethernet Smart Managed Pro Switch Models GS308T and GS310TP
If you do not know the IP address of the switch, see Change the Default IP Address of the
Switch on page 11.
Your web browser might display a security message, which you can ignore. For more
information, see Access the Local Browser Interface on page 19.
The login window opens.
4. Enter the switch’
s password in the Password field.
The default password is password.
The System Information page displays.

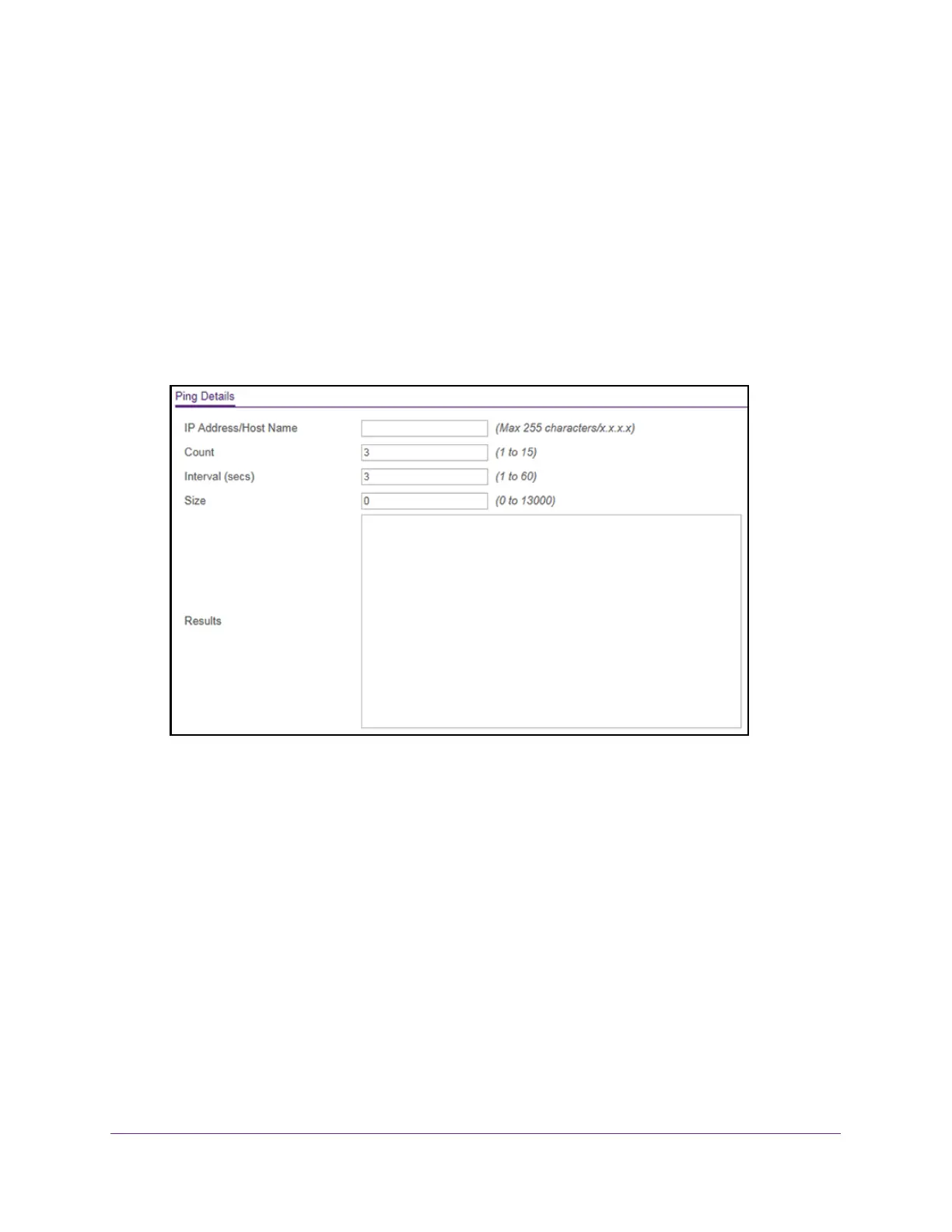

5. Select Maintenance > T
roubleshooting > Ping IPv4.
6. In the IP Address/Host Name field, enter the IP address or host name of the device that
must be pinged.
7. In the Count field, enter the number of echo requests that must be sent.
The default value is 3. The range is 1 to 15.
8. In the Interval field, enter the time between ping packets in seconds.
The default value is 3 seconds. The range is 1 to 60.
9. In the Size field, enter the size of the ping packet.
The default value is 0 bytes. The range is
0 to 13000.
10. Click the Apply button.
The specified address is pinged. The results are displayed below the configurable data in
the Results field.

NETGEAR GS308T Specifications

General

Switch type	Managed
Switch layer	L2
Quality of Service (QoS) support	Yes
Master (outer) case width	214 mm
Master (outer) case height	312 mm
Master (outer) case length	474 mm
Master (outer) case weight	6110 g
Harmonized System (HS) code	85176990
Quantity per master (outer) case	6 pc(s)
Package type	Box
Package depth	270 mm
Package width	226 mm
Package height	64 mm
Package weight	750 g
Cables included	AC
Power connector	DC-in jack
Installed SFP modules quantity	0
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity	8
Stackable	No
Product color	Black
LED indicators	Activity, Link, Power
Country of origin	China
10G support	-
Multicast protocols	IGMP
Input current	1 A
DC input voltage	12 V
MAC address table	- entries
