GS728TS, GS728TPS, GS752TS, and GS752TPS Gigabit Smart Switches
VLAN Binding Table
Use the VLAN Binding Table page to associate configured ACLs with VLANs.

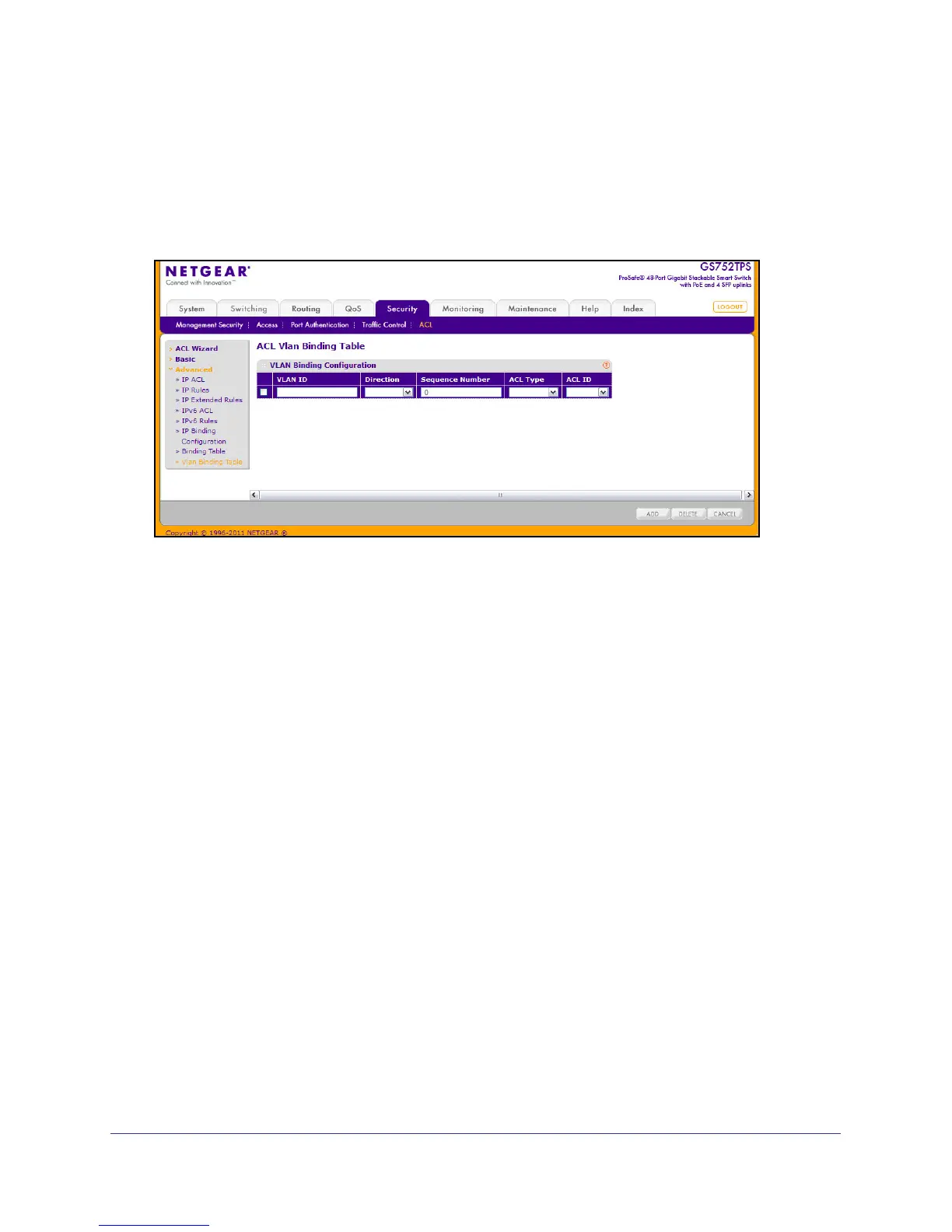

To display the VLAN Binding Table page, click Security
 ACL > Advanced  Vlan Binding
Table.
In the ACL Binding area, enter the values in the following fields:
1. In the VLAN ID field, specify a VLAN ID for ACL mapping.
2. In the Direction field, specify the direction of packet traffic affected by the MAC ACL, which
can be Inbound or blank.
3. In The Sequence Number field, specify the sequence number of the access lists.
This field displays an optional sequence number may be specified to indicate the order of
this access list relative to other access lists already assigned to this VLAN and direction.
A lower number indicates higher precedence order. If a sequence number is already in
use for this VLAN and direction, the specified access list replaces the currently attached
access list using that sequence number. If the sequence number is not specified by the
user (i.e., the value is 0), a sequence number that is one greater than the highest
sequence number currently in use for this VLAN and direction will be used. Valid range is
(1 to 4294967295).
4. In the ACL Type field,
specify the type of ACL. Valid ACL types are:
• IP ACL
• MAC ACL
• IPv6 ACL
5. The ACL ID field displays all the ACLs configured, depending on the ACL Type selected.
6. To add a VLAN ID to the selected ACL ID, click Add.
7. To remove the VLAN ID to the selected ACL ID, click Delete.
8. Click Cancel to cancel the configuration on the screen and reset the data on the screen to
the latest value of the switch.
