Pedal Calibration
When your pedal socket is in Continuous mode, you can calibrate the connected pedal.
1. Press Button 8 (Calibrate) to start the calibration process of the connected pedal.
2. Move the pedal all the way down, then press Button 8 (OK) to proceed or Button 7 (Cancel) to
cancel the calibration process.
3. Move the pedal all the way up, then press Button 8 (OK) to proceed or Button 7 (Cancel) to
cancel the calibration process.
4. Press Button 8 (OK) to conrm and quit the calibration process.

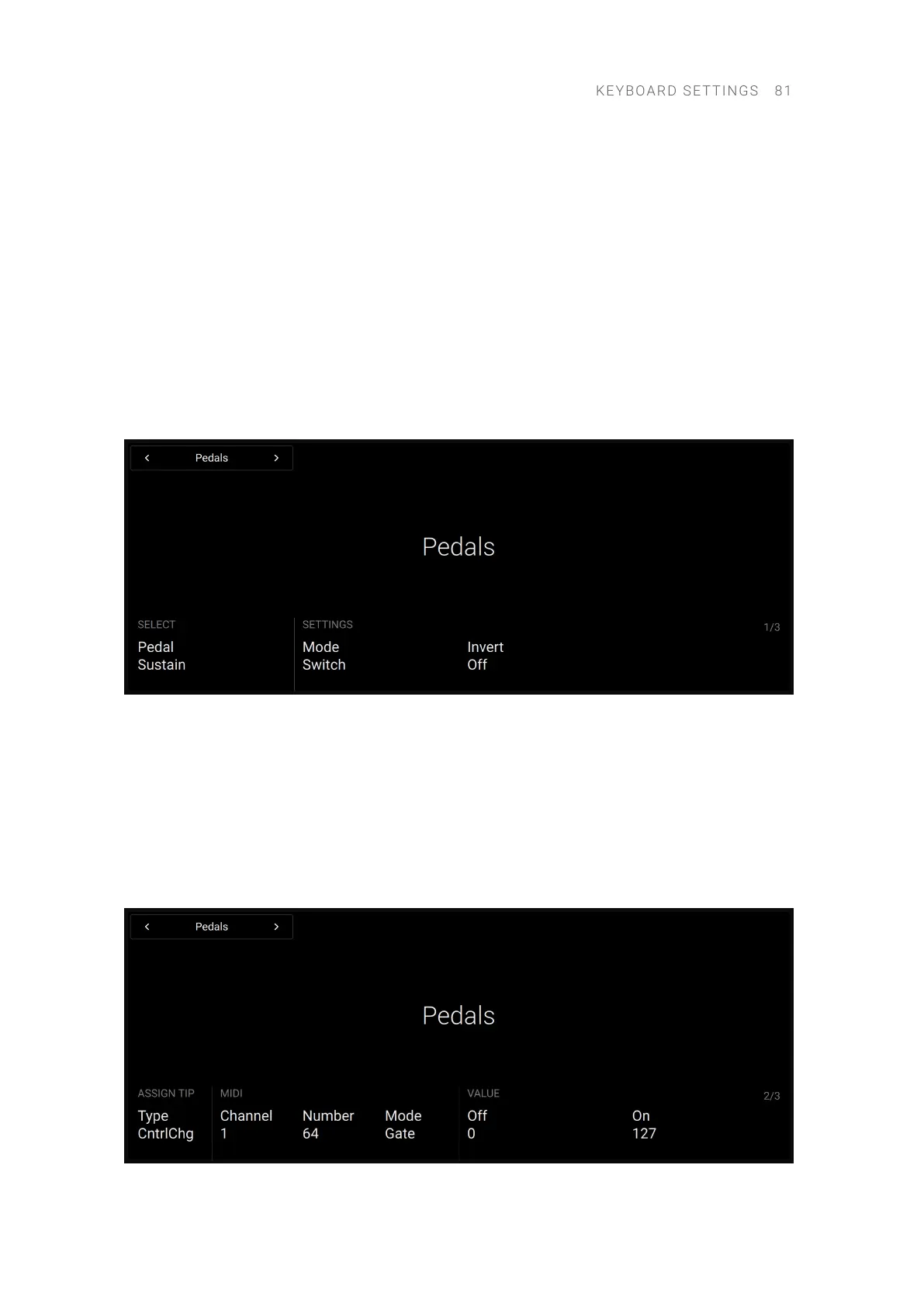

Pedal Settings in Switch Mode
In Switch mode, the available settings spread over three pages.
The following settings are available on page 1:
• SELECT:
• Pedal: Selects the pedal socket you want to congure. Refer to Selecting the Pedal Socket
for more information.
• SETTINGS:
• Mode: Selects the pedal mode. Refer to Selecting the Pedal Mode for more information.
• Invert: Inverts the range of the pedal connected to the keyboard.
Page 2 and 3 contains similar settings for the pedal tip and pedal ring, respectively.
The following settings are available on page 2 and 3:
KEYB O A R D SETTINGS 81
