- D2･ LS-50 -

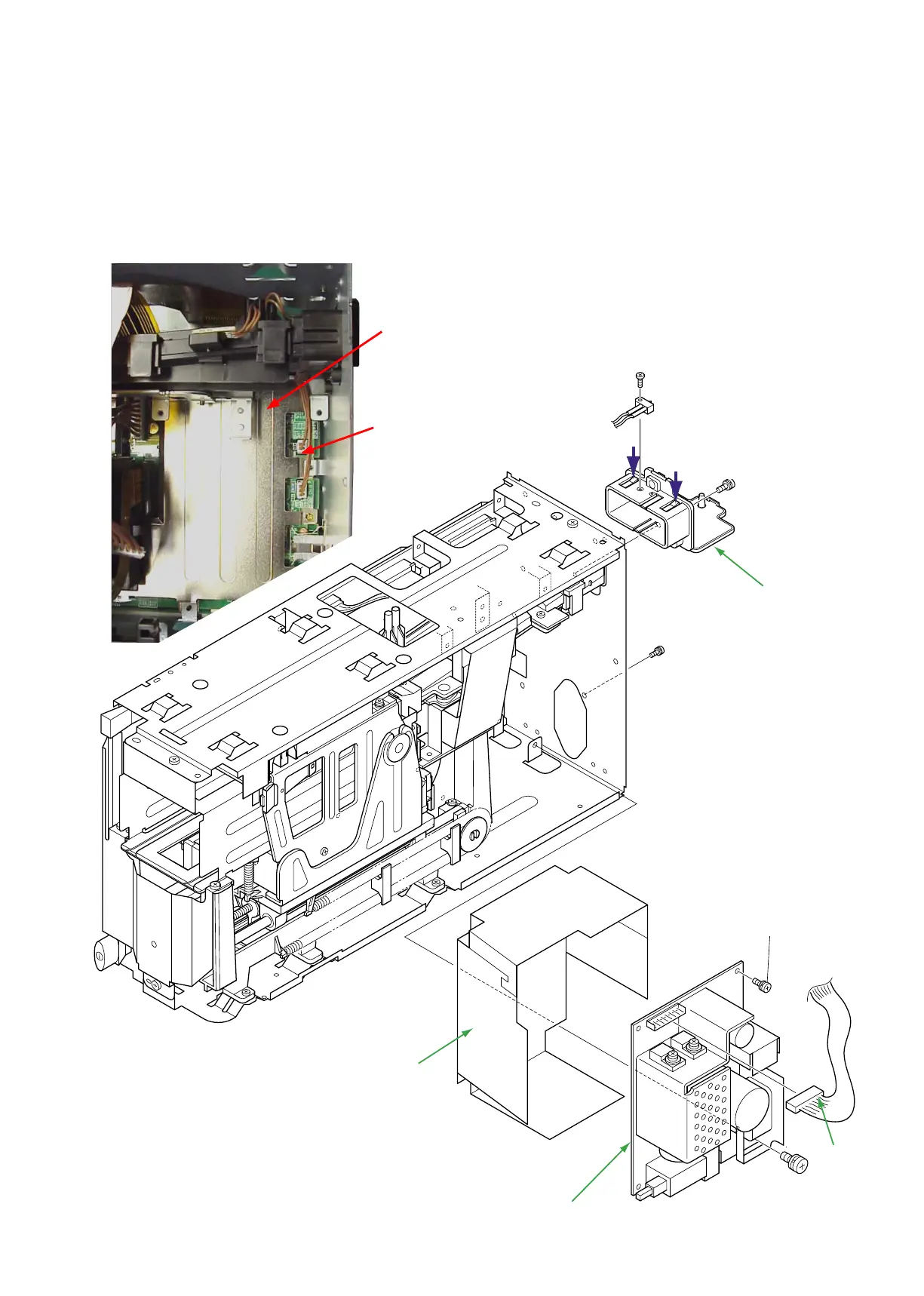

2. Power-supply unit, Film gate assembly

・Remove the power-supply harness ( ① ) from the power-supply unit ( ② ).

・Take out 1 screw ( ③ ), 3 screws ( ④ ), and 1 screw ( ⑤ ), to remove the power-supply unit ( ② ).

・Remove the PS insulating plate ( ⑥ ).

・Remove the harness of the lid-release SW ( ⑦ ) from the main PCB ( ⑧ ).

・Take out the screw ( ⑨ ), then remove the lm gate assembly ( ⑩ ) while pressing it in the direction of (↓).

⑨

⑧

*D1-D4006FE

*H1-20060FE

*D1-D2505FEx3

*D1-D2505FC

⑩

⑦

⑥

④

①

⑪

⑤

*D1-D2505FC

③
