VRA53801 - R.3609.A
-
A
9・
LS-50
-
10. Guide bar retaining plate

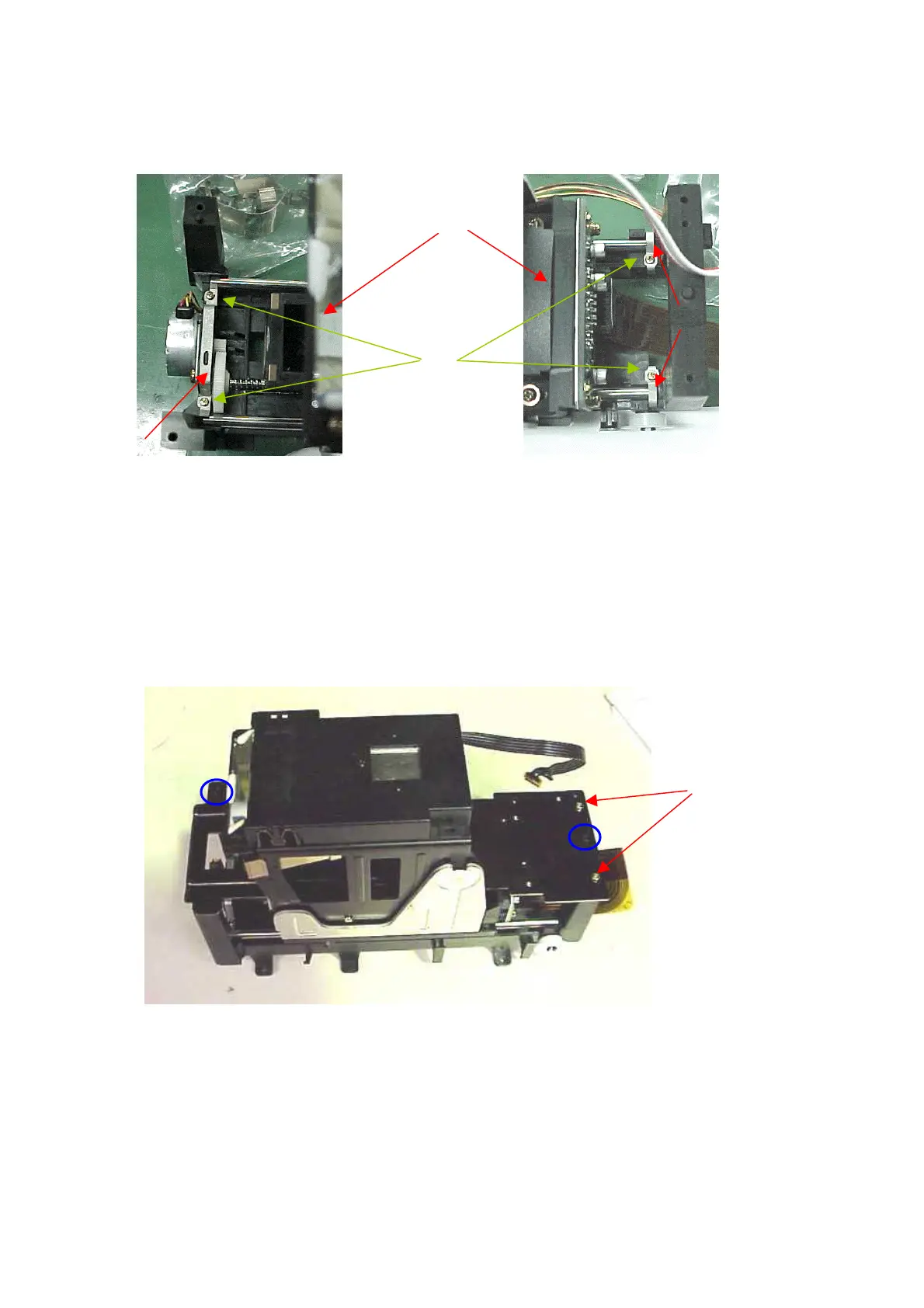

Attach the guide bar plate A (2) and the guide bar plate B (3) on the mechanical base unit (1).
Fix the guide bar plate A (2) and guide bar plate B (3) with 4 screws (4).
11. AD installing plate
Attach the AD installing plate (2) on the mechanical base unit (1) by aligning the bosses at the above 2
positions as shown by ( ).
Fix the AD installing plate (2) with 2 screws (3).
