Nikon COOLSCAN V ED - 9-4.Mchanical block unit

VRA53801 - R.3609.A
-
A
8・
LS-50
-
9 – 4. Attach Mechanical block unit

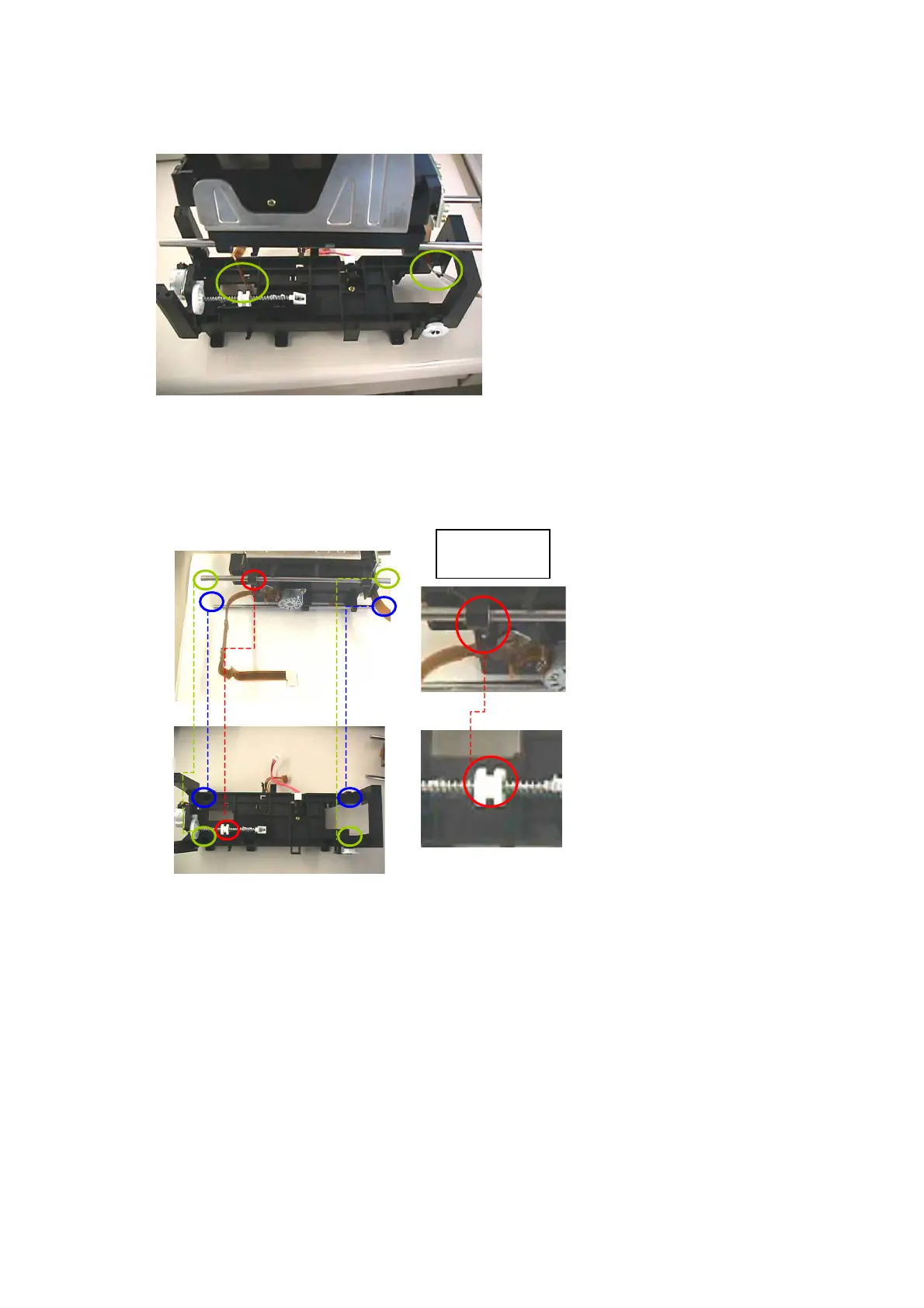

・Pass the 2 FPCs of the mechanical block unit (2) through at the above (〇) parts of the mechanical base
unit (1).
・Align the (〇 ) part of the mechanical block unit (2) with the groove of (〇) part of the mechanical base unit
(1).
・Align the convexity of ( 〇) part of the mechanical block unit (2) with the groove of (〇) of the
mechanical base unit (1).
・Align the ( 〇 ) part of the mechanical block unit (2) with the groove of ( 〇 ) of the mechanical base
unit (1).
②
①
①
①
②
Magnified
○ parts
