Nikon COOLSCAN V ED - 20. Attach Film rail; 21. Film gate

VRA53801 - R.3609.A
-
A
15・
LS-50
-
③
③
②
①
②
①

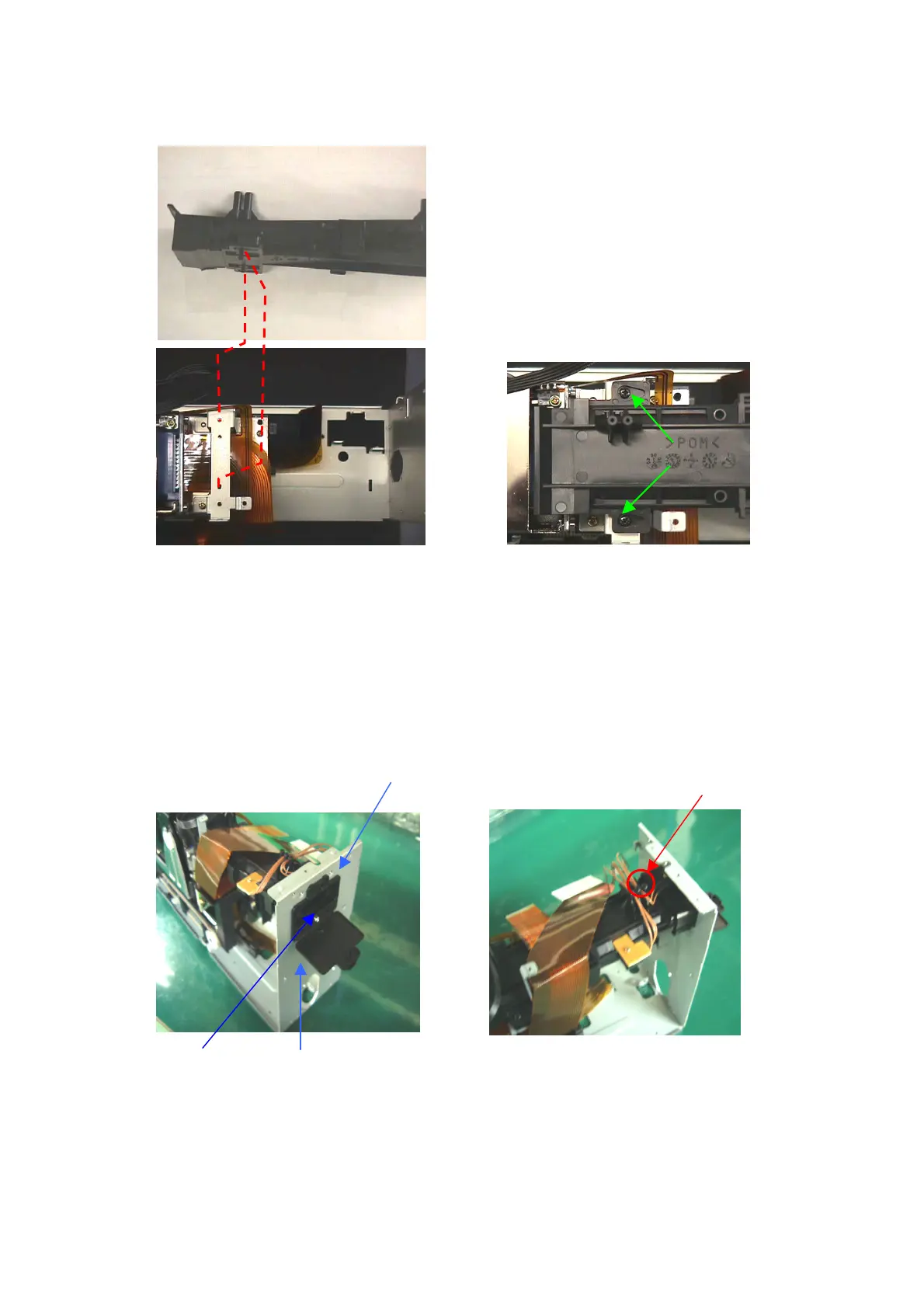

20. Attach Film rail
・Align the boss of the upper/lower film rails (2) with the hole of the mechanical base unit (1), and assemble
them.
・Fix the film rails (2) with 2 screws (3).
21. Film gate
・Attach the film gate unit (2) on the mechanical base unit (1).
・Fix the film gate unit (2) with the screw (3).
・Put the harness of the film gate unit (2) in through ( 〇) part of the mechanical base unit (1) to be
pinched.
②
①
