9. Mechanical block unit
9

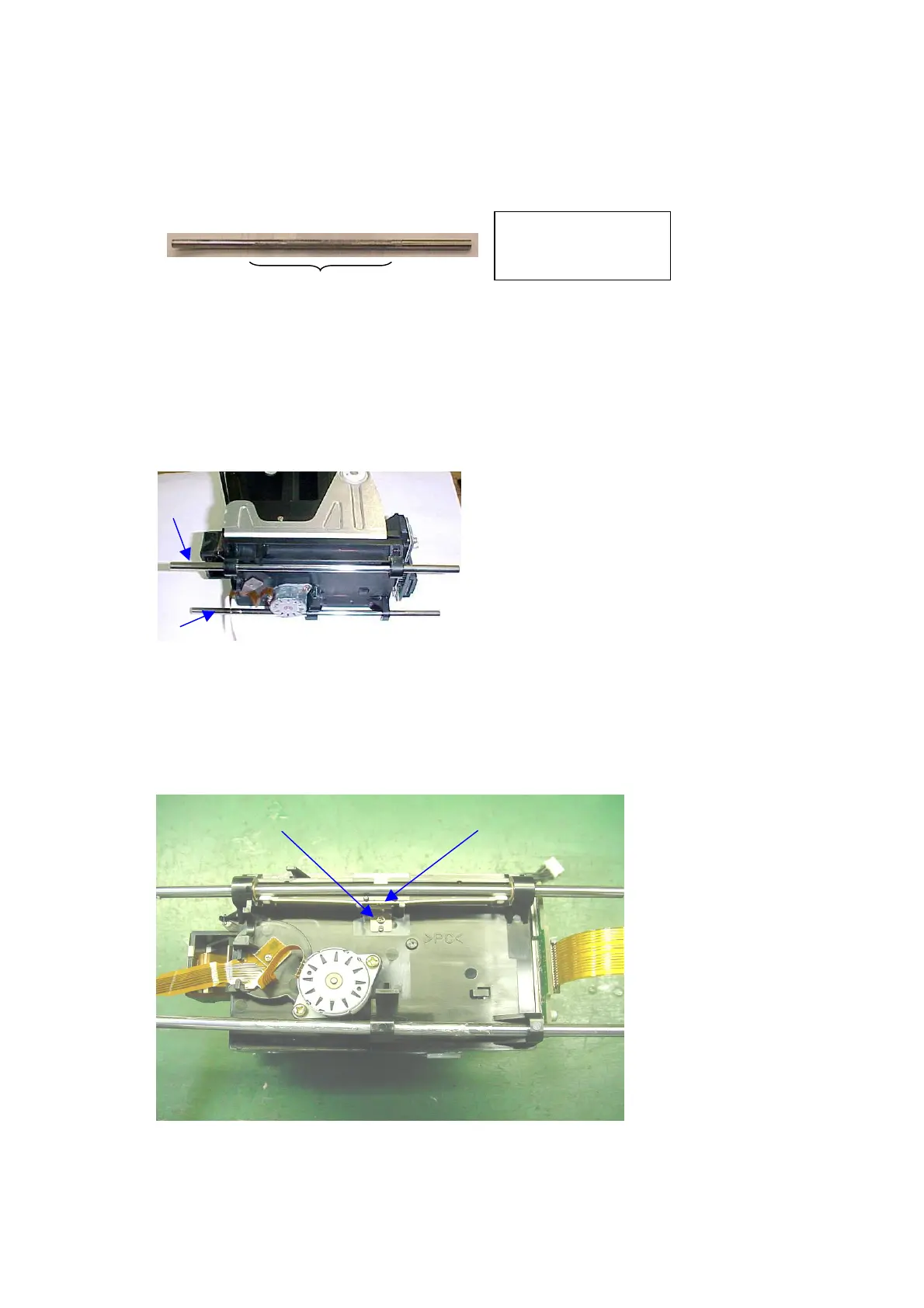

– 1. Apply grease on guide bar
・Apply the grease (Sumitech 331 J67033) to the guide bar (1).
9
– 2. Attach Guide bar
・Pass the guide bar (1) (without grease) through on the A side of the mechanical block unit (3).
・Pass the guide bar (2) (with grease) through on the B side of the mechanical block unit (3).
9 – 3. Attach Scanning vibration-proof spring
・ Attach the scanning vibration-proof spring unit (2) on the mechanical block unit (1).
・ Fix the scanning vibration-proof spring unit (2) with the screw (3).
Grease applied
area
①
Apply grease
Sumitec 331
①
A
B
②
③
