Nikon COOLSCAN V ED - 5. Main chassis unit

VRA53801-R.3609.A
- D5･ LS-50 -
5. Main chassis unit

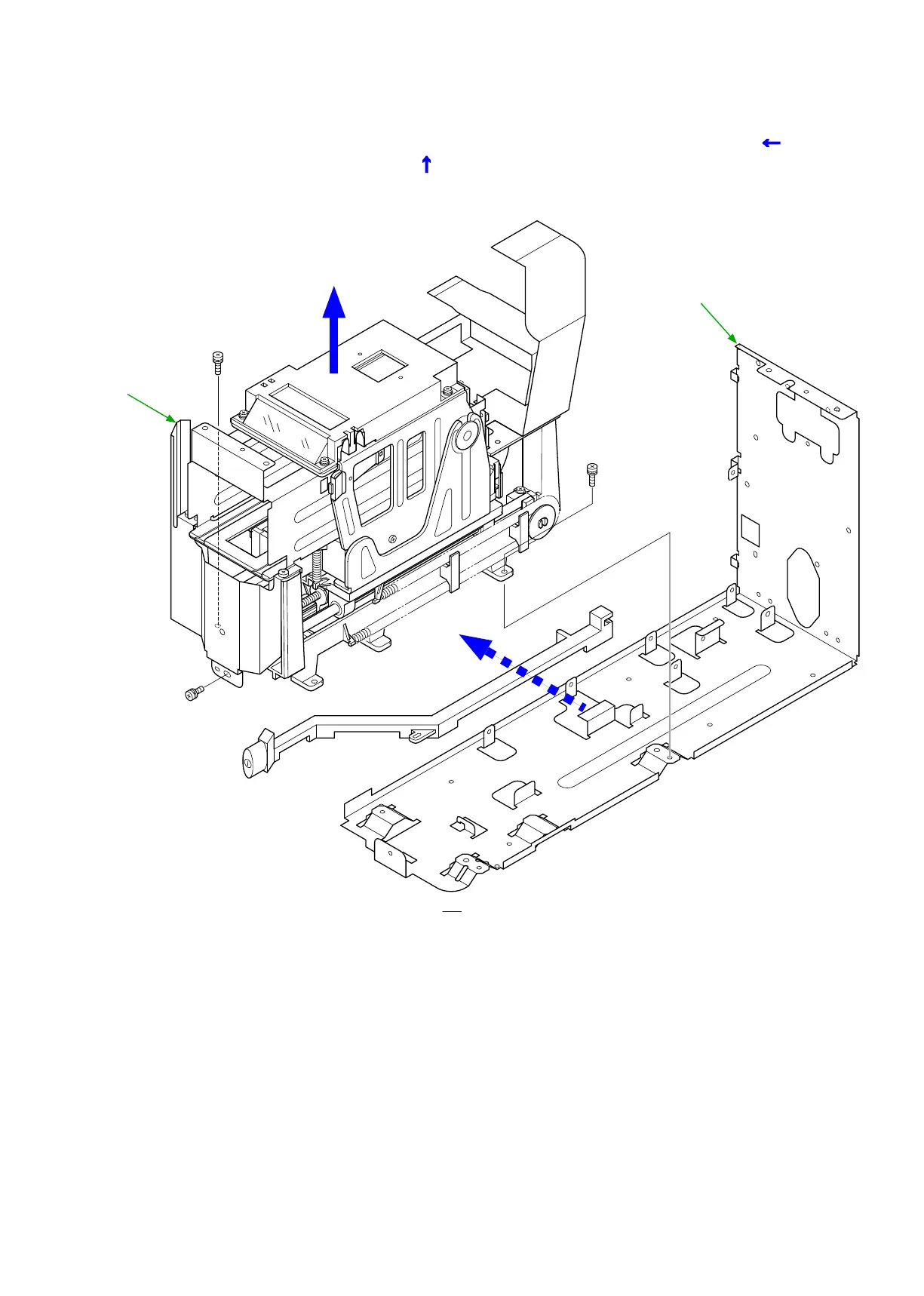

・Take out 2 screws ( ① ) and 1 screw ( ② ) and 1 screw ( ③ ).
・Displace the mechanical block unit ( ④ ) from the main chassis ( ⑤ ) in the direction of ( ⑥ ←), and
remove it by lifting in the direction of ( ⑦ ↑).
>ABS<
>PC-GF20<
D1-D2508FFx2
D1-D2508FF
*D1-D2505FE
①
②
④
⑤
⑥
⑦
③
