Nikon COOLSCAN V ED User Manual

VRA53801 - R.3609.A
-
A
16・
LS-50
-
②
①
③

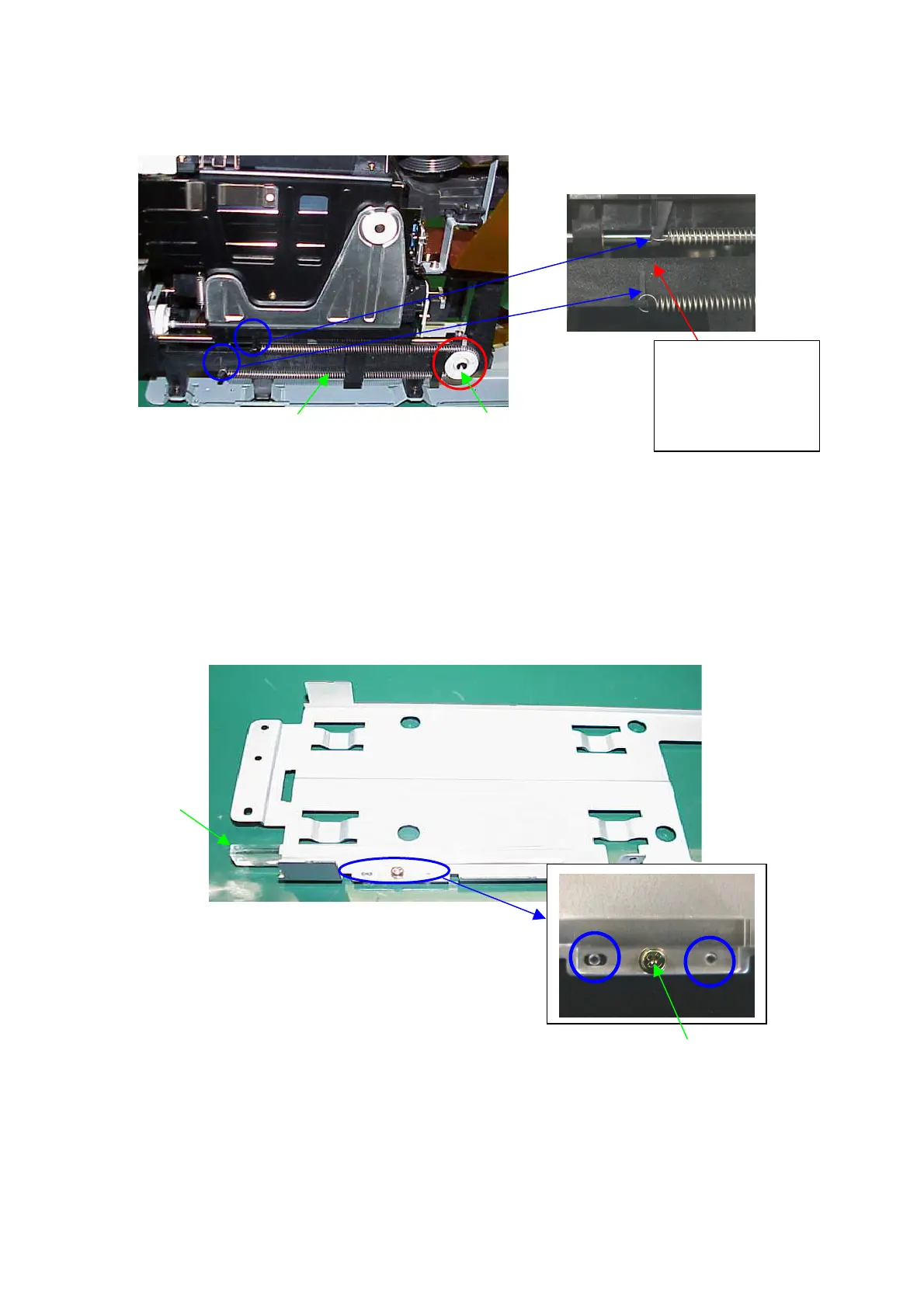

22. Scanning spring
・Hook both ends of the scanning spring (2) to the ( 〇 ) part of the mechanical base unit (1), and also
hook part of the spring to ( 〇 ) part of the scanning spring pulley (3).
23. Light guide
・Attach the light guide (2) to the top chassis (1) by aligning the bosses at the above 2 positions as shown by
( 〇 ).
・Fix the light guide (2) with the screw (3).
①
②
Place the tip of
spring downwards
to prevent the
spring come off.
③
