Nikon COOLSCAN V ED User Manual

VRA53801-R.3609.A
ー Ｅ２・ LS-50 ー

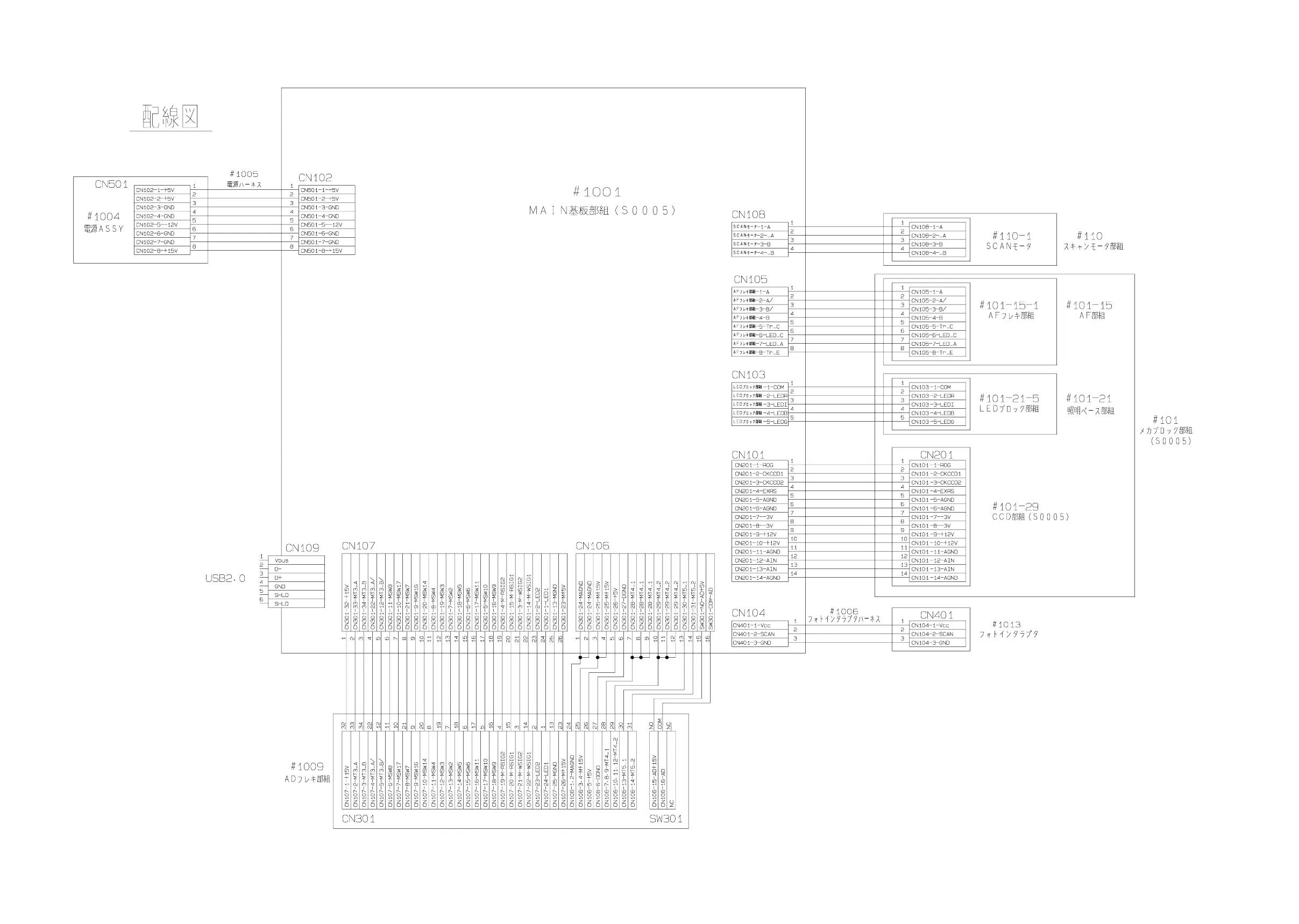

WIRING
#1005 power
supply cable
#1004 power
supply assy
Main PCB assy (S0005)
Scan motor 1-A
Scan motor 2-_A
Scan motor 3-B
Scan motor 4-_B
AF FPC assy-1-A
AF FPC assy-2-A/
AF FPC assy-3-B/
AF FPC assy-4-B
AF FPC assy-5-Tr_C
AF FPC assy-6-LED_C
AF FPC assy-7-LED_A
AF FPC assy-8-Tr_E
LED block assy-1-COM
LED block assy-2-LEDR
LED block assy-3-LEDI
LED block assy-4-LEDB
LED block assy-5-LEDG
Photo-interrupter harness
Photo-interrupter
CCD boad assy (S0005)
Mecha block assy (S0005)
Illumination
base assy
LED block assy
AF assy
AF FPC assy
Scan motor assy
Scan motor

Nikon COOLSCAN V ED Specifications

General

Optical Resolution	4000 dpi
Color Depth	48-bit
Scanner Type	Film Scanner
Light Source	LED
Scan Speed	38 seconds (35mm slide)
Interface	IEEE 1394 (FireWire)
Media Type	35mm film strips, mounted slides
Maximum Scan Area	35mm film: 24 x 36mm
Bit Depth	16-bit
Scanning Method	Single-pass
Software	Nikon Scan 4
