Nikon COOLSCAN V ED - Chassis and rail unit disassembly

VRA53801-R.3609.A
- D4･ LS-50 -
4. Top chassis, Film rail unit

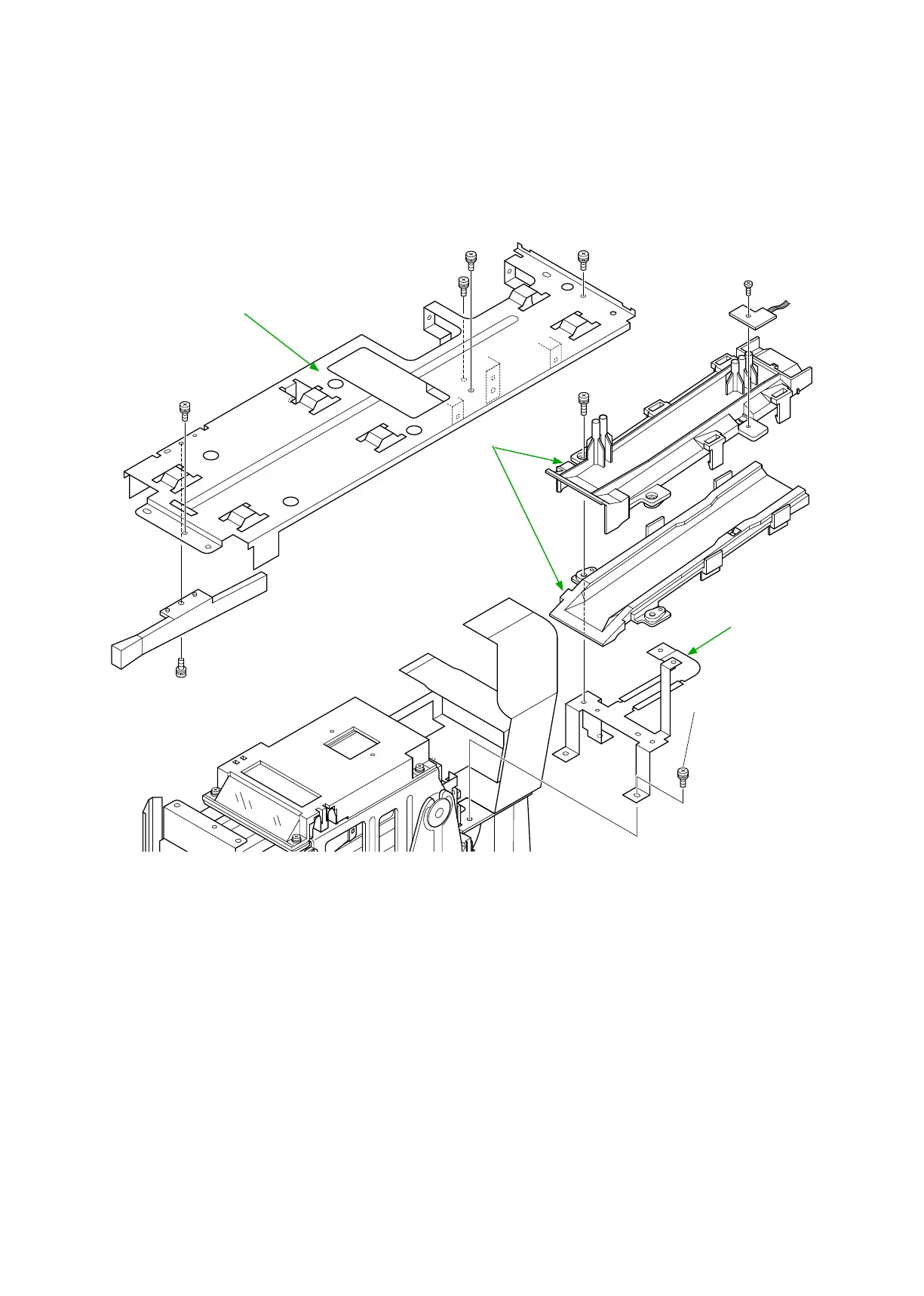

・Take out 4 screws ( ① ) to remove the top chassis ( ② ).
・Take out 2 screws ( ③ ) to remove the lm rails ( ④ ).
・Take out 2 screws ( ⑤ ) to remove the lm rail plate ( ⑥ ).
D1-D2508FFx2
*H1-20060FE
>PC-GF20<
*D1-D2505FEx4
*D1-D2505FEx2
*D1-D2505FE
①
②
③
④
⑤
⑥
