Nikon COOLSCAN V ED - 19. Film rail

VRA53801 - R.3609.A
-
A
14・
LS-50
-
19. Film rail

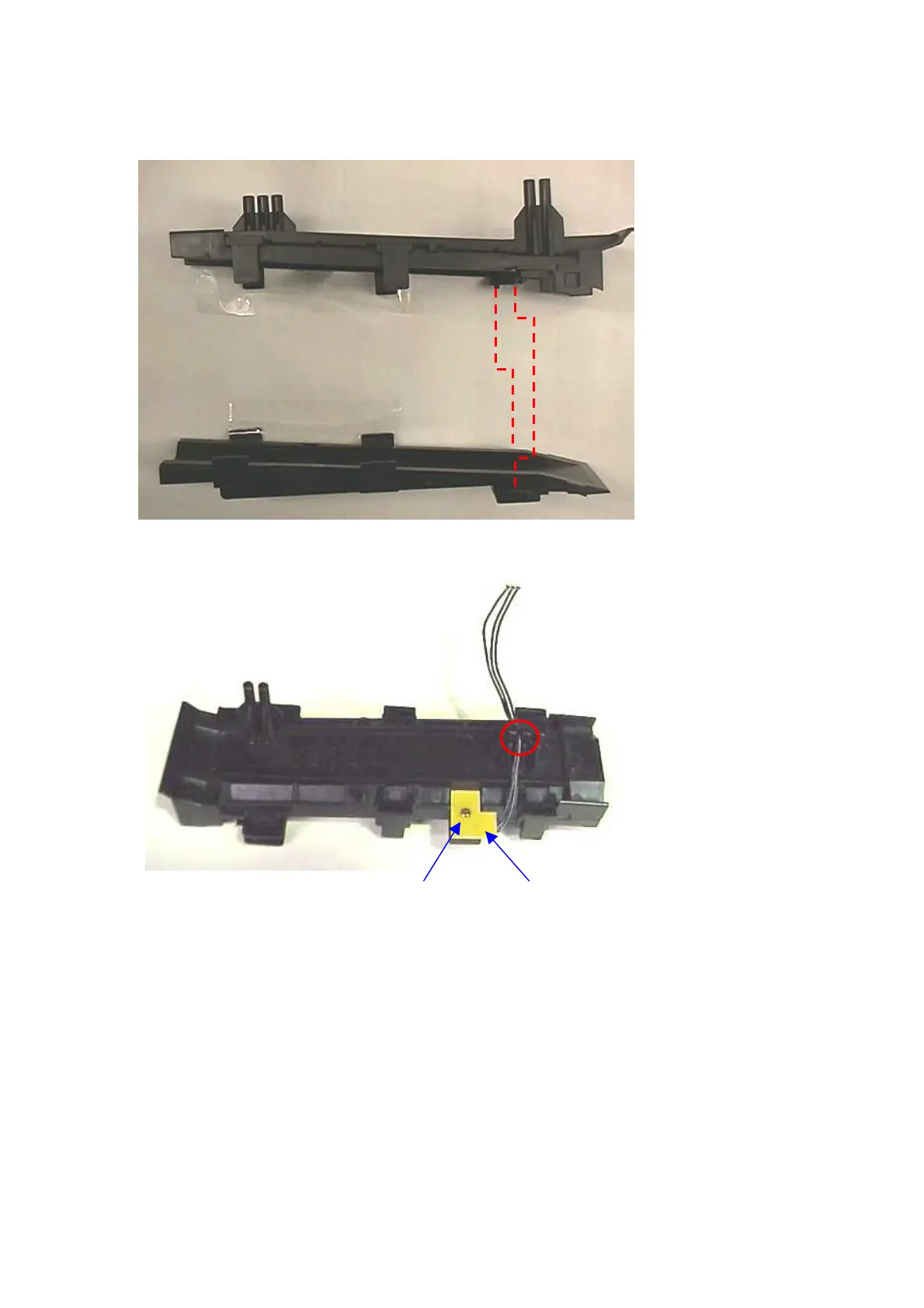

・Assemble the film rails by aligning the bosses of the upper film rail (1) and lower film rail (2).
・Attach the rail perforation sensor unit (2) on the film rail (1) with the screw (3).
・Put the harness of the rail perforation unit (2) in through ( 〇 ) part of the film rail to be pinched.
①
②
①
②
③
