Nikon COOLSCAN V ED User Manual

VRA53801 - R.3609.A
- A
20 ・
LS-50 -

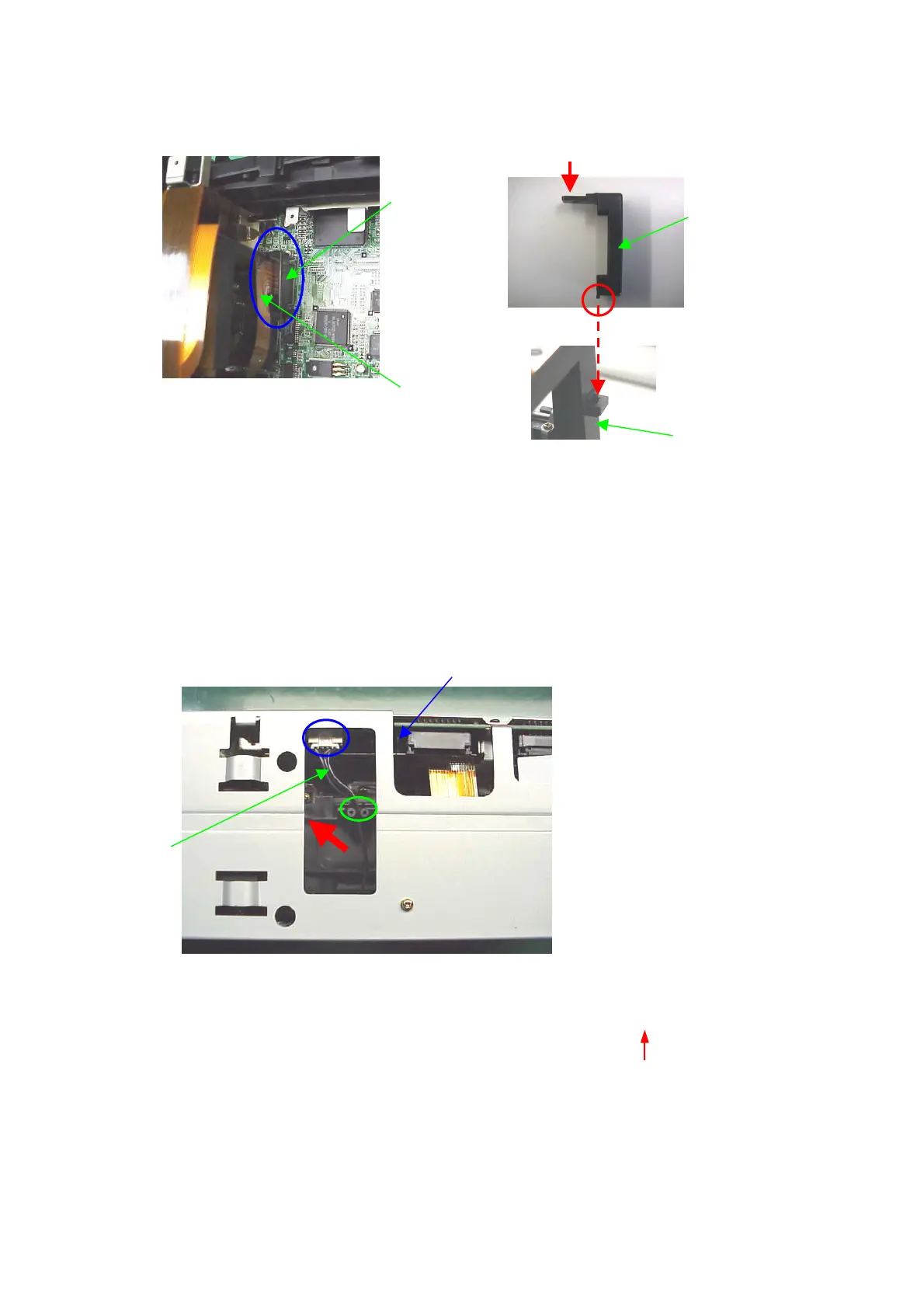

27. Core holder
・Put the ferrite core (2) in the core holder (1).
・Put the claw of the core holder (1) into the groove of the mechanical base unit (4).
・Fix the core holder (1) from above with the screw (3).
28. LED harness
・Connect the LED harness to ( 〇 ) part of the main PCB unit (1).
・Put the LED harness (2) in ( 〇 ) part to be pinched.
・Be careful NOT to pinch the LED harness (2) at the position indicated by ( ).
②
①
①
③
④
①
②

Nikon COOLSCAN V ED Specifications

General

Optical Resolution	4000 dpi
Color Depth	48-bit
Scanner Type	Film Scanner
Light Source	LED
Scan Speed	38 seconds (35mm slide)
Interface	IEEE 1394 (FireWire)
Media Type	35mm film strips, mounted slides
Maximum Scan Area	35mm film: 24 x 36mm
Bit Depth	16-bit
Scanning Method	Single-pass
Software	Nikon Scan 4
