Nikon COOLSCAN V ED - 16. Film rail plate

VRA53801 - R.3609.A
-
A
12・
LS-50
-
⑤
④
①
16. Film rail plate

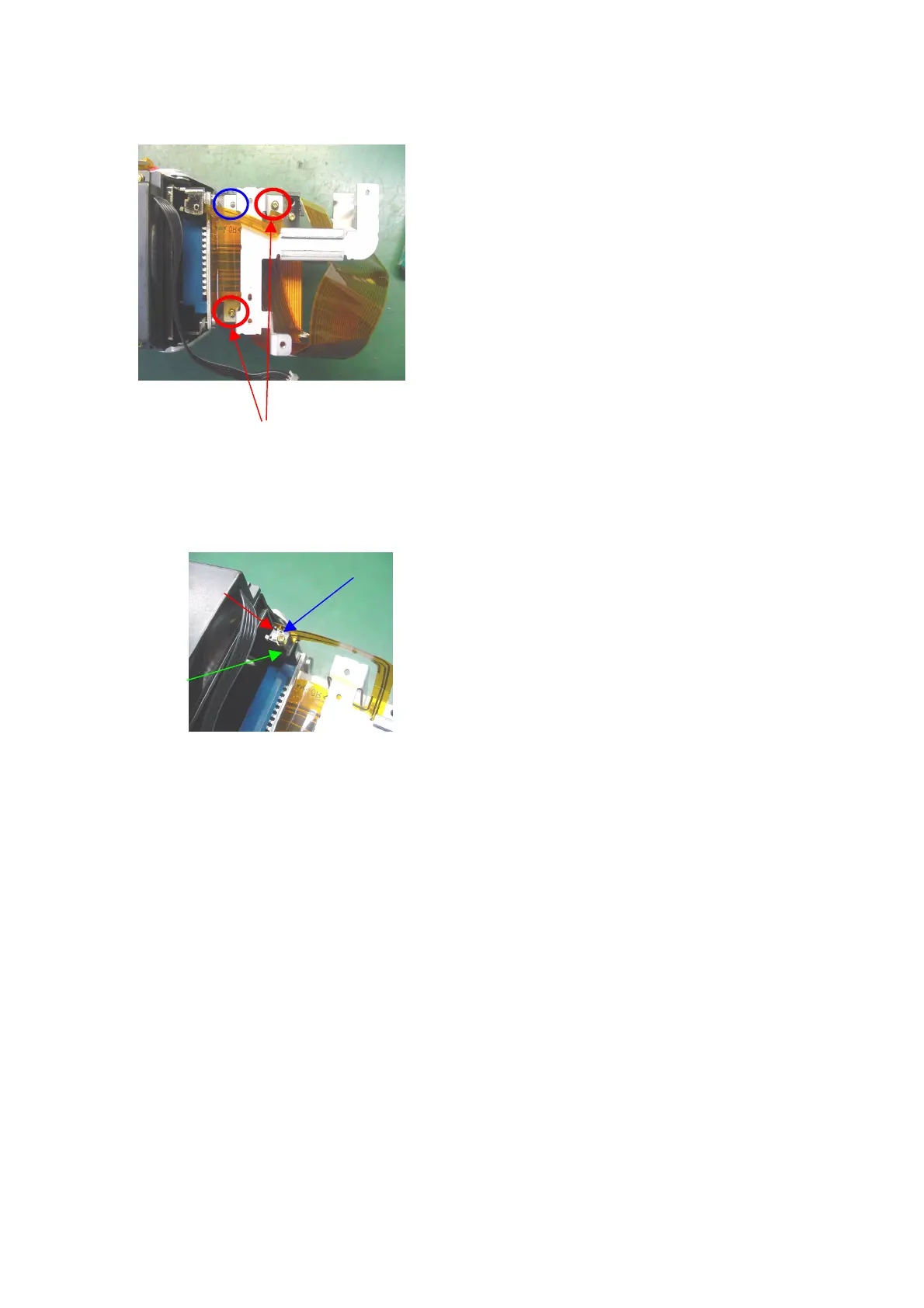

・Attach the film rail plate (2) on the mechanical base unit (1) by aligning the bosses as shown by ( 〇 ).
・Fix the film rail plate with 2 screws (3) at the above ( 〇 ) positions.
・Enter the boss of the sensor of the AD-FPC unit (4) in the notch of the mechanical base unit (1) and fix
them with the screw (5).
・Check if the head of the sensor of the AD-FPC unit (4) operates smoothly.
①
③
②
