VRA53801-R.3609.A
- D3･ LS-50 -

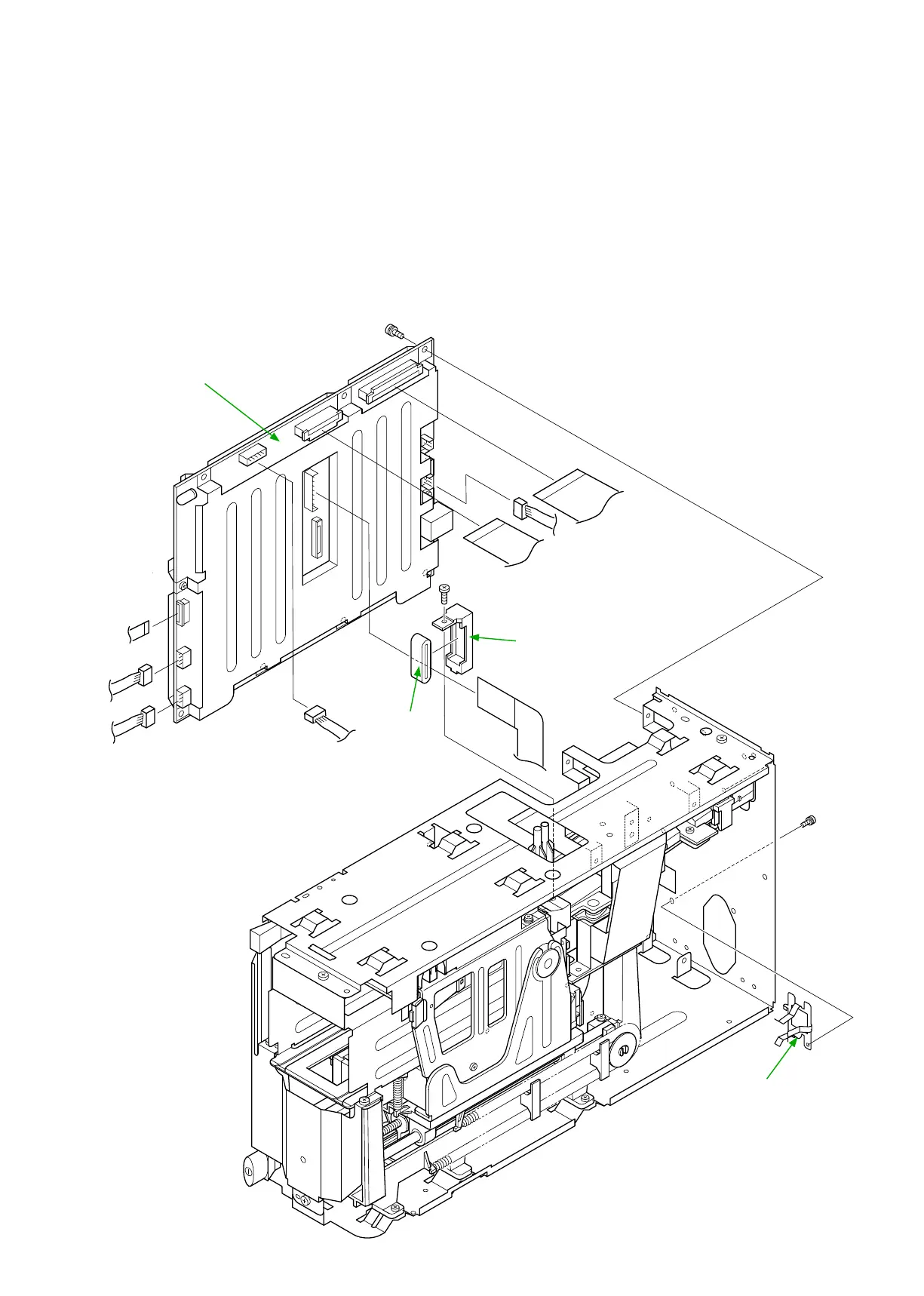

3. Main PCB
・Remove the AD-FPCs ( ① and ② ).
・Remove the harness of the rail perforation sensor ( ③ ) and the LED harness ( ④ ).
・Take out the screw ( ⑤ ) to remove the core holder ( ⑥ ).
・Remove the harness of photo interrupter ( ⑦ ), the harness of scan motor ( ⑧ ), and the AF motor FPC
( ⑨ ).
・Take out 1 screw ( ⑩ ) and 8 sccrews ( ⑪ ).
・Open the main PCB ( ⑫ ) slightly, and remove the CCD-FPC ( ⑬ ) and the ferrite core ( ⑭ ).
・Remove the connector shield ( ⑮ ).
To Next Page
