Nikon COOLSCAN V ED - 37. Rubber foot

VRA53801 - R.3609.A
- A
26 ・
LS-50 -
⑥
⑤
⑤
①
②
37. Rubber foot

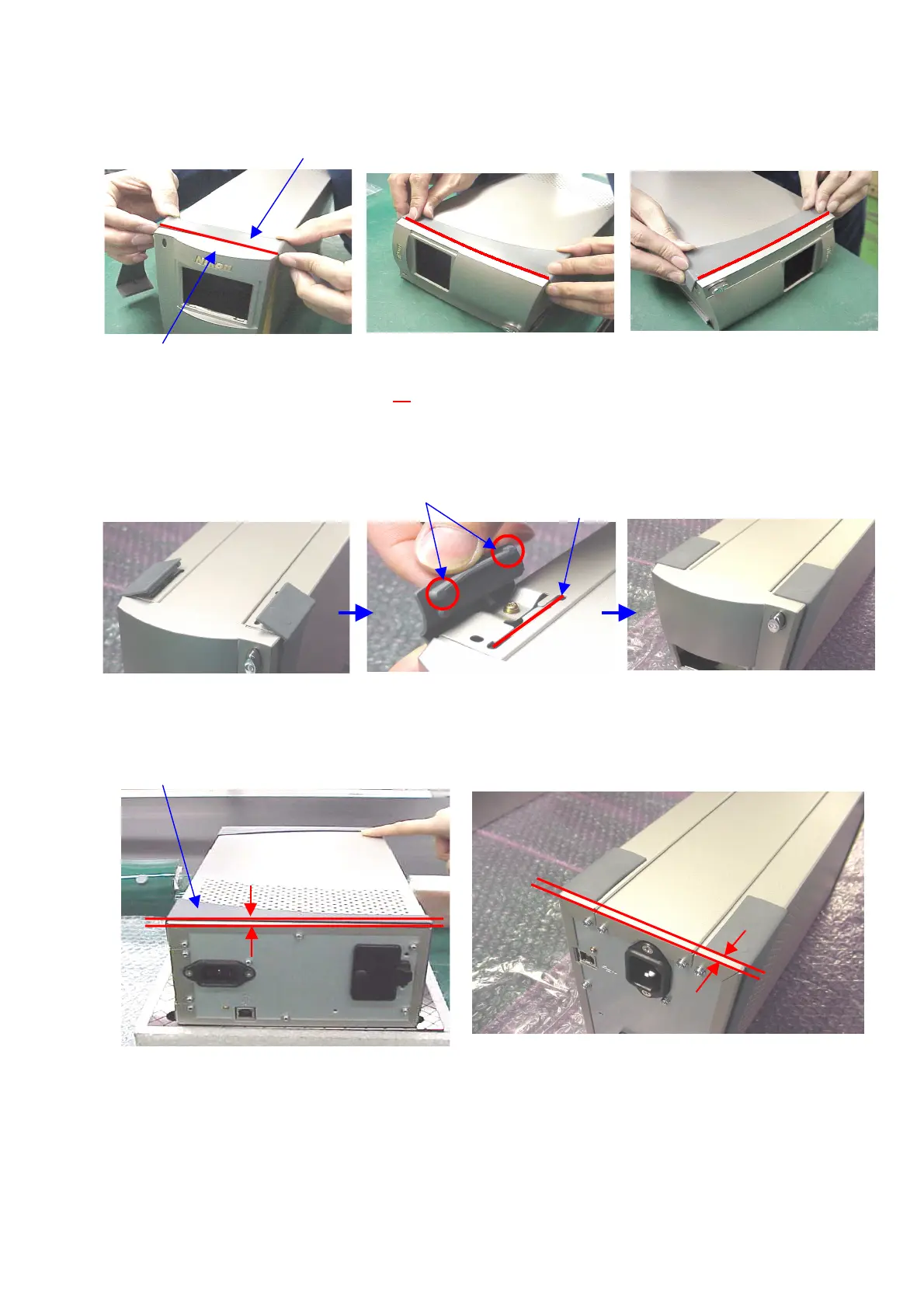

・Put the rubber foot for front (2) along ( ) line on the front panel unit (1), and attach it by pressing on
from the top to side faces.
・Enter the bosses of the rubber foot for front (4) in the bottom grooves of the body unit (3).
・Attach the rubber foot for rear (6) at 3.5 mm-distance from the backmost edge of the body unit (5).
③
④
