6. AD-FPC, AD retaining plate, AD installing-plate unit

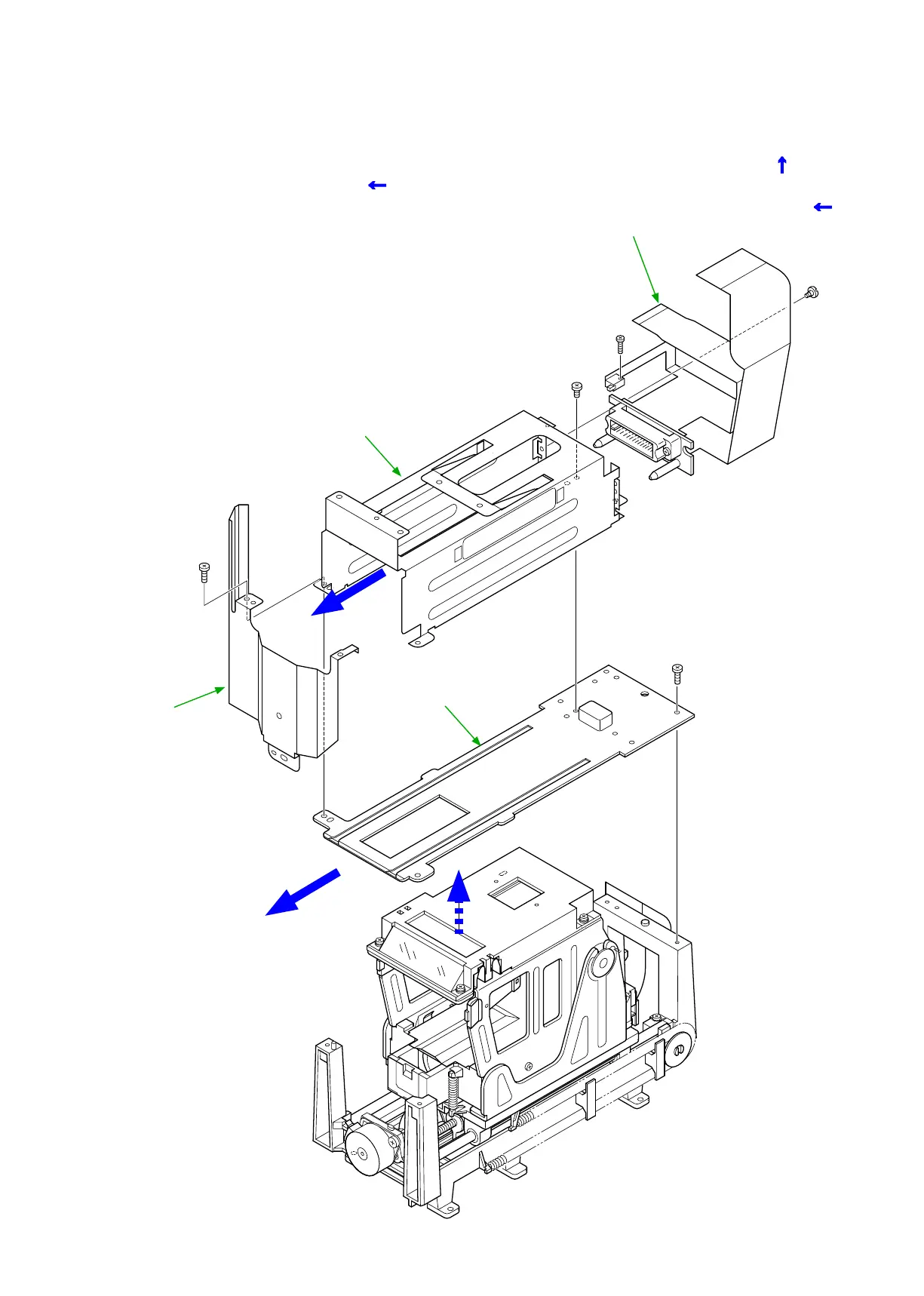

・Take out 1 screw ( ① ) and 2 screws ( ② ) to remove the AD-FPC ( ③ ).
・Take out 1 screw ( ④ ) to remove the front shield plate ( ⑤ ).
・Take out 2 screws ( ⑥ ), then while lifting the AD installing-plate ( ⑧ ) in the direction of ( ⑦ ↑), remove
it by pulling in the direction of ( ⑨ ←).
・Take out 2 screws ( ⑩ ), and remove the AD installing-plate ( ⑪ ) by pulling in the direction of ( ⑫ ←).
>PC-GF20<
*D1-D2505FEx2
*D1-D2008FE
*F1-2608FE1x2
*F1-26080FE1x2
①
⑥
④
⑩
③
② x2
⑦
⑪
⑤
⑧
⑫
⑨
