Nikon COOLSCAN V ED - 8. Mechanical block unit

VRA53801-R.3609.A
- D8･ LS-50 -
8. Mechanical block unit
※ Whenever the illumination base assembly is disassembled, it is necessary to adjust the illumination
irregularity.
Refer to Page A27 for how to adjust, and also refer to Page 29 for the inspection software and necessary
tools.

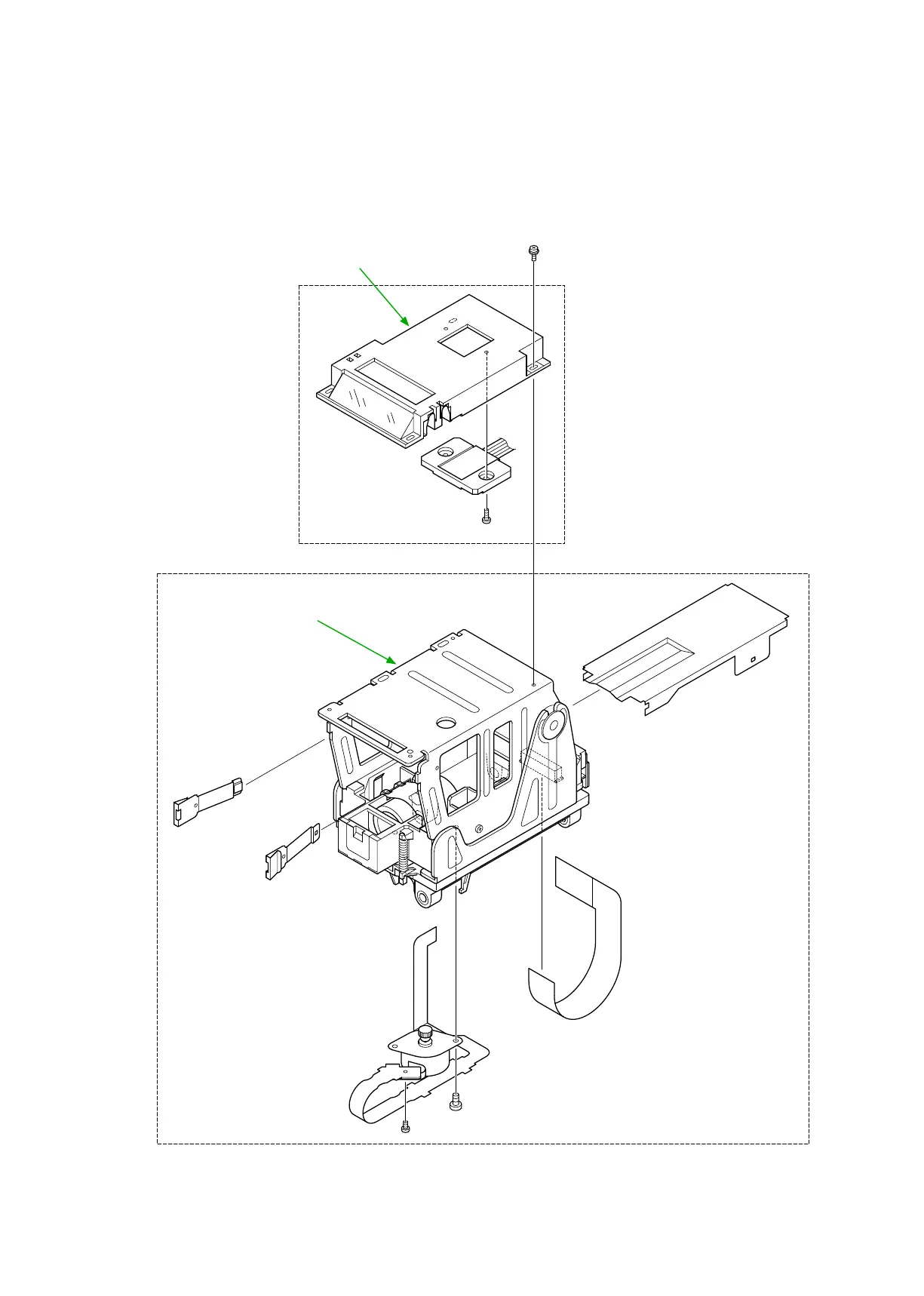

・Take out 4 screws ( ① ), and disassemble the mechanical block unit ( ② ) and the illumination base
assembly ( ③ ).
>PC-GF20<
*D1-A2005FEx4
*H1-20060FEx2
*F1-30060FE1x2
H1-17030FE
①
③
②
