Nikon COOLSCAN V ED - 14. AF-FPC; 15. AD-FPC

VRA53801 - R.3609.A
-
A
11・
LS-50
-
14. AF-FPC

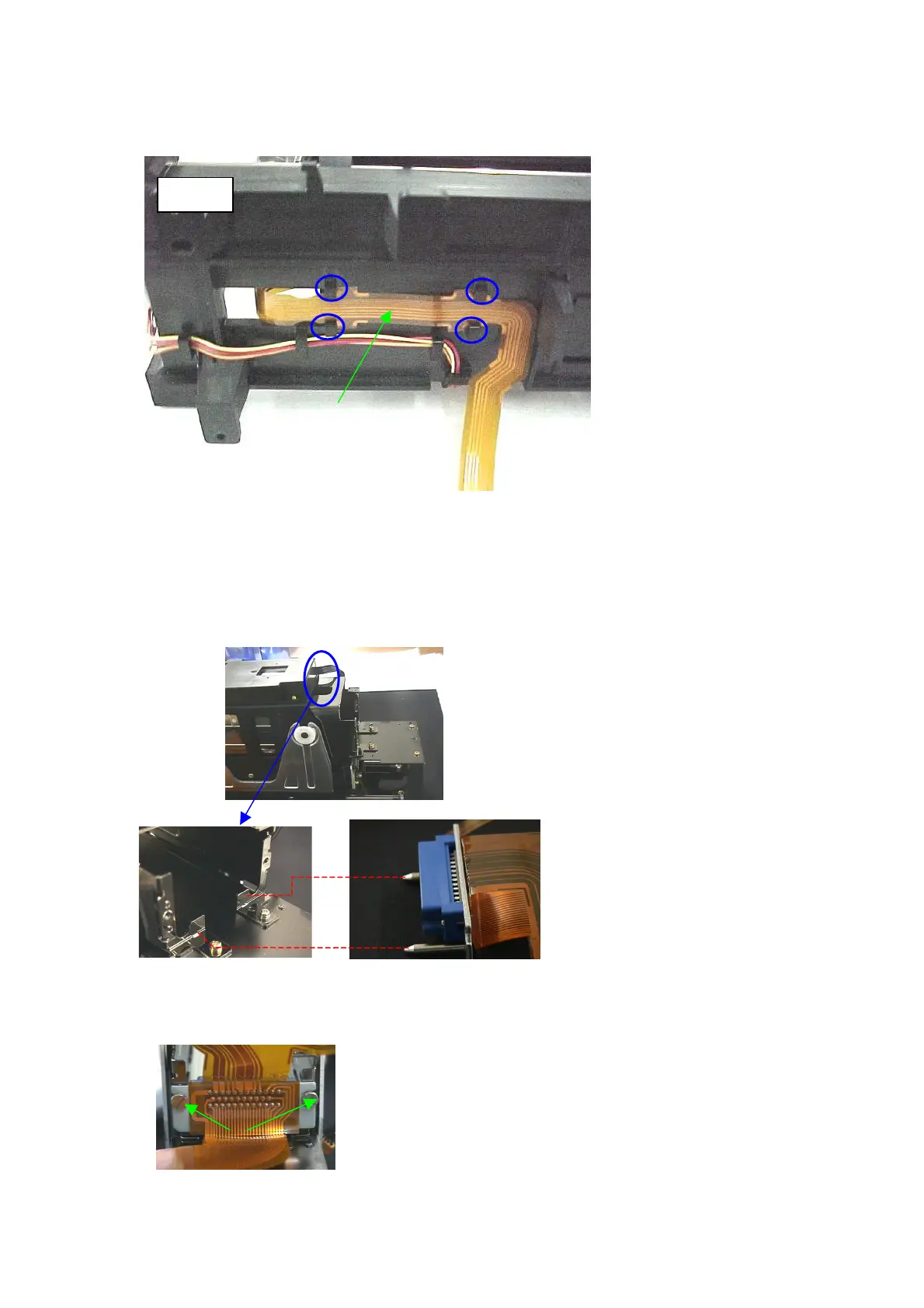

・Hook the FPC of the AF unit (2) to the claws of the mechanical base unit (1) at the above 4 parts as shown
by ( 〇 ).
15. AD-FPC
・Attach the AD-FPC (2) to the mechanical base unit (1) by passing the claws through the holes.
・Fix the AD-FPC (2) with 2 screws (3).
①
Backside
②
②
①
③
