Nikon COOLSCAN V ED - 12. AD retaining plate; 13. Connector hold rubber

VRA53801 - R.3609.A
-
A
10・
LS-50
-
②
①
Get the rubber to touch the protrusion
p
art of (1)
and attach it.

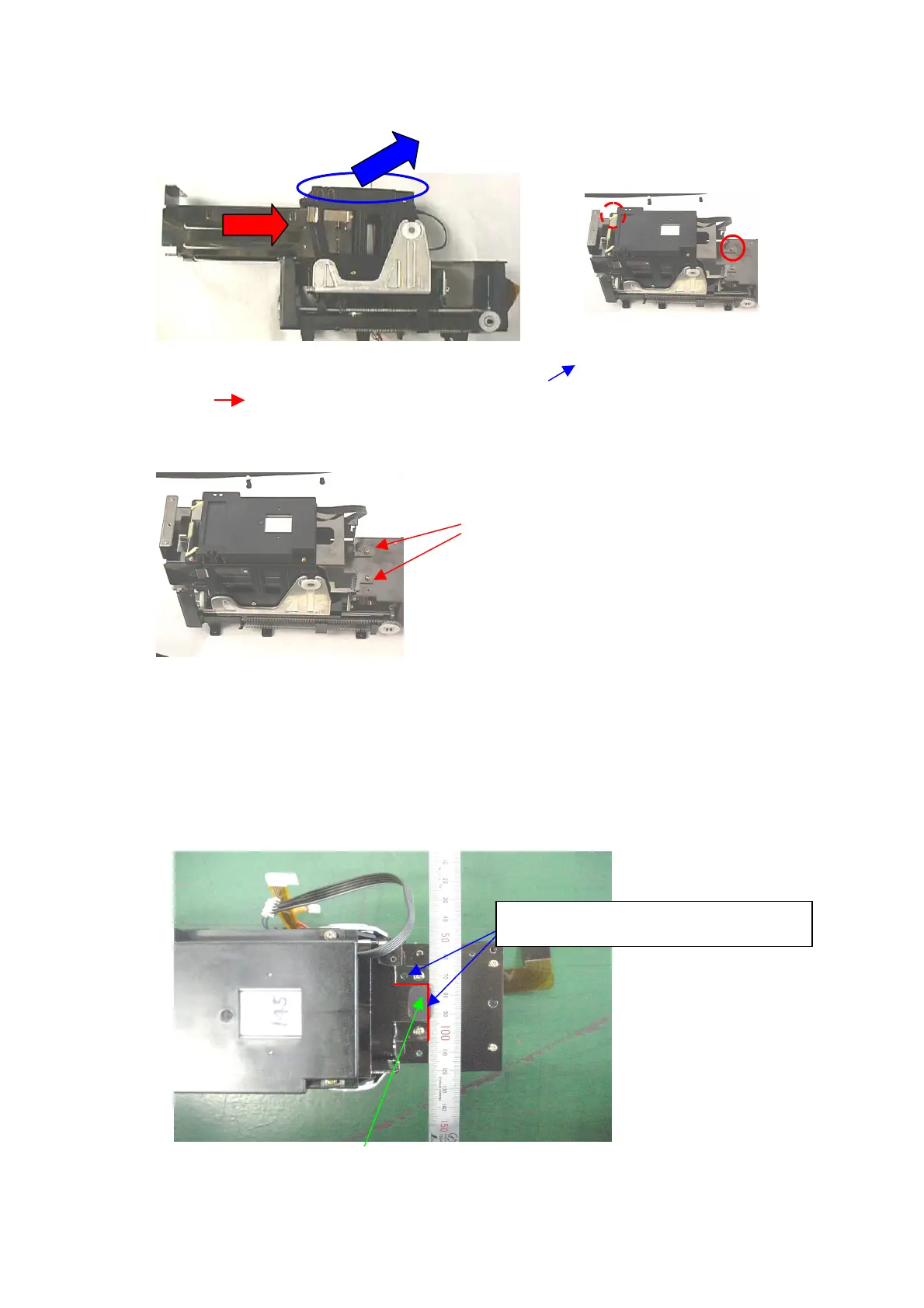

12. AD retaining plate
・While lifting the mechanical block unit (1) in the direction of ( ), push the AD retaining plate (2) in the
direction of ( ) by aligning the bosses at the above 2 positions as shown by (〇 ).
・Fix the AD retaining plate (2) with 2 screws (3).
13. Connector hold rubber
・Attach the connector hold rubber (2) on the mechanical base unit (1).
②
①
③
②
