24. Top chassis

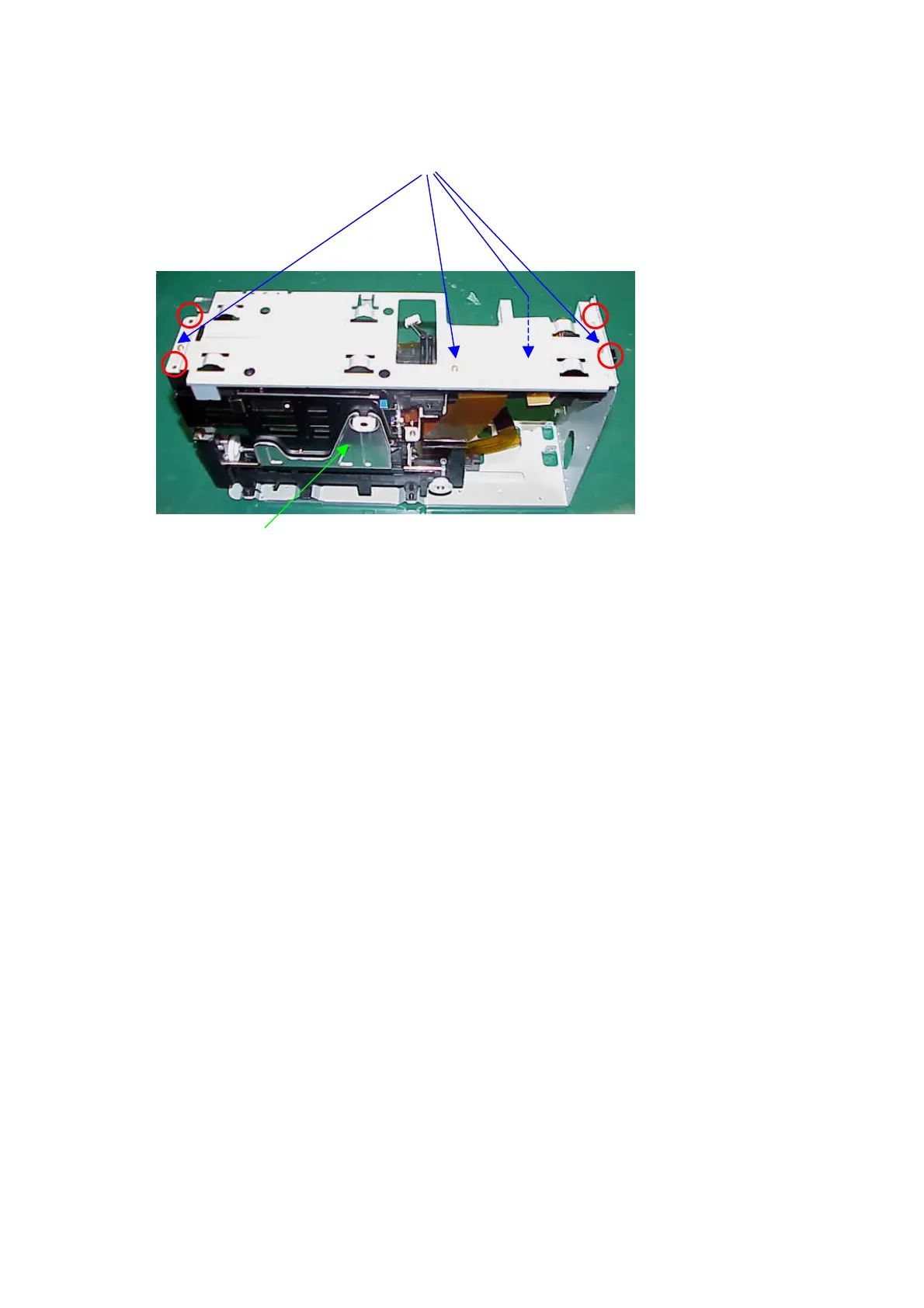

・Attach the top chassis (
2
) on the mechanical base unit (1) by aligning the bosses at 4 positions as shown
by ( 〇 ).
・Fix the top chassis (2) with 4 screws (3) in the order from (3)-1 to (3)-4.
