- D7･ LS-50 -

7. Mechanical base unit

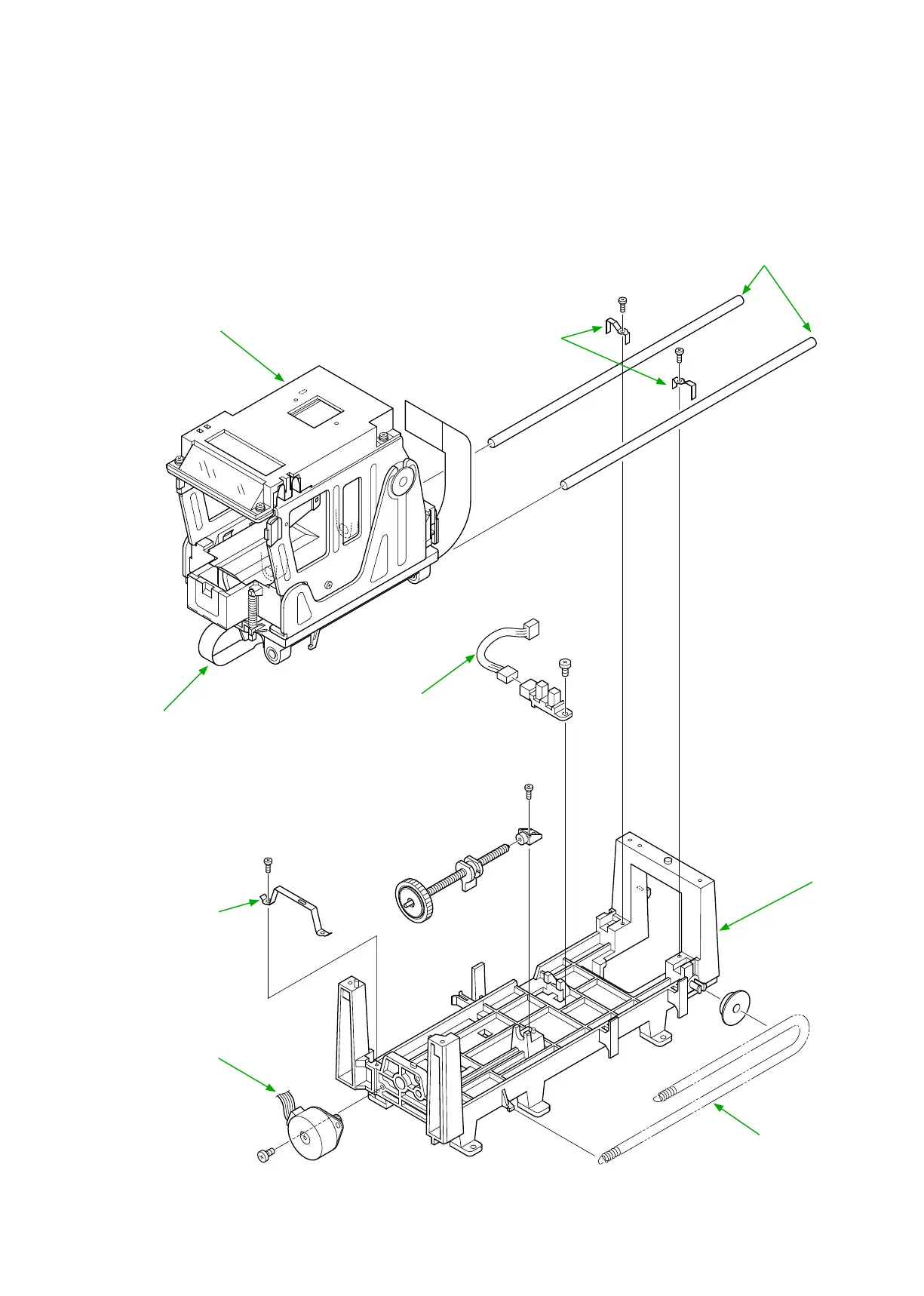

・Remove the scanning spring ( ① ).

・Unhook the AF-FPC ( ② ), the scan motor harness ( ③ ), and photo interrupter harness ( ④ ) from the

hooks on the backside of the mechanical base unit ( ⑤ ).

・Take out 2 screws ( ⑥ ) to remove the guide bar retaining-plate ( ⑦ ).

・Take out 2 screws ( ⑧ ) to remove 2 guide bar retaining-plates ( ⑨ ).

・Detach the mechanical block unit ( ⑩ ) from the mechanical base unit ( ⑤ ), and remove 2 guide

bars ( ⑪ ).

>PC-GF20<

*H1-20060FEx2

*F1-30060FE1

*F1-30060FE1x2

*H1-20060FEx2

*H1-20060FE

①

④

②

③

⑤

⑦

⑨

⑧

⑥

⑩

⑪
