Nikon COOLSCAN V ED - 32. Attach AD-FPC; 33. Front shield plate

VRA53801 - R.3609.A
- A
23 ・
LS-50 -
①
②
③

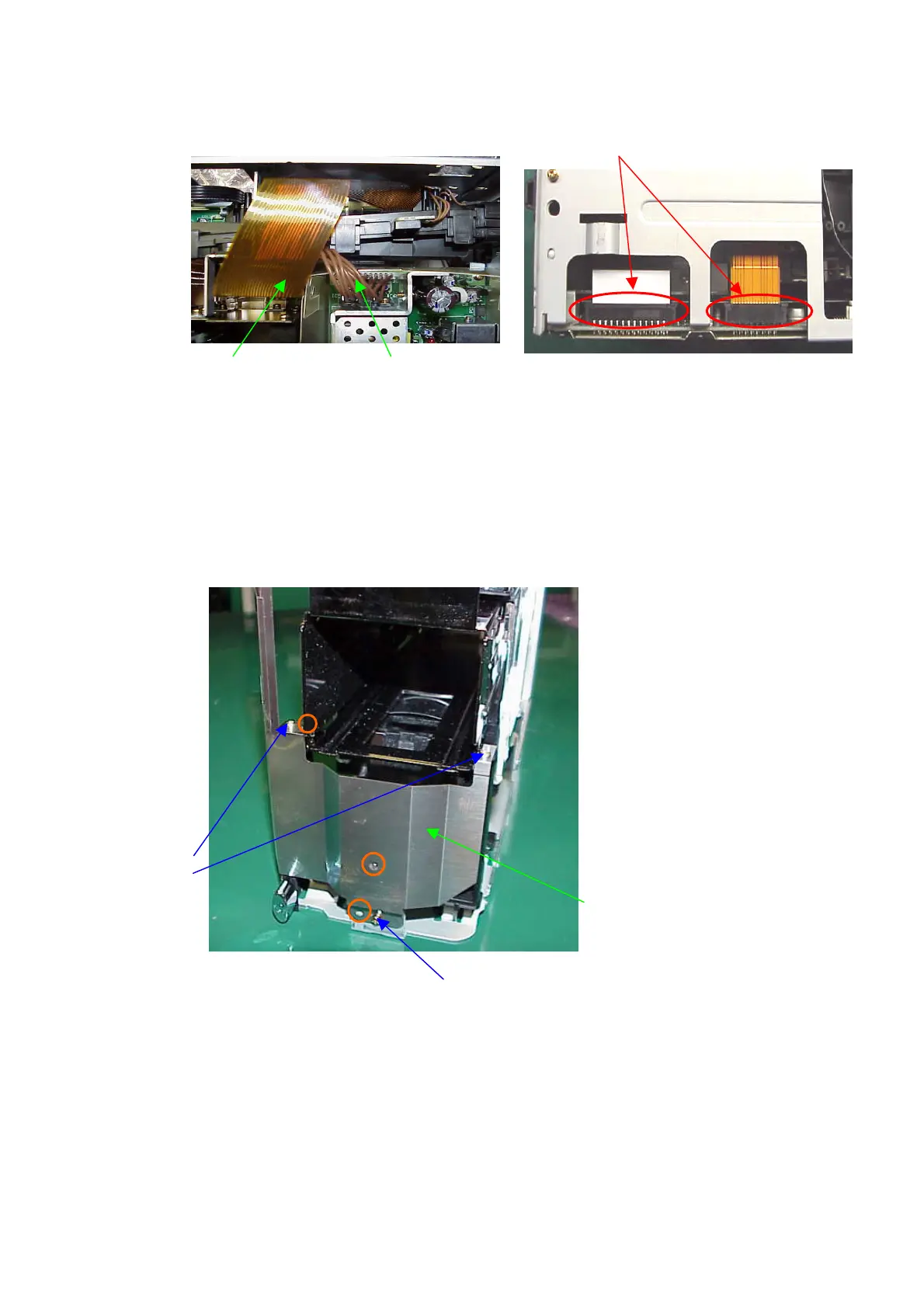

32. Attach AD-FPC
・Pull the 2 AD-FPCs (1) around to place on the power-supply harness (2), and connect them to the
connectors of the main PCB unit (3) respectively.
33. Front shield plate
・Align the bosses of the mechanical base unit (1) with the holes of the front shield plate (2) at the positions
as shown by ( 〇 ) to assemble them.
・Fix the front shield plate (2) with 2 screws (3) and 1 screw (4).
①
③
②
④
