VRA53801-R.3609.A
- D1･ LS-50 -
本体部
Disassembly

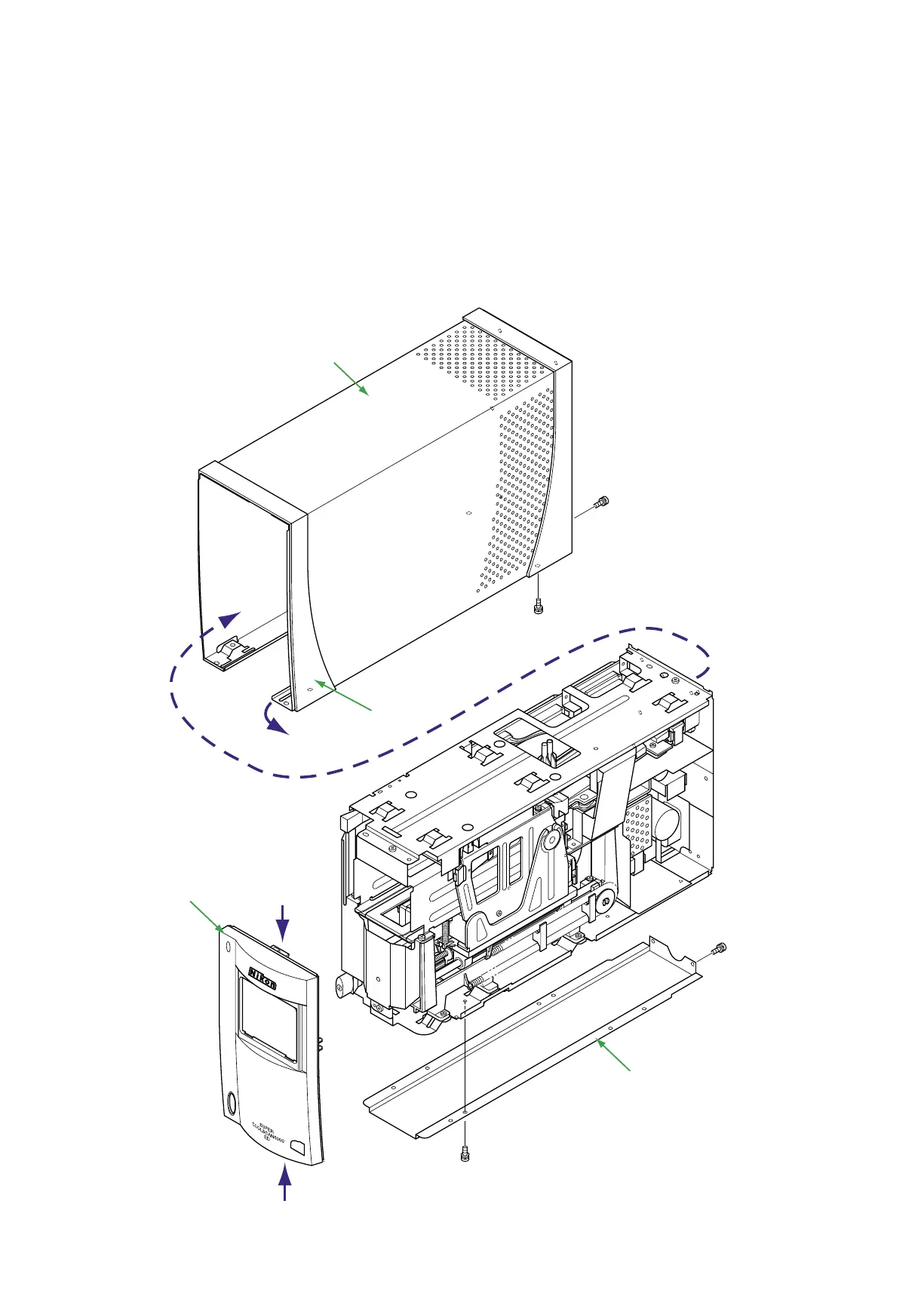

1. External view
・Peel off the rubber foot ( ① ) in the direction indicated by the arrow, then take out 4 screws ( ② ).
・Take out 6 screws ( ③ ).
・Pull the top cover ( ④ ) backwards to remove it from the body unit.
・Take out 4 screws ( ⑤ ) and 2 screws ( ⑥ ) to remove the under-panel ( ⑦ ).
・Unhook the 2 upper and lower claws of the front panel ( ⑧ ) to remove it from the body unit.
