VRA53801 - R.3609.A

- A

5・

LS-50 -

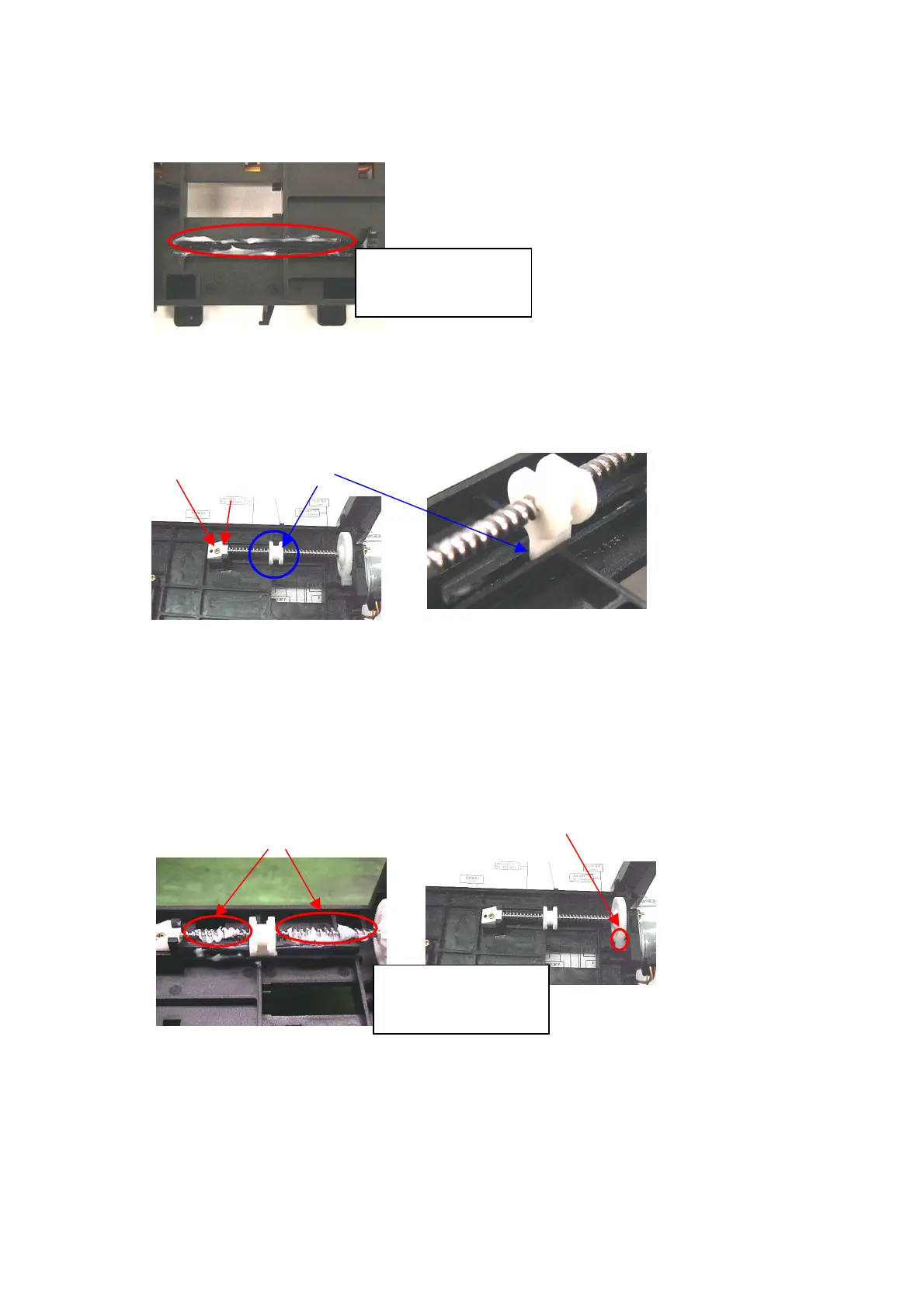

・Apply the grease (Sumitec 331 J67033) on the mechanical base unit (1) at the above ( 〇 ) part.

・Enter the head of nut of the lead screw unit (2) into the groove of the mechanical base unit (1) as shown by

(〇 ), and attach them.

・Attach the lead screw receiver (3) on the mechanical base unit (1).

・Fix the lead screw receiver (3) with the screw (4).

・Apply the grease (Sumitec 331 J67033) to the shafts of the lead screw unit (5) as shown by ( 〇 ).

・Apply the rice-grain sized grease (Sumitec 331 J67033) to ( 〇 ) part between the motor gear of the

mechanical base unit (6).and the lead screw unit.

①

②

③ ④ ②

⑤

Apply grease

Sumitec 331

①

Apply grease

Sumitec 331

⑥
