Nikon COOLSCAN V ED - Page 48

VRA53801 - R.3609.A
- A
28 ・
LS-50 -
⑤
⑤
⑤
⑤
④

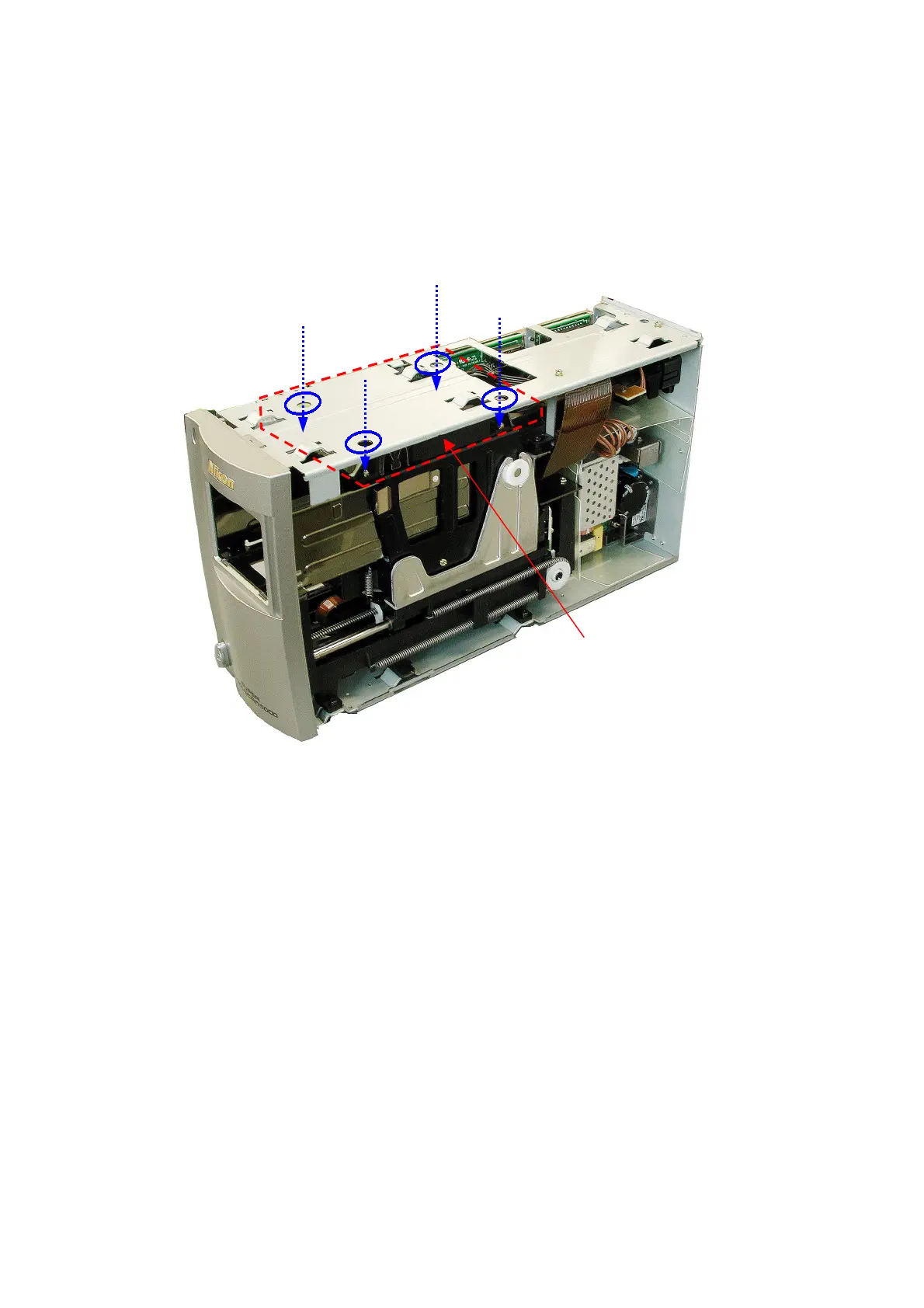

6) Loosen 4 screws (5) of the illumination base assembly (4), and by adjusting the position of the
illumination base assembly (4), make an adjustment to meet the standard of 5).
7) Tighten 4 screws (5) to complete.
