Nokia N96 Service Manual

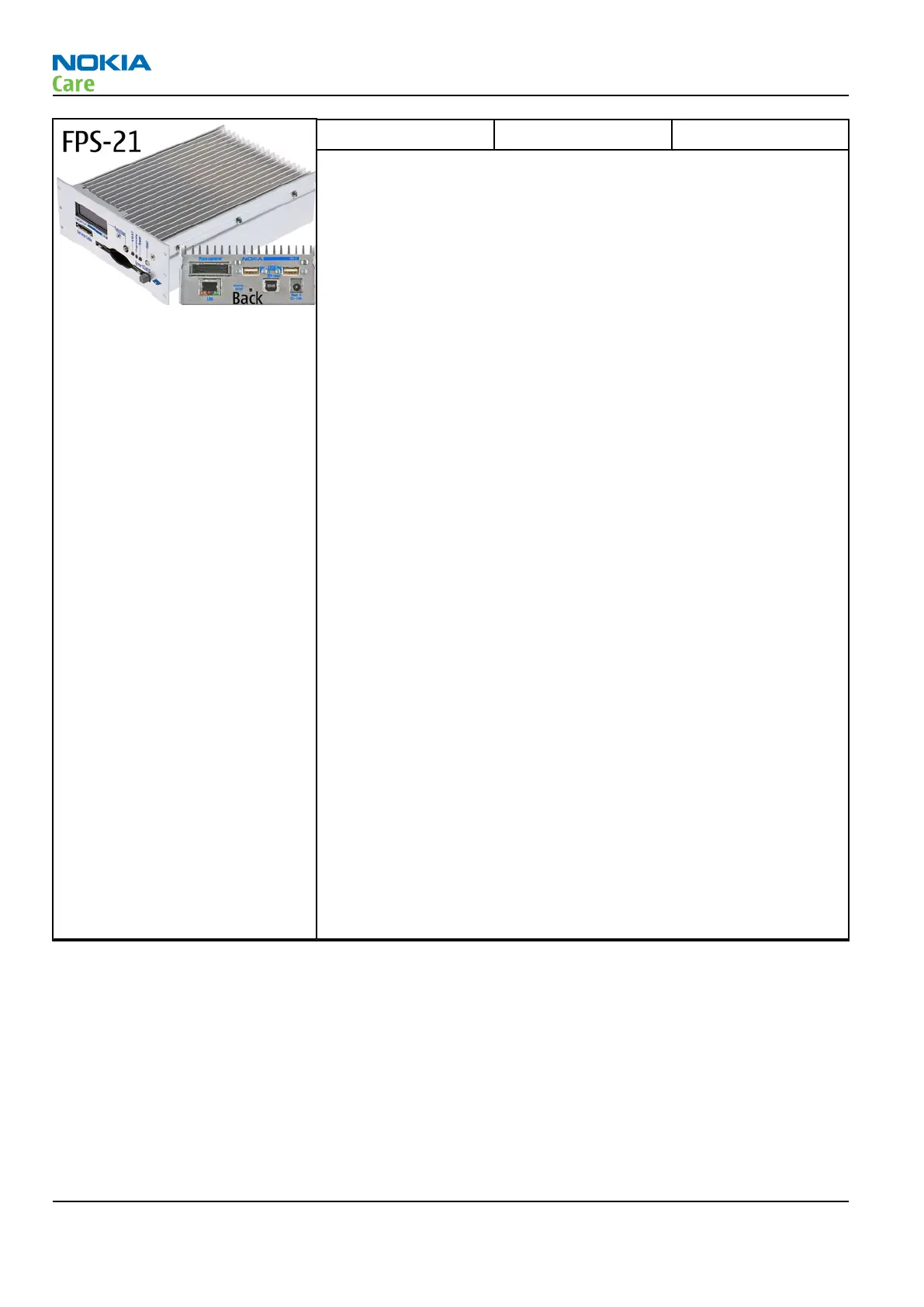

FPS-21 Flash prommer
FPS-21 sales package:
• FPS-21 prommer
• AC-35 power supply
• CA-31D USB cable
FPS-21 interfaces:
Front
• Service cable connector
Provides Flashbus, USB and VBAT connections to a mobile device.
• SmartCard socket
A SmartCard is needed to allow DCT-4 generation mobile device
programming.
Rear
• DC power input
For connecting the external power supply (AC-35).
• Two USB A type ports (USB1/USB3)
Can be used, for example, for connecting external storage memory
devices or mobile devices
• One USB B type device connector (USB2)
For connecting a PC.
• Phone connector
Service cable connection for connecting Flashbus/FLA.
• Ethernet RJ45 type socket (LAN)
For connecting the FPS-21 to LAN.
Inside
• Four SD card memory slots
For internal storage memory.
Note: In order to access the SD memory card slots inside
FPS-21, the prommer needs to be opened by removing the
front panel, rear panel and heatsink from the prommer body.
Note: FPS-10 can be used for flashing instead of FPS-21 if
necessary.
RM-247
Service Tools and Service Concepts
Page 2 –8 COMPANY CONFIDENTIAL Issue 1
Copyright © 2008 Nokia. All rights reserved.

Nokia N96 Specifications

General

Panel type	TFT
Display diagonal	2.8 \
Display resolution	240 x 320 pixels
Display number of colors	16.78 million colors
Internal memory	16 MB
Front camera type	Single camera
Rear camera resolution	2592 x 1944 pixels
USB 2.0 ports quantity	1
Multimedia Messaging Service (MMS)	Multimedia Messaging Service (MMS) is a standard way to send messages that include multimedia content to and from a mobile phone over a cellular network
Audio formats supported	AAC, eAAC+, MP3, WMA
Image formats supported	EXIF
Ringer type	Polyphonic
Form factor	Slider
Product color	Gray
Talk time (2G)	150 h
Battery capacity	950 mAh
Standby time (2G)	200 h
Continuous audio playback time	14 h
Continuous video playback time	5 h
2G standards	HSCSD
Data network	wcdma
Bluetooth version	2.0+EDR

Weight and Dimensions

Depth	20 mm
Width	55 mm
Height	103 mm
Weight	125 g
