Nokia N96 Service Manual

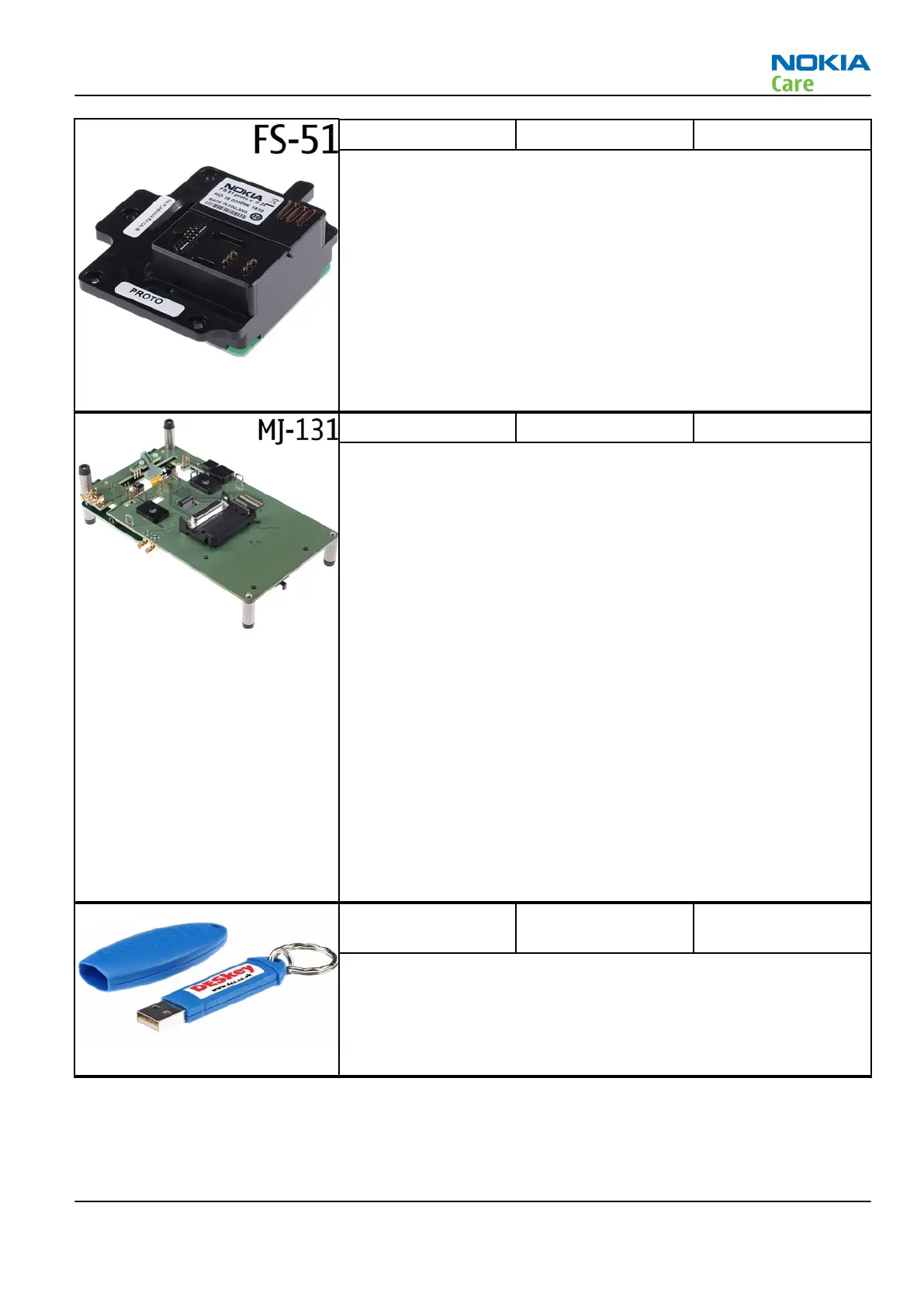

FS-51 Flash adapter
Flash adapter FS-51 is used for phone testing and flashing. FS-51 is
used with the generic flash adapter base SS-60/62 and control unit
CU-4 or interface adapter SS-46.
When flashing or system testing the phone, the adapter is attached to
replace the phone own battery.
All functions (as well as the calibration voltages, current and the
protections for over voltages, over current and voltage polarity), are
performed by CU-4.
Flash adapter FS-51 main features:
• VBATT supply interface
• USB / FBUS multiplexed interface to the phone
MJ-131 Module jig
MJ-131 can be used for flashing as well as for RF, battery and system
testing.
MJ-131 main functions:
• CU-4 interface adapter to phone
• FBUS interface to phone
• UI Interface to phone
• WCDMA and GSM RF-interface
All functions are performed in CU-4 e.g. calibration voltages and
currents both all protections (over current, over voltage and voltage
polarity).
MJ-131 contains following interfaces to phone:
• VBATT interface
• UI interface containing Display connector
• WCDMA and GSM RF interfaces
• Bluetooth RF interface
• Earpiece interface
• IHF speaker interface
• Microphone interface
PK-1 Software protection
key
PK-1 is a hardware protection key with a USB interface. It has the same
functionality as the PKD-1 series dongle.
PK-1 is meant for use with a PC that does not have a series interface.
To use this USB dongle for security service functions please register
the dongle in the same way as the PKD-1 series dongle.
RM-247
Service Tools and Service Concepts
Issue 1 COMPANY CONFIDENTIAL Page 2 –9
Copyright © 2008 Nokia. All rights reserved.

Nokia N96 Specifications

General

Panel type	TFT
Display diagonal	2.8 \
Display resolution	240 x 320 pixels
Display number of colors	16.78 million colors
Internal memory	16 MB
Front camera type	Single camera
Rear camera resolution	2592 x 1944 pixels
USB 2.0 ports quantity	1
Multimedia Messaging Service (MMS)	Multimedia Messaging Service (MMS) is a standard way to send messages that include multimedia content to and from a mobile phone over a cellular network
Audio formats supported	AAC, eAAC+, MP3, WMA
Image formats supported	EXIF
Ringer type	Polyphonic
Form factor	Slider
Product color	Gray
Talk time (2G)	150 h
Battery capacity	950 mAh
Standby time (2G)	200 h
Continuous audio playback time	14 h
Continuous video playback time	5 h
2G standards	HSCSD
Data network	wcdma
Bluetooth version	2.0+EDR

Weight and Dimensions

Depth	20 mm
Width	55 mm
Height	103 mm
Weight	125 g
