Nortel 2245 - Page 21

Overview Page 21 of 206
WLAN IP Telephony Installation and Configuration

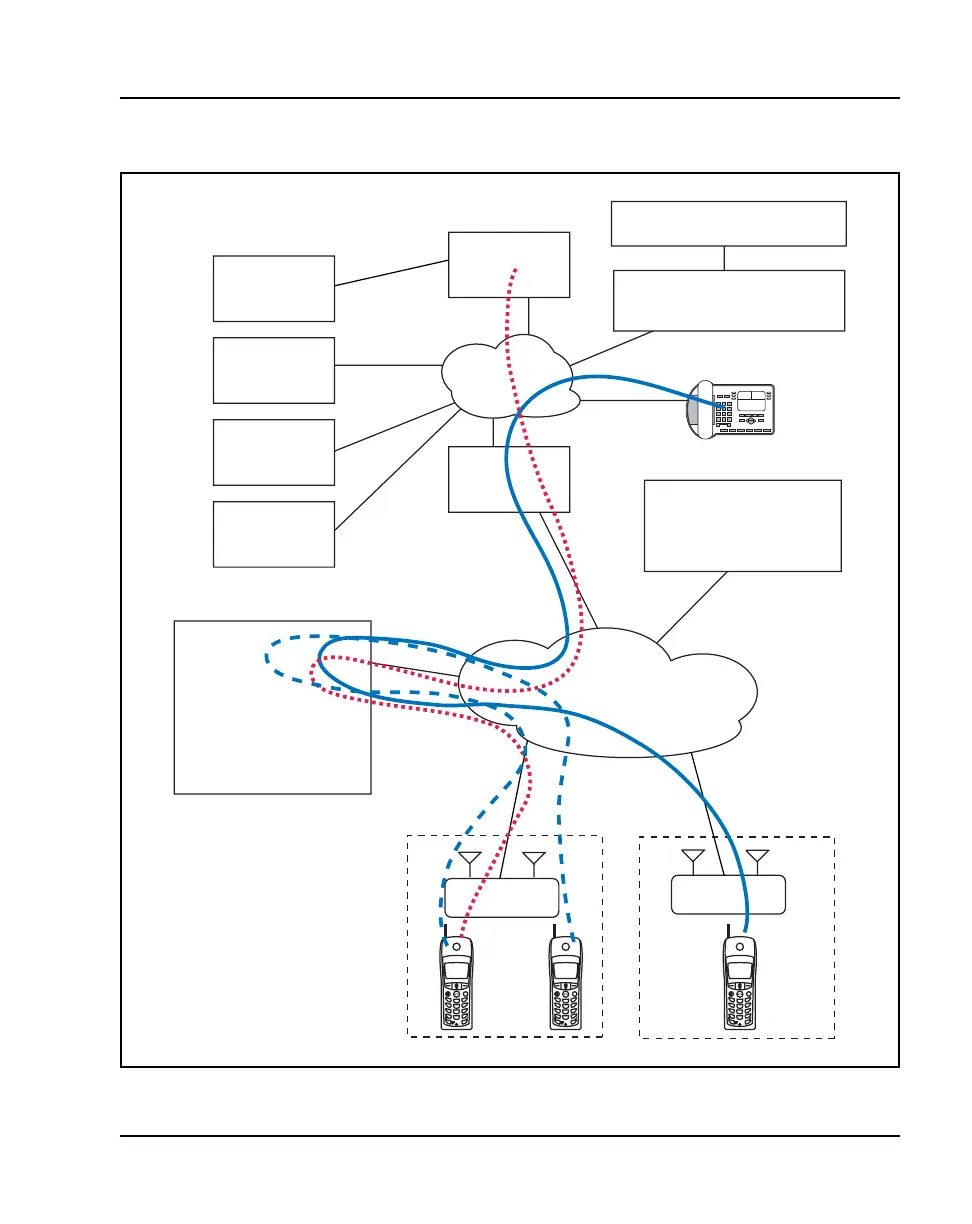

Figure 1
Typical wireless telephone network configuration
#
ABC
DEF
GHI
JKL
MNO
PQRS
TUV
WXYZ
CR
*
1
2
3
4
5
6
7
8
9
0
PHILIPS
SOS
i
#
ABC
DEF
GHI
JKL
MNO
PQRS
TUV
WXYZ
CR
*
1
2
3
4
5
6
7
8
9
0
PHILIPS
SOS
i
#
ABC
DEF
GHI
JKL
MNO
PQRS
TUV
WXYZ
CR
*
1
2
3
4
5
6
7
8
9
0
PHILIPS
SOS
i
Subnet A
WLAN IP Telephony
Manager 2245
Subnet B
WLAN IP Telephony
Manager 2245
Syslog
Server
Application Server
WLAN Application
Gateway 2246
LTPS
IP Network
Firewall
Call
Server
TFTP
Server
DHCP
Server
Wireless IP Network
Access Point
Access Point
