Page 38 of 206 Planning
553-3001-304 Standard 3.00 September 2004

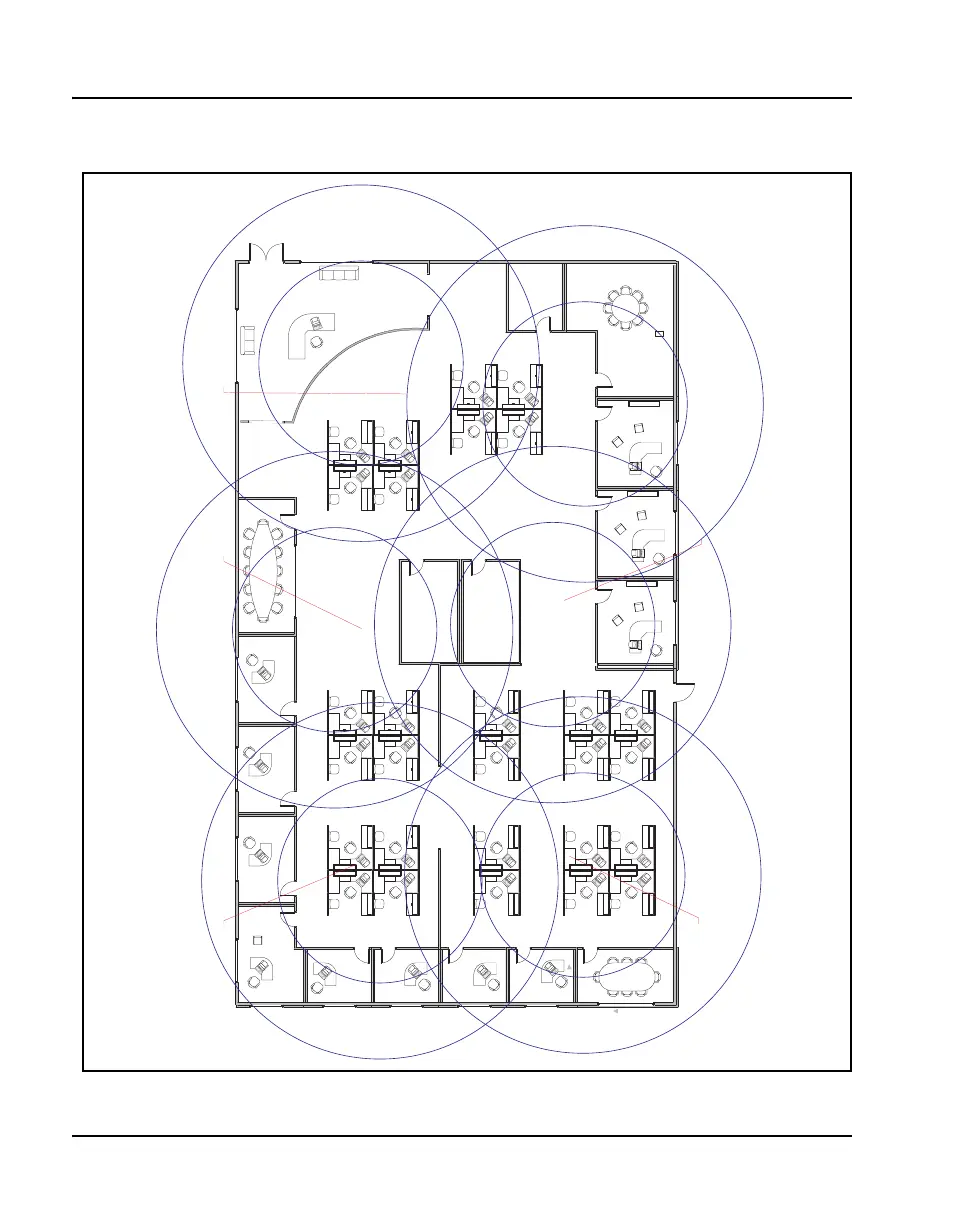

Figure 3
Sample AP placement diagram
18'-0"
10'-0"
Training Room
Break Room
Men
Women
Meeting Room
Computer Room
Reception
Microwave
802.11b Preliminary Wireless
Site Plan
Cell “D” = Channel 1 w/11 Clients Cell “B” = Channel 6 w/15 Clients Cell “A” = Channel 1 w/9 Clients
Cell “C” = Channel 11 w/6 Clients
Cell “E” = Channel 6 w/19 Clients
553-AAA1447
