Page 78 of 206 WLAN IP Telephony Manager 2245 configuration
553-3001-304 Standard 3.00 September 2004

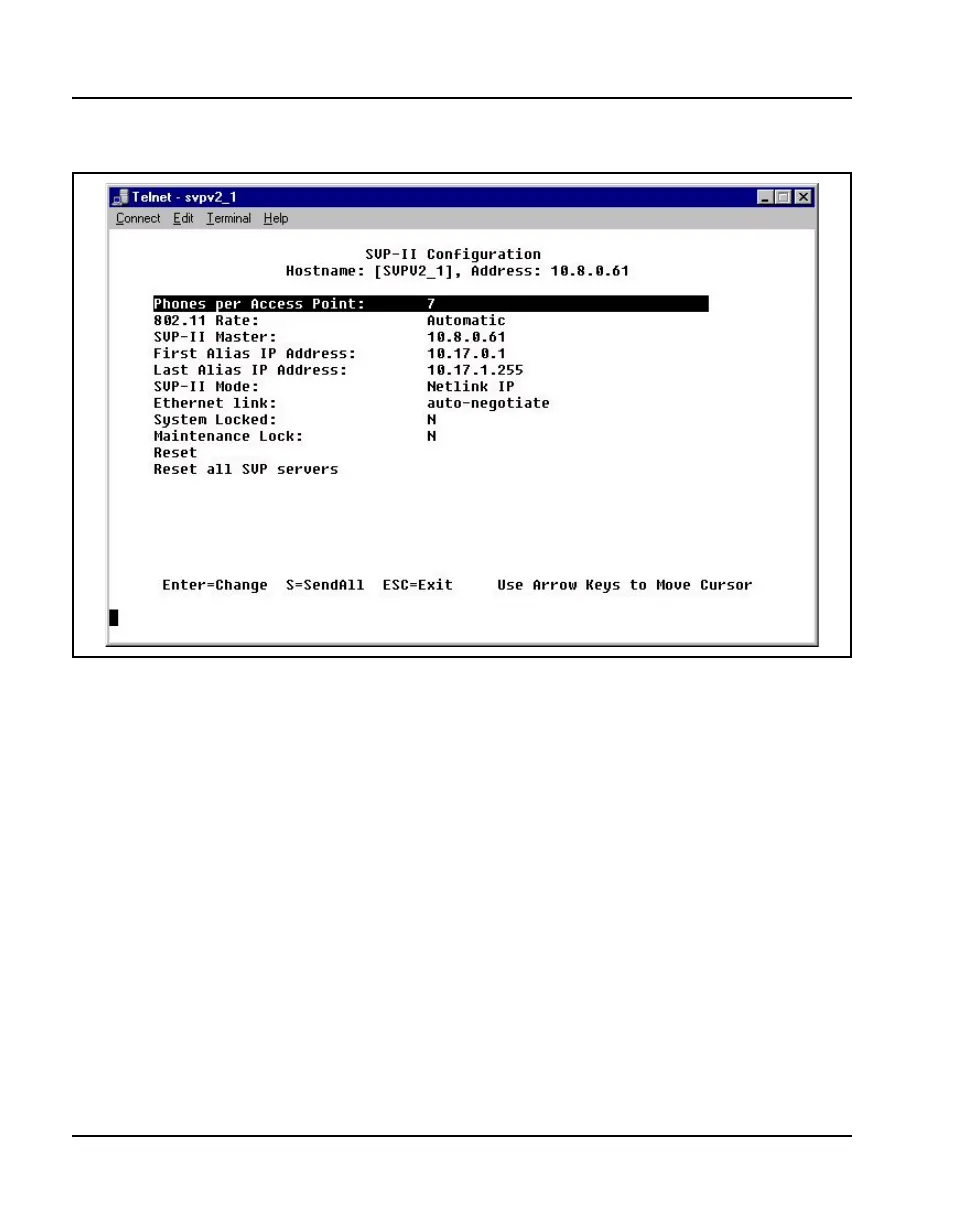

Figure 8
SVP-II Configuration screen
• Phones per Access Point – enter the number of simultaneous calls
supported for the AP type. AP specifications are described in
Appendix B: “Compatible Access Points” on page 197.
• 802.11 Rate – select Automatic to allow the wireless handset to
determine its rate (up to 11Mb/s). Select 1MB/2MB to limit the
transmission rate between the wireless handsets and APs.
• SVP-II Master – the IP address of the master of the WLAN IP
Telephony Manager 2245 group must be identified. Select one of the
following identification options:
— Enter the IP address of the master of the WLAN IP Telephony
Manager 2245 in each WLAN IP Telephony Manager 2245 group.
Include the periods used in the IP address.
