Programming Menu Options for Programming
32 NCS Manual PN 51095:B1 3/08/02
Events and Command files will be activated automatically when the event happens. Separate event
files can be set up for:
• Alarm and Pre-alarm events.
• Supervisory and Security events.
• Trouble events.
• System Reset, Signal Silence and Acknowledge commands.
• Alter Status Commands (which include enabling or disabling a device and turning a module on and off).
• All Systems Normal (a message that can be invoked when the system returns to an all systems normal state).
If a higher priority event interrupts a lower priority event, the current voice message will be halted,
and the new voice message will be started.

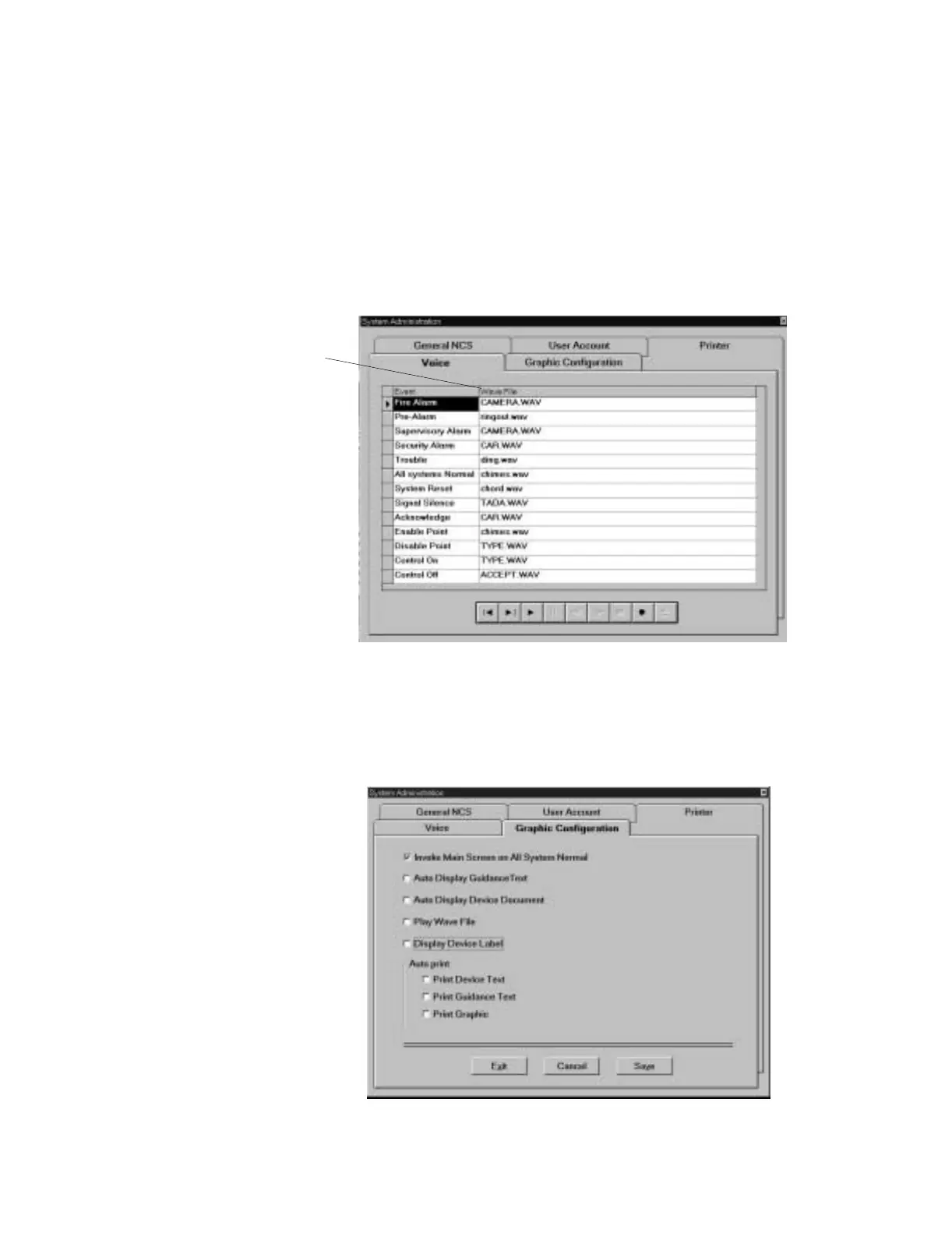

Figure 2.25 Voice Tab
Graphic Configuration Tab
Under this tab the user can invoke the main screen on all systems normal, auto display guidance
text, auto display device document, play wave files, display device labels, and also print device and
guidance text and the graphic itself. Click in a box in order to put a check in the category you
would like to display or print. Refer to Figure 2.26 .
Figure 2.26 Graphic Configuration Tab
ncsvoice.tif
To select a wave file
for an event, select
under the Wave File
directory. A drop-
down menu will
supply the user with
available wave files.
graphicstab.tif
