Programming Menu Options for Programming
34 NCS Manual PN 51095:B1 3/08/02
Node Access
Double-clicking on a particular node in the network system window displays the initial read status
menu, if read status is supported by that node. If it is not, an error message will be displayed, refer
to Figure 2.29.

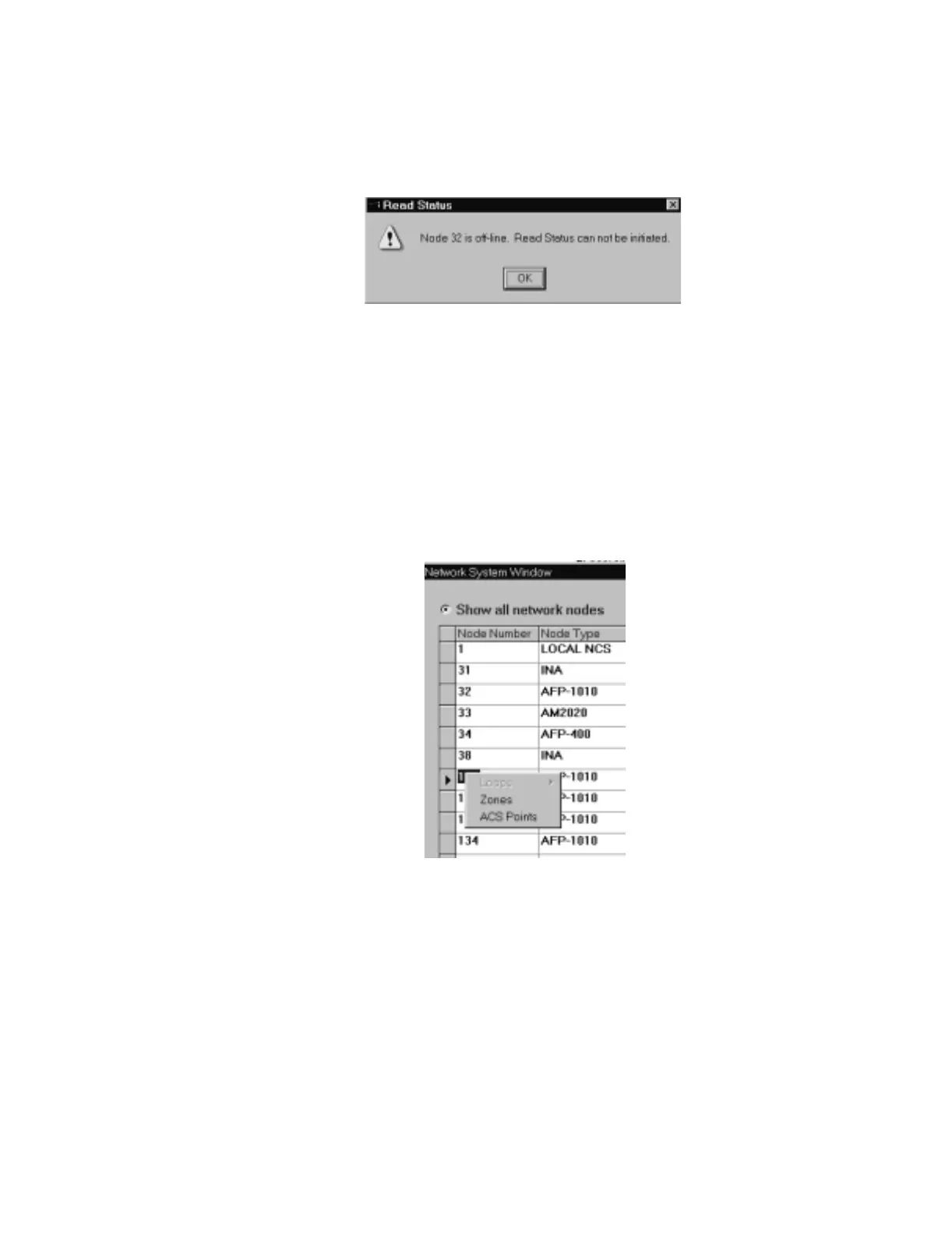

Figure 2.29 Node Access Error Message
From the initial read status menu, the user can now select further read status, alter status and
programming operations. Double-click on the local NCS for a display of the local setting for the
NCS.
In addition, right clicking on a node in the network system window opens the Read Database
Menu, from which the user can choose to view loop, zone, or device information. This information
is displayed in a spread sheet type format, and is read-only. The information is obtained from the
database which is stored on the NCS. Refer to Figure 2.30.
NOTE: THIS INFORMATION IS ONLY UPDATED DURING UPLOAD AND READ STATUS COMMANDS, AND THEREFORE MIGHT NOT
BE UP-TO-DATE.
Figure 2.30 Read Database Menu
nodemess.tif
rdatamen.tif
