Operation Alarms
40 NCS Manual PN 51095:B1 3/08/02
Figure 3.4 Alarms Reported to the NCS
Select Acknowledge to acknowledge that an alarm has been reported. The alarm will then be
shown in the Acknowledged Events window, see Figure 3.5. Select Signal Silence to silence
NAC’s, and select Reset to reset the control panel.

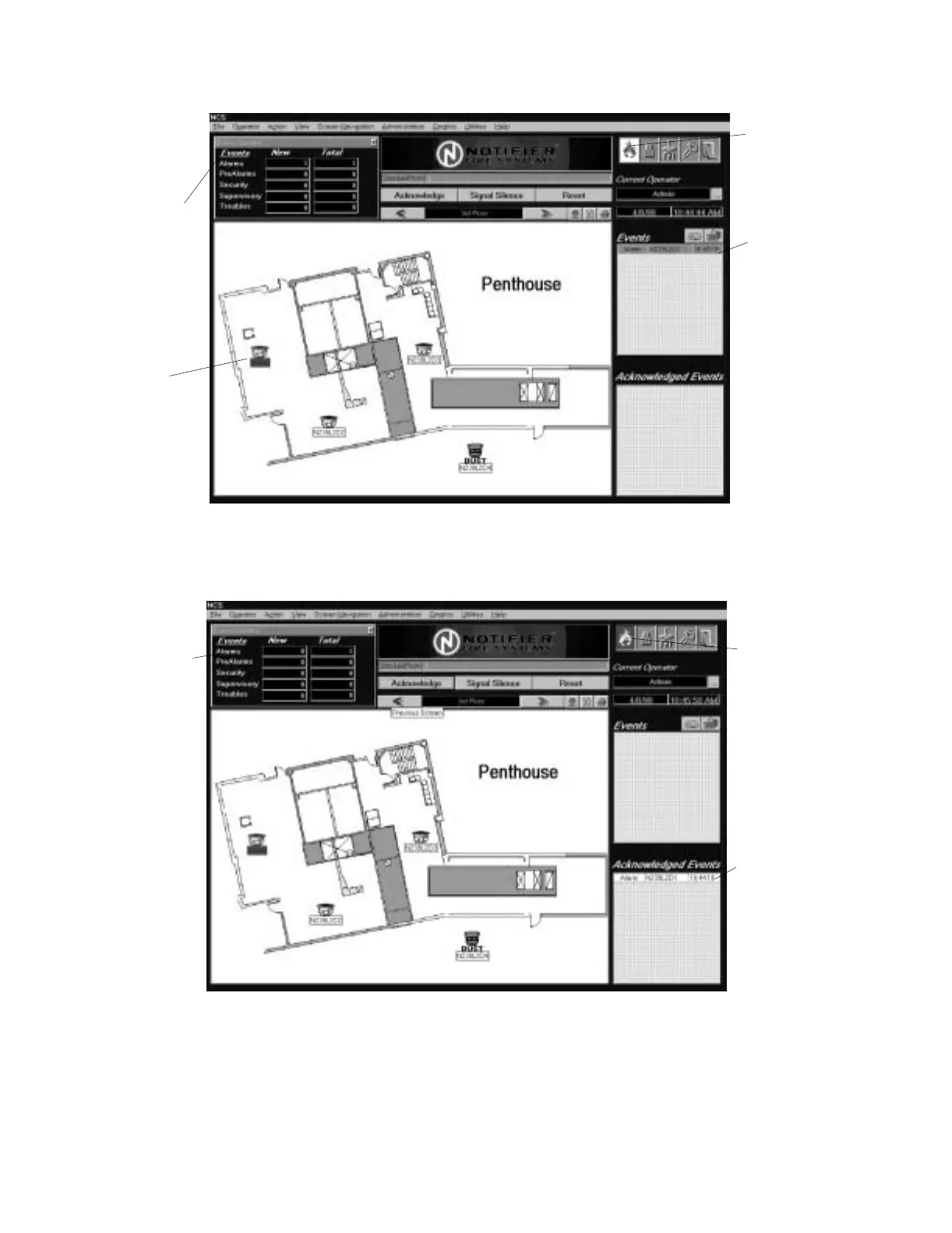

Figure 3.5 Acknowledging Alarms on the NCS
Alarm reported
in the Events
Counter Box
under New and
Total categories.
Alarm icon
flashing in the
Banner area.
Alarm reported
in the Events
window.
Detector
showing the
reported alarm
Alarm reported
in the Events
Counter Box
under the Total
category.
Alarm icon
stops flashing in
the Banner area.
Alarm moves to
the Acknowledge
Events window.
